Dell Optiplex 960 Motherboard Y958C
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDELLOPT0Y958C
Brand Dell Computers
Part Number Y958C 0Y958C CN-0Y958C
Compatible Models Dell Optiplex 960 Series
Category Intel Lga775 Motherboards
Condition Like New Grade A
Description

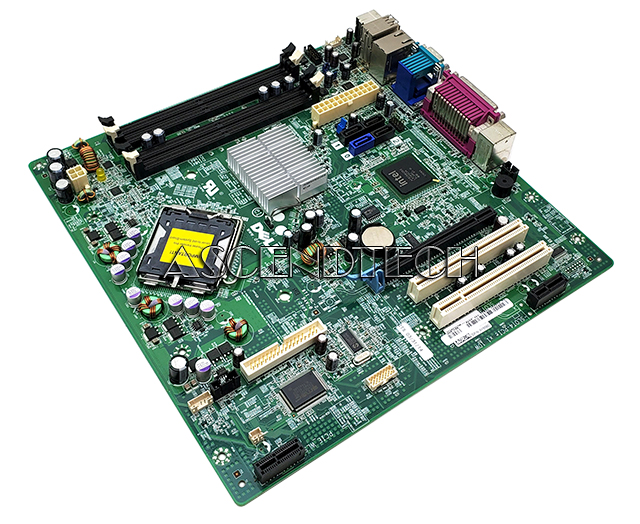

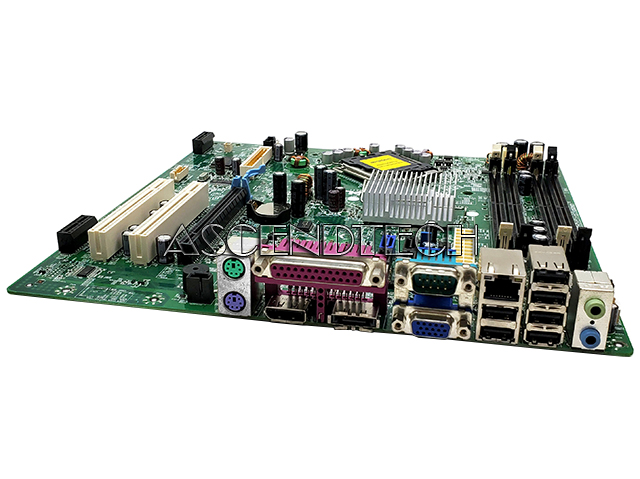

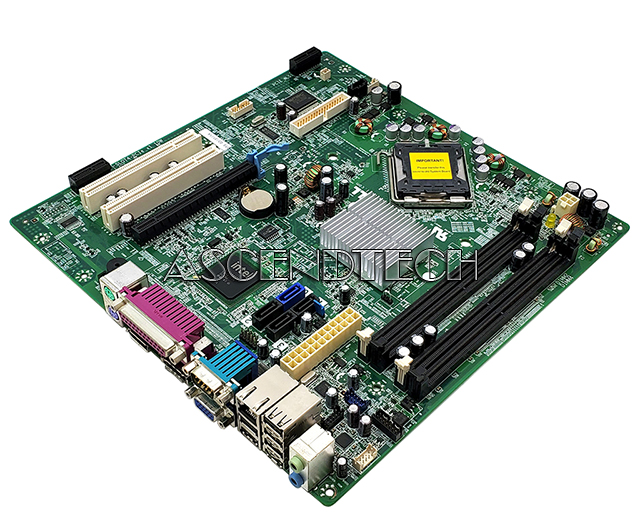

Dell Optiplex 960 Series Intel LGA775 Socket Desktop Motherboard Y958C 0Y958C CN-0Y958C.
Chipset: North Bridge: Intel Q45, South Bridge: Intel ICH10
Socket: LGA 775
Max Supported Memory: 8GB
Number of Memory Slots: 4
Memory Type: DDR2 DIMM
Pins: 240-pin
Speed: 800 MHz
Video Chipset/GPU Model: Intel GMA 4500
Network/Communications: Intel 82567LM
Audio: ADI 1984A – High Definition
Connectors: 4x SATAII 3Gb/s, 1x Clear CMOS jumper, 1x Password Reset, 1x 5-pin CPU Fan Connector, 1x 4-pin ATX 12V Power Connector, 1x 24-pin ATX Power Connector, 1x Intrusion Switch Connector, 1x Battery socket (3V), 1x Front Panel header, 1x Serial Connector, 1x Floppy header
Input/Output Ports: 6x USB 2.0, 2x PS/2, 1x DisplayPort, 1x RJ45 LAN, 1x Serial, 1x Parallel, 1x Audio I/O, 1x VGA, 1x eSATA
Expansion Slots: 1x PCI Express x16, 1x PCI Express x1, 1x Wireless Card connector, 2x PCI,
