Dell Optiplex GX260 Motherboard 2X378
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Description

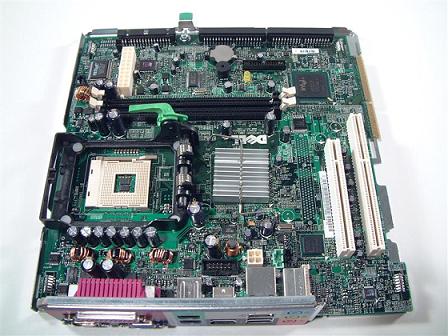

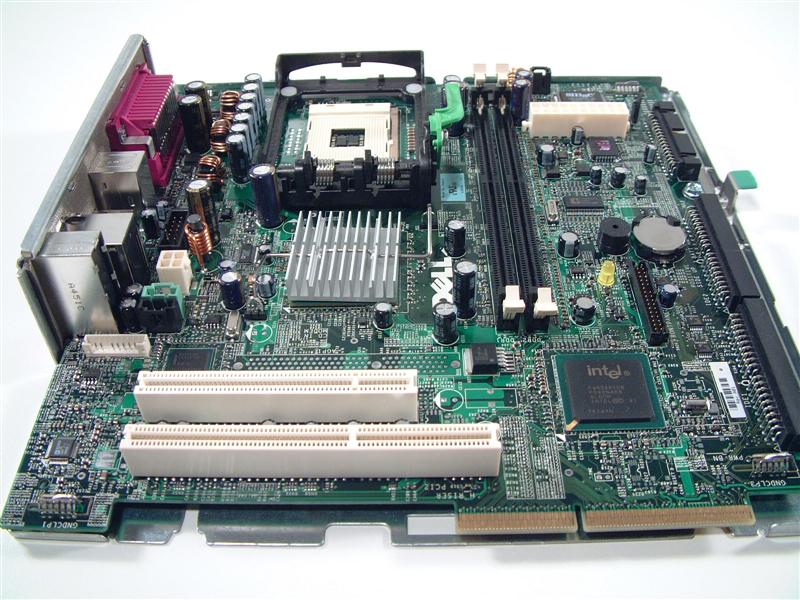

Dell OptiPlex GX260 Intel Pentium 4 Motherboard Model: 2X378. This desktop board brings exciting new levels of performance and features to the desktop. These boards are Intel made boards for Dell, so you will see a Dell logo come up when booted. All boards are fully guaranteed and come with warranty.
Specifications:
Manufacturer: Dell / Intel
Compatibility: For Dell Optiplex GX260 / 610D
Part Number: 0T606 00T606 GX 260 / 2X378
| Microprocessor type | Intel® Pentium® and Celeron® |
| Level 1 (L1) cache | 8 KB |
| Level 2 (L2) cache | 1.50–2.00* GHz processors: 256-KB pipelined-burst, eight-way set-associative, write-back SRAM 2.20–3.06 GHz processors: 512-KB SRAM *Certain 2.00 GHz computers may be upgraded to 512-KB cache. |
| Type | 266 and 333-MHz DDR SDRAM |
| Memory connectors | two |
| Memory capacities | 128-, 256-, 512-MB, and 1-GB non-ECC |
| Minimum memory | 128 MB |
| Maximum memory | 2 GB |
| BIOS address | F0000h |
| Chip set | Intel 845GV |
| Data bus width | 64 bits |
| Address bus width | 32 bits |
| DMA channels | 7 |
| Interrupt levels | 23 |
| BIOS chip | 4-Mb |
| Memory speed | 400- or 533-MHz quad-data rate; 100- or 133-MHz clock (matches external bus speed) |
| NIC | integrated Intel PRO/100 M 10/100 Mbps Ethernet — Intel 82551QM |
| System clock | 400- or 533-MHz data rate |
| Type | AC97, Sound Blaster emulation |
| Stereo conversion | 16-bit analog-to-digital; 20-bit digital-to-analog |
| Bus type | PCI |
| Bus speed | PCI: 33 MHz |
| Expansion-card connectors: | four PCI slots (card sizes = three PCI slots support cards up to 22.9 cm [9 inches] long, and one PCI slot supports cards up to 27.9 cm [11 inches] long. |
| External connectors: | |
Serial | 9-pin connector; 16550C-compatible |
Parallel | 25-hole connector (bidirectional) |
Video | 15-hole connector |
Network adapter | RJ45 connector |
PS/2 (keyboard and mouse) | 6-pin mini-DIN |
USB | two front-panel and four back-panel USB 2.0–compliant connectors |
Audio | three connectors for line-in, line-out, and microphone; one front-panel connector for headphones |
| System board connectors: | |
Primary IDE drive | 40-pin connector on PCI local bus |
Secondary IDE drive | 40-pin connector on PCI local bus |
Floppy drive | 34-pin connector |
CD drive audio interface | 4-pin connector |
Telephony (TAPI) | 4-pin connector |
Fan | 3-pin connector |
