Dell Optiplex GX270 Motherboard U1324

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

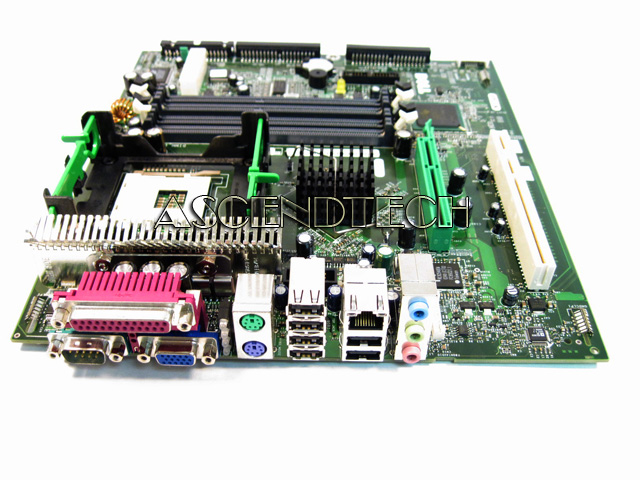

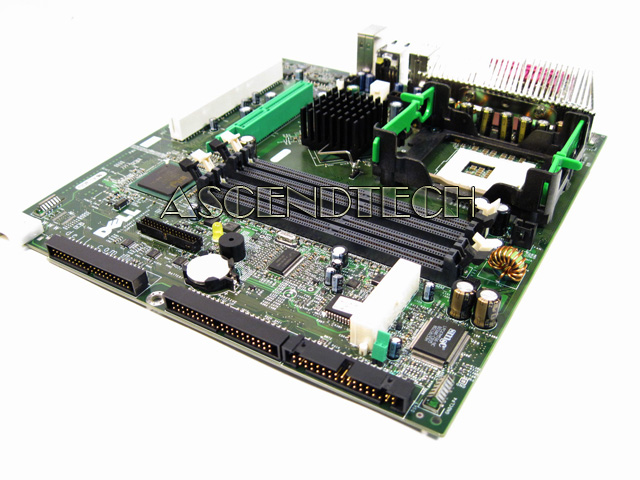

Dell Optiplex Gx270 Motherboard U1324. Model: U1324 R2472 Gx270 Cg566
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DELGX270
Brand Dell Computers
Model U1324 R2472 GX270 CG566
Category Intel P4 / Celeron 478-Pin Motherboards

Description

Online special! Dell Optiplex GX270 Intel® 865 Desktop motherboard harnesses the advanced computing power of the latest Intel Pentium 4 processor supporting Hyper-Threading Technology. Designed for the Intel® 865 chipset, the Desktop Board brings exciting new levels of performance and features to the desktop by combining support for an 800MHz system bus with dual channel DDR400 and native Serial ATA 150 featuring Intel Technology. Because the Desktop Board includes the latest technologies and high-quality integrated components, system builders can realize significant cost savings without sacrificing performance. The features of this new board support an optimal user experience in a broad range of usage models for today’s computer enthusiasts.

Specifications:

Part Number: R2472 0R2472 U1324 0U1324 R6019 0R6019 U8633 0U8633 XF826 0XF826 CG566 0CG566 DG279 0DG279

Gaming: Exceptional gaming experience with Dual-Channel DDR400 support, digital sound, Serial ATA performance capability, stereo microphone input for Voice over IP (VoIP), and up to six USB 2.0 ports for the latest high-speed external peripherals.

Digital music and video: Enhance music and movies with onboard sound, and optimize file transfer with Serial ATA while building media libraries or editing video. Further improve your sound experience with media enhancement technology.

Digital photography: Download photos quickly with USB 2.0 and save them quickly using Serial ATA, the latest in hard drive technology.

Form FactormicroATX (9.60 inches by 8.20 inches [233.68 millimeters by 208.28 millimeters])
Processor
  • Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 533/800 MHz system bus
  • Support for an Intel® Celeron® processor in a mPGA478 socket with a 400 MHz system bus from 2.4Ghz+
  • Hyper-Threading Technology Support
Memory
  • Four 184-pin DDR SDRAM DIMM sockets - Dual Channel
  • Support for DDR 400, DDR 333, and DDR 266
  • Support for up to 4 GB of system memory
ChipsetIntel® 865PE Chipset
I/O ControlLPC Bus I/O controller
AudioSound Audio subsystem for AC '97 processing
Video64MB Onboard Plus Universal 0.8/1.5 V AGP 3.0 connector supporting 1x, 4x, and 8x AGP cards or an AGP Digital Display (ADD) card
Peripheral Interfaces
  • Six USB 2.0 ports
  • One serial port
  • One parallel port
  • One 10/100 network port
  • One Serial ATA IDE interfaces
  • Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One Floppy FDD diskette drive interface
  • PS/2 keyboard and mouse ports
Expansion CapabilitiesOne PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
One AGP Slot supporting 1x, 4x, and 8x AGP cards
