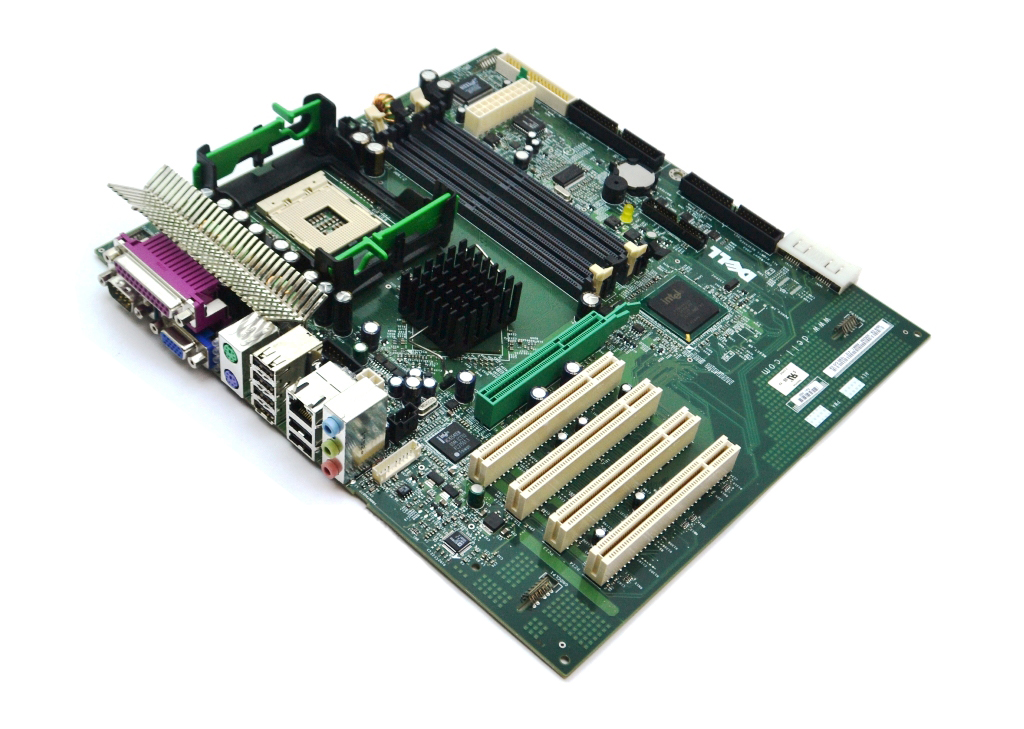

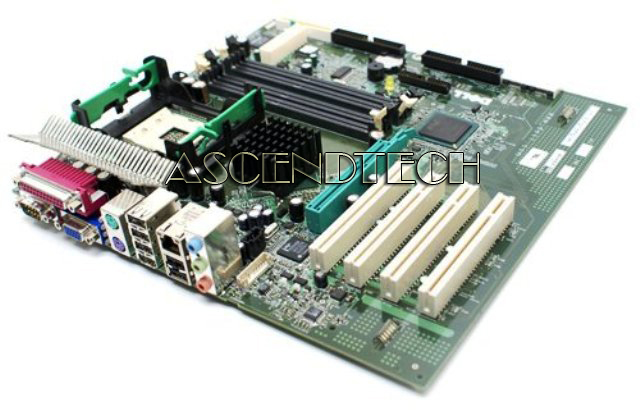

Dell Optiplex GX270 Motherboard YF927

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Dell Optiplex Gx270 Motherboard Yf927
Dell Optiplex Gx270 Motherboard Yf927
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB4DELGX2704
BrandDell Computers
Part NumberH1290 FG015 DG284 FG022
CategoryIntel P4 / Celeron 478-Pin Motherboards
Condition DescriptionMotherboard does not include CDs or Manuals

Description

Dell Optiplex GX270 Motherboard. Dell Compatible Part# K5786 U1325 Y1057 YF927 H1487 H1290 FG015 DG284 FG022 FG009 K2863 XF824 CG611 X9294. The Intel® Desktop Board harnesses the advanced computing power of the latest Intel Pentium 4 processor supporting Hyper-Threading Technology. Designed for the Intel® 865 chipset, the Desktop Board brings exciting new levels of performance and features to the desktop by combining support for an 800MHz system bus with dual channel DDR400 and native Serial ATA 150 featuring Intel Technology. Because the Desktop Board includes the latest technologies and high-quality integrated components, system builders can realize significant cost savings without sacrificing performance. The features of this new board support an optimal user experience in a broad range of usage models for today’s computer enthusiasts.

Dell Compatible Part# K5786 U1325 Y1057 YF927 H1487 H1290 FG015 DG284 FG022 FG009 K2863 XF824 CG611 X9294

Form FactorATX
Processor
  • Support for an Intel® Pentium® 4 processor in a mPGA478 socket with a 533/800 MHz system bus
  • Support for an Intel® Celeron® processor in a mPGA478 socket with a 400 MHz system bus from 2.4Ghz+
  • Hyper-Threading Technology Support
Memory
  • Four 184-pin DDR SDRAM DIMM sockets - Dual Channel
  • Support for DDR 400, DDR 333, and DDR 266
  • Support for up to 4 GB of system memory
ChipsetIntel® 865PE Chipset
I/O ControlLPC Bus I/O controller
AudioSound Audio subsystem for AC '97 processing
Video64MB Onboard Plus Universal 0.8/1.5 V AGP 3.0 connector supporting 1x, 4x, and 8x AGP cards or an AGP Digital Display (ADD) card
Peripheral Interfaces
  • Six USB 2.0 ports
  • One serial port
  • One parallel port
  • One 10/100 network port
  • One Serial ATA IDE interfaces
  • Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
  • One Floppy FDD diskette drive interface
  • PS/2 keyboard and mouse ports
Expansion CapabilitiesFour PCI bus add-in card connectors (SMBus routed to PCI bus connector 2)
One AGP Slot supporting 1x, 4x, and 8x AGP cards
