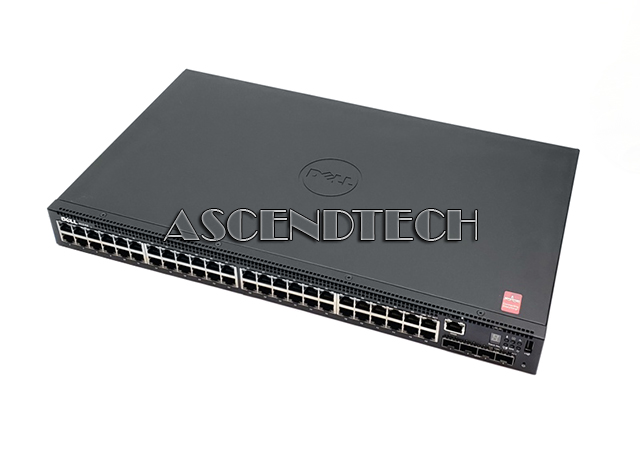

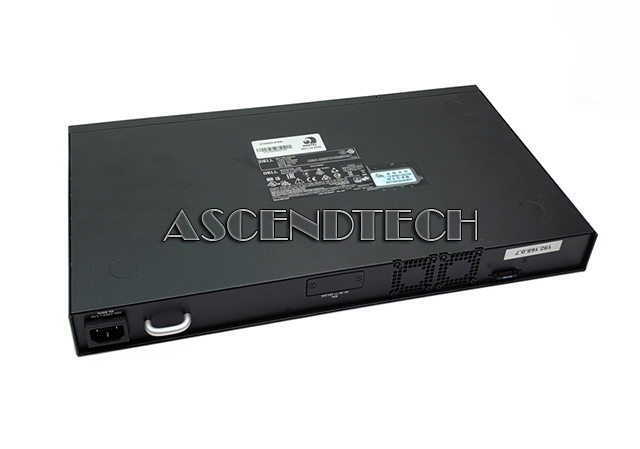

Dell PowerConnect N1548 Switch V143P

Dell PowerConnect N1548 48x 10/100/1000 4x 10 Gigabit SFP+ Port Ethernet Managed Network Switch V143P 0V143P CN-0V143P.

Model: PowerConnect N1548
Dell Part Number: V143P 0V143P CN-0V143P
Compatible Part Numbers: E15W
Includes: Power Cable and RJ-45 to DB-9 Cable.







Features:

Subtype: Gigabit Ethernet
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
MAC Address Table Size: 16000 entries
Encryption Algorithm: MD5, AES, SSL, TLS
Routing Protocol: RIP-1, RIP-2, static IPv4 routing, static IPv6 routing







Specifications:

Capacity:
Type: ACL
Value: 100
Type: ARP entries
Value: 1024
Type: IPv4 routes (dynamic)
Type: IPv4 routes (static)
Value: 256
Type: IPv6 routes (static)
Value: 128
Type: MAC addresses
Value: 16000
Type: Max ACL rules system-wide
Value: 2048
Type: Maximum ACL rules per interface (IPv4) egress rules
Type: Maximum ACL rules per interface (IPv4) ingress rules
Type: Maximum ACL rules per interface (IPv6) egress rules
Value: 509
Type: Maximum ACL rules per interface (IPv6) ingress rules
Type: Maximum dynamic ports per switch stack
Value: 144
Type: Maximum member ports per LAG
Type: Maximum rules per ACL
Value: 1023
Type: Maximum VLAN interfaces with ACLs applied
Value: 24
Type: NDP entries
Value: 400
Type: Priority queues per port
Value: 8
Type: Virtual interfaces (VLANs)
Value: 512
Type: VLAN routing interfaces

Environmental Parameters:
Max Operating Temperature : 113 °F
Max Storage Temperature : 149 °F
Min Operating Temperature : 32 °F
Min Storage Temperature : -40 °F

Flash Memory:
Installed Size : 256 MB

RAM:
Installed Size: 1 GB

Interface Provided:
Comments : Management
Qty : 1
Type : Serial (RS-232)
Connector Type : RJ-45
Qty : 48
Type : Gigabit LAN
Connector Type : SFP+
Qty : 4
Type : 10Gbit LAN
Connector Type : Type A
Type : USB
Qty : 2
Type : Network stack device

Miscellaneous:
Authentication Method : RADIUS, Secure Shell (SSH), TACACS+
Color Category : Black
Compliant Standards : CCC Class A, cUL, EAC, FCC Class A certified, GS, ICES Class A, REACH, RoHS, VCCI Class A, WEEE
Encryption Algorithm : AES, MD5, SSL, TLS
Height (Rack Units) : 1
Rack Mounting Kit : Included

Networking:
Advanced Switching : Layer 2+
Features : Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Broadcast Storm Control, Front to back airflow, Port mirroring, Redundant fans
Form Factor : Rack-mountable
MAC Address Table Size : 16000 entries
Manageable : Yes
Ports Qty : 48
Remote Management Protocol : Telnet, TFTP
Routing Protocol : RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Stackable : Stackable
Subcategory : Network hubs and switches
Subtype : Gigabit Ethernet
Type : Switch

Performance:
Type : Forwarding performance
Value : 164 Mpps
Type : Switching fabric bandwidth
Value : 176 Gbps

Ports:
48x 10/100/1000
4x 10 Gigabit SFP+

Power Device:
Installed Qty: 1
Power Consumption Operational: 44.6 Watt
Power Provided: 100 Watt
Type: Internal power supply
