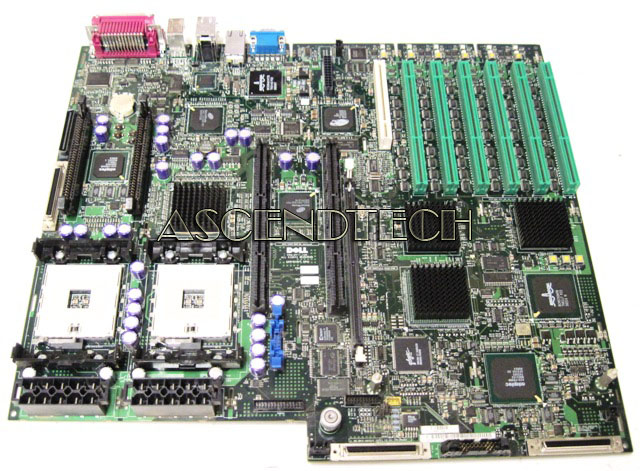

Dell Poweredge 4600 6X778 Motherboard

Dell PowerEdge 4600 Series G3990 System Server Motherboard. Dell meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Dell Part Number: G3990 0G3990 CN-0G3990
Dell Compatible Part: 584VF 0584VF 0584VF 2R636 02R636 CN-02R636 F0058 0F0058 CN-0F0058 6X778 06X778 CN-06X778 H3009 0H3009 CN-0H3009
H6266 0H6266 CN-0H6266
Compatible Models: Dell PowerEdge 4600 Series

The system board supports the following features:

• Intel Dual S.603 P4 Xeon 400Mhz FSB

• A minimum of 512 MB of system memory, upgradeable to a maximum of 12 GB by installing combinations of 128-MB, 256-MB, 512-MB, or 1-GB registered PC-1600 double data rate (DDR) memory modules, grouped in sets of four, into the twelve sockets on the two memory cards.

• Support for up to ten 1-inch, internal, hot-pluggable Ultra3 SCSI hard drives (eight 1-inch hard drives via a 1x8 SCSI backplane board, and support for two 1-inch hard drives via an optional 1x2 SCSI backplane board). An optional daughter card provides support for a 2x4 split backplane.

• Up to four hot-pluggable, 300-W power supplies in a 3+1 redundant configuration.

• Six redundant, hot-pluggable system cooling fans.

• A diskette drive.

• An IDE CD drive.

• Seven PCI slots located on the system board. PCI slots 2 through 7 are hot-pluggable 64-bit, 100- or 66-MHz slots. Slots 2 through 7 also support PCI-X functionality. Slot 1 is a 32-bit, 33-MHz slot that can be used for the optional DRAC III or other PCI-compatible options.

• An integrated VGA-compatible video subsystem with an ATI RAGE XL video controller. This video subsystem contains 8 MB of SDRAM video memory (nonupgradable). Maximum resolutions are 1600 x 1200 x 65,000 colors (noninterlaced). In 1280 x 1024-pixel, 1024 x 768-pixel, 800 x 600-pixel, and 640 x 480-pixel resolutions, 16.7 million colors are available for true-color graphics.

• One embedded dual-channel Ultra3 SCSI controller and one embedded Ultra2 SCSI controller.

• An optional onboard ROMB is activated by using a 128-MB cache memory module, a RAID key, and RAID battery which can support RAID levels 0, 1, 5, and 10.

• Two integrated NICs (one 10/100 and one 10/100/1000), which provide an Ethernet interface.

• Server management circuitry that monitors operation of the system fans as well as critical system voltages and temperatures. The server management circuitry works in conjunction with the server agent.
