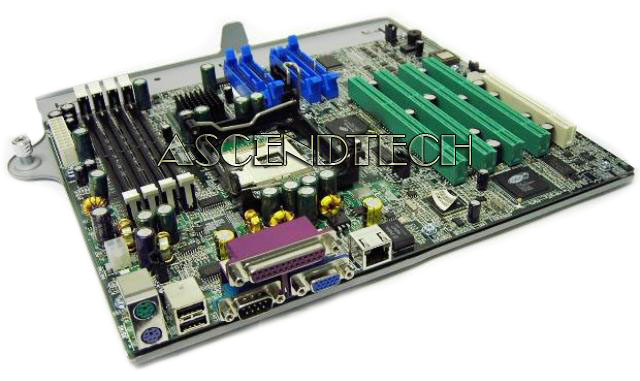

Dell PowerEdge 600SC Motherboard 5Y002
Actual product may vary.
Description
Dell PowerEdge 600SC Motherboard 5Y002. Dell Part# 5Y002 05Y002 6R040 06R040 J3717 0J3717 - The Intel board harnesses the advanced computing power of the latest Intel processor supporting Hyper-Threading Technology.
These boards are Intel made boards for Dell, so you will see a Dell logo come up when booted. All boards are fully guaranteed and come with warranty. This board is compatible to the Dell PowerEdge 600SC system.
Manufacturer: Intel ( OEM for Dell PowerEdge 600SC Motherboard )
Dell Compatible Part: 5Y002 05Y002 6R040 06R040 J3717 0J3717 G4548 0G4548
Specifications:
Microprocessor type | Support for an Intel® Pentium® 4 microprocessor with a minimum internal operating frequency of at least 2 GHz |
Front side bus speed | 400 MHz |
Internal cache | 512-KB (Pentium 4) or 128-KB (Celeron) Level 2 cache |
Expansion Bus | |
Bus type | PCI |
Expansion slots | four 64-bit, 33-MHz slots and one 32-bit, 33-MHz slot |
Memory | |
Architecture | 72-bit ECC PC-200 DDR SDRAM |
Memory module sockets | four |
Memory module capacities | 128, 256, 512 MB, or 1 GB |
Minimum memory capacity | 128 MB |
Maximum memory capacity | 4 GB |
Ports and Connectors | |
Serial (DTE) | 9-pin connector |
Parallel | 25-pin connector |
Video | 15-pin connector |
PS/2-style keyboard | 6-pin mini-DIN connector |
PS/2-compatible mouse | 6-pin mini-DIN connector |
USB | two USB-compliant 4-pin connectors |
NIC | RJ45 connector for integrated NIC |
Internally accessible: | |
EIDE channels | three 40-pin EIDE connectors |
Video | |
Video type | ATI Rage XL video controller; VGA connector |
Video memory | 8 MB |
