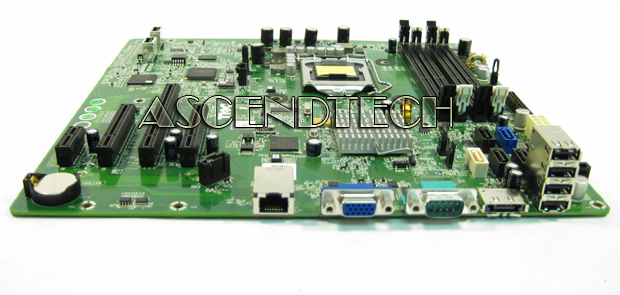

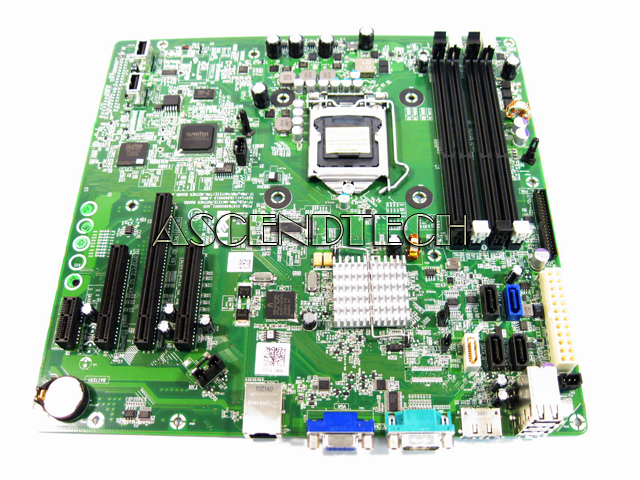

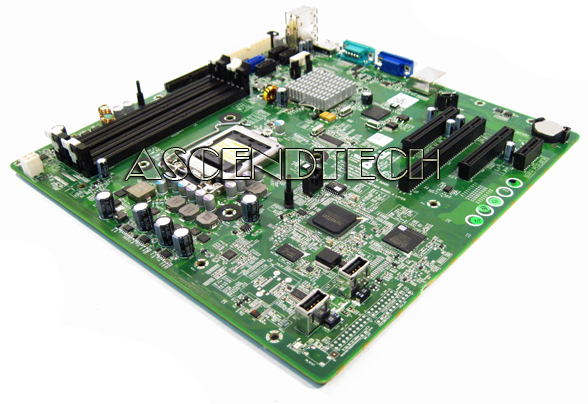

DELL POWEREDGE T110 SERVER MOTHERBOARD

Dell PowerEdge T110 Motherboard X744K. Dell Part# X744K 0X744K - Featuring Intel Chipset LGA1156. The Intel board harnesses the advanced computing power of the latest Intel Core i7 LGA1156 processor supporting Hyper-Threading Technology.

Specifications:

Processor: Intel Xeon Processor 3400 series
Memory sockets: Four 240-pin
Memory capacities: 1 GB, 2 GB, or 4 GB
Minimum RAM: 1 GB
Maximum RAM: 16 GB
Video type: Matrox G200

Back Panel Connectors:
NIC: One RJ-45
Serial: 9-pin, DTE, 16550-compatible
USB: Four 4-pin, USB 2.0-compliant
Video: 15-pin VGA
eSATA: One 7-pin connector

System Board Connectors:
USB Connectors (4)
ESATA Connector
Serial Connector
Video Connector
NIC Connector
System Fan Connector
PCIe X8 Half Length
PCIe X8 Full Length
PCIe X4 Half Length
Battery Socket
PCIe X1 Half Length
Auxiliary Hard Drive LED
Internal USB Key 1 And 2
Processor
Power Connector 12V
DIMM_B1 Memory Module
DIMM_B2 Memory Module
DIMM_A1 Memory Module
DIMM_A2 Memory Module
Control Panel Connector
SATA Drive (3)
SATA Drive/Optical Drive
Power Connector
Intrusion Switch Connector
SATA Optical Drive
Dell Part Number: X744K
