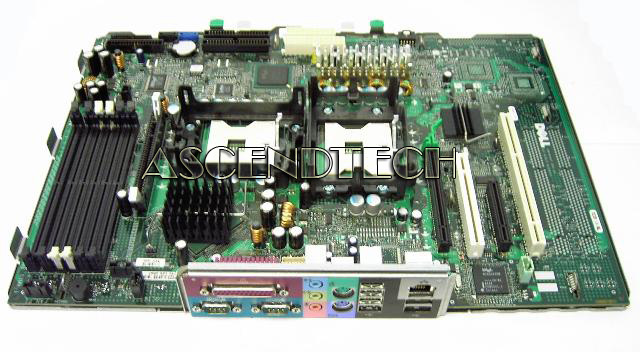

Dell Precision 470 Motherboard C9316

Dell Precision 470 Motherboard. Dell Part# C9316 KG051 XC838 JG455 C9316 - The Intel board harnesses the advanced computing power of the latest Intel Pentium 4 Xeon processor supporting Hyper-Threading Technology.

These boards are Intel made boards for Dell, so you will see a Dell logo come up when booted. All boards are fully guaranteed and come with warranty. This board is compatible to the Precision 470 system.

Manufacturer: Intel ( OEM for Dell Precision 470 )
Dell Compatible Part: C9316 KG051 XC838 JG455 0C9316 0KG051 0XC838 0JG455 C9316

The system board supports the following features:

• 2 x Intel Xeon mPGA604 800Mhz Sockets
• 6 x DIMM Slots Support 512 - 16GB of Dual Channel ECC Registered DDR2 400Mhz SDRAM Memory
• 2 x 9-Pin Serial Connectors
• 1 x 25-Pin Parallel Connector
• 2 x 6-Pin mini DIN PS/2 Keyboard & Mouse Connectors
• 3 x 1/8-Inch Audio Jacks
• 1 x PCI-Express x16 Graphics Slot with Support for 150w Graphics Card
• 1 x 32bit/33Mhz PCI Slot
• 1 x 64bit/100Mhz PCI-X Slot
• 1 x PCI-Express Slot Wired as x4 (2Gb/s) But With A x8 Connector
• Integrated ATA/100 IDE
• Integrated Serial ATA 150MB/s Controller
• Integrated AC'97 Full Duplex Audio
• Integrated Intel 82545GM 64bit PCI-X Gigabit (10/100/1000) Ethernet
