DELL PRECISION T3400 MOTHERBOARD TP412

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

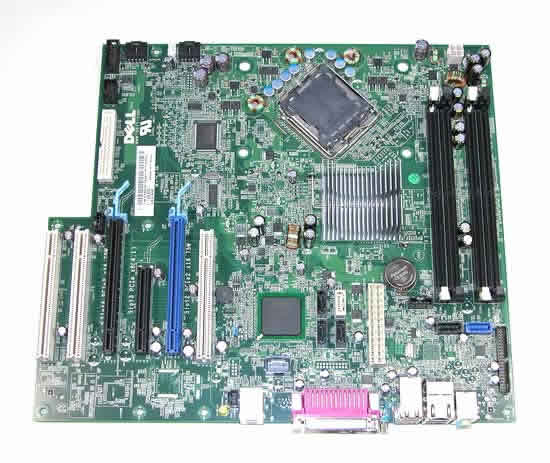

Dell Precision T3400 Motherboard Tp412. Model: Tp412 T3400
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DELPRECT3400
Brand Dell Computers
Model TP412 T3400
Category Intel Lga775 Motherboards

Description

Dell Precision T3400 Workstation Socket LGA775 Motherboard TP412. Dell Precision T3400 workstations is the Intel X38 Express chipset, designed to support the technologies that can open up performance-impacting bottlenecks in primary subsystems. Power users and the application providers who support them have access to more compute power than the previous generation of single socket workstations, enabling them to create, analyze and design better than ever.

Specifications:

Competitable CPU:
  1. Dual-core Intel CoreTM 2 Extreme with 1333MHz FSB, 4MB L2 Cache, XD, VT, EIST
  2. Dual-core Intel CoreTM 2 Duo with 1066MHz FSB, 4MB L2 Cache, XD, VT, EIST
  3. Quad-core Inte CoreTM 2 Quad with 1066MHz FSB, 2x4MB L2 Cache, XD, VT, EIST
Socket: LGA775

Chipset: Intel X38 Express chipset

Memory:
  1. Dual Channel DDR2 SDRAM system memory
  2. Four DIMM slots support up to 8GB dual-channel DDR2 667 or 800MHz non-ECC and ECC memory
Expansion Slots:
  1. 2 PCI-e x16 graphics slots
  2. 1 PCI-e x8 slot wired as x4
  3. 3 PCI 32bit/33MHz slot with support for 5v cards

Back Panel Connectors:

  1. PS/2 Keyboard / Mouse
  2. 6 x USB ports
  3. 1 x Serial
  4. 1 x LAN
  5. 1 x Printer port
  6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
