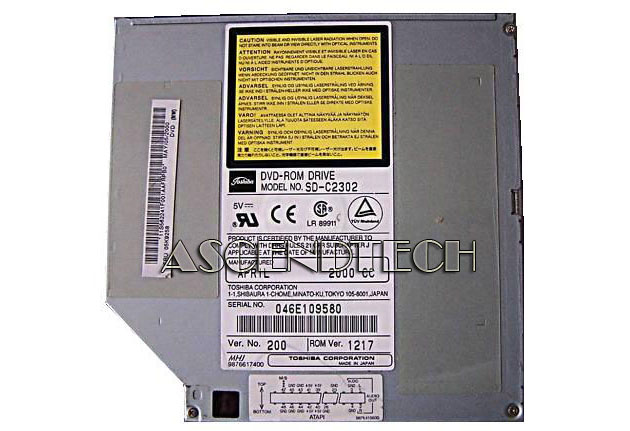

DELL SD-C2302 SLIM DVD-ROM W/OUT BEZEL

Dell SD-C2302 Slim DVD-ROM Optical Drive for Dell Laptop Notebooks and Slim Desktop Computer Systems. Dell DVD-ROM optical drive, with standard half inch design and horizontal and vertical mounting for most system configurations that require a slim optical drive.

Brand: Dell
Manufacturer: Toshiba
Model: SD-C2302
Type: Internal
Interface: IDE
Dell Part Numbers: 8912T 08912T 0008912T


Features:

• 12.7mm Height Internal slim DVD-ROM Drive
• Tray type
• IDE/ATAPI
• Supports reading to CD-ROM and DVD-ROM

* This Optical Drive Does Not Include the Front Bezel / Face. In most instances the original bezel from the old drive can be removed and reused on a new drive.

Specifications:

Name	SD-C2302
DRIVE FEATURES
Internal/External	Internal drive
Disk loading mechanism	Tray load (bare disk)
Data buffer capacity	128 kByte
ROM type	Flash-ROM
Region protection code level (RPC)	RPC-2
SPEED FACTORS
Maximum speed factor CD read (CAV)	From 10.3 x to 24 x
SPEED FACTORS
Maximum speed factor DVD read (CAV)	From 2.5 x to 6 x
SUSTAINED DATA TRANSFER RATE
CD (CAV, Mode 1)	From 1,552 kByte/s to 3,600 kByte/s
CD (CAV, Mode 2)	From 1,769 kByte/s to 4,104 kByte/s
CD (PCAV, Mode 1)	From 600 kByte/s to 855 kByte/s
CD (PCAV, Mode 2)	From 684.4 kByte/s to 975.3 kByte/s
DVD (CAV)	From 3,357 kByte/s to 8,112 kByte/s
BURST DATA TRANSFER RATE
PIO mode 4	16.7 MByte/s
Multiple-word DMA transfer (Mode 2)	16.7 MByte/s
Ultra DMA	33.3 MByte/s
AVERAGE RANDOM ACCESS TIME
CD	95 ms
DVD	120 ms
AVERAGE RANDOM SEEK TIME
CD	90 ms
DVD	100 ms
AVERAGE FULL STROKE ACCESS TIME
CD	160 ms
DVD	180 ms
ROTATIONAL SPEED
CD-ROM (CAV)	5,100 rpm
DVD (CAV)	3,400 rpm
APPLICABLE READ/WRITE FORMATS
Applicable disc formats	CD-ROM CD-ROM XA CD+(E)G CD-DA CD-i CD-i Bridge (Photo-CD) CD-i Bridge (Video-CD) CD-MIDI CD-TEXT CD-R CD-RW Multisession CD-Extra Multisession CD-R Multisession CD-RW Multisession Photo-CD DVD-ROM (DVD-5) DVD-ROM (DVD-9) DVD-ROM (DVD-10) DVD-ROM (DVD-18) DVD-R
MEDIA INFORMATION
Optical disk diameter	120 mm mm 80 mm (usable only in horizontal position of the drive) mm
DATA BLOCK CAPACITY
CD (Mode 1)	2,048 Byte/block
CD (Mode 2)	2,336 Byte/block
DVD-ROM	2,048 Byte/block
DISC CAPACITY
CD (Mode 1)	656.5 MByte
CD (Mode 2)	748.8 MByte
DVD-5	4,377 MByte
DVD-9	7,959 MByte
DVD-10	8,754 MByte
DVD-18	15,917 MByte
MTBF (MEAN TIME BETWEEN FAILURES)
MTBF	60,000 Hours
MTBF ASSUMPTIONS
Power-on hours	5,436 Hours/year
On/off cycles	313 Cycles/year
Number of accesses	600,000 Accesses/year
Operating duty cycle (Read)	20% of Power-on time
VIBRATION
Operating (Read, no hard error)	0.25 G
Non-operating (No damage)	1 G
Shipping (No damage)	1 G
SHOCK
Operating (Horizontal, read, no retry)	1.5 G
Operating (Read, no data loss)	10 G
Non-operating (no disk mounted, no damage)	100 G
EXTERNAL DIMENSIONS
WxHxD	128 x 12.7 x 126.1 mm
CONFIGURATION
Optical pick-up	1-lens/2-laser system. Semiconductor laser and 1-beam system (DVD) Semiconductor laser and 3-beam system (CD)
Laser wave lenghts	DVD: 650 nm CD: 780 nm
Spindle motor	Brushless DC-motor
Feed motor	DC-motor
SOURCE VOLTAGE
Operating	+ 5 V (+/- 5 %)
Start-up	+ 5 V (+/- 8 %)
CURRENT DRAIN
Sleep CD (+ 5V)	45 mA
Sleep DVD (+ 5V)	45 mA
Continuous data read CD (+ 5V)	750 mA
Continuous data read DVD (+ 5V)	640 mA
Average CD (20% random access, + 5V)	750 mA
Average DVD (20% random access, + 5V)	640 mA
Maximum CD (100% random access, + 5V)	830 mA
Maximum DVD (100% random access, + 5V)	800 mA
Peak in executing access CD (+ 5V)	1,250 mA
Peak in executing access DVD (+ 5V)	1,250 mA
POWER CONSUMPTION
Average CD	3.25 W
Average DVD	3.2 W
ANALOGUE OUT
Output level	0.8 V
Type	Unbalanced
Load impedance	47 kOhm
Frequency response	From 20 Hz to 20,000 Hz
Distortion (Percentual)	Max. 0.04 %
Signal-to-noise ratio	80 dB
AUDIO MODES
Audio modes	16 modes including ´Stereo´, ´LCh Mono´, ´RCh Mono´ and ´Mute´ are selectable by command. Default mode is ´Stereo´. 16 steps of attenuation level for the audio output are selectable by command. Default level is 0 dB.
MAINTENANCE AND HANDLING
Optical pick-up head	Optical pick-up: A dirty optical pick-up will degrade the access time. Please do not try to clean it yourself!
Optical media	Optical disk: Try to avoid touching the data area of the disk as dirt and smears will degrade the disk accessing speed. If the disk is dirty, wipe with a soft cloth from the center of the media straight to the outside.
INSTALLATION CONDITIONS
Installation conditions	Horizontal: +/- 15° in both left/right and front/rear directions. Vertical (Eject button to the left): 15° to the left direction. Vertical (Eject button to the right): 30° to the right direction.
DRIVE LIFE
Drive life	15,000 Hours
DRIVE FEATURES
Form factor	Slim-Line
