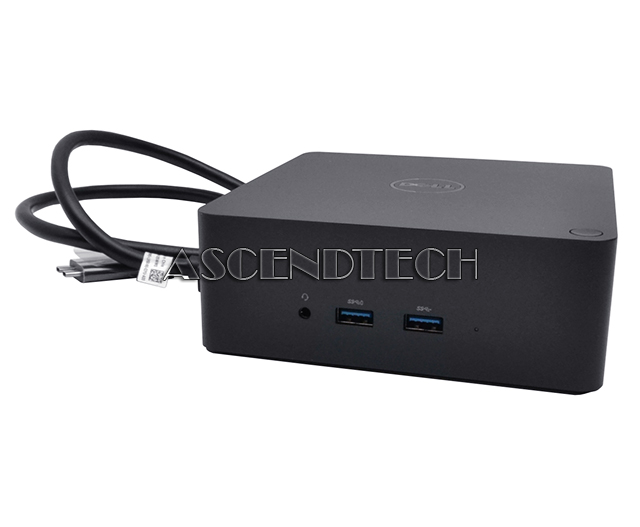

Dell TB18DC 210W Thunderbolt Dock RPWT9

Dell Precision 7530 7730 Workstation Laptops TB18DC 240W PSU Dual USB-C Thunderbolt Dock RPWT9 0RPWT9 CN-0RPWT9. Incredibly powerful Thunderbolt Dock delivers up to 210W. Charge up to 80% of your Precision 7530 or 7730 within an hour, and be fully charged in under two hours with Dell ExpressCharge. You’ll be ready to move at a moment’s notice with plenty of battery backing you up. Includes a 240W Power Adapter.

Dell Part Number: RPWT9 0RPWT9 CN-0RPWT9
Model Number: TB18DC
Compatible Part Numbers: 2RRTM 02RRTM CN-02RRTM 452-BDJF
Compatible Models: Dell Precision 7530 7730 Workstation Laptops







Features:

Lightning fast data transfer speeds
Transfer large files at lightning fast speeds of up to 40Gbps when you connect Thunderbolt storage devices.

One cable for both docking and power
Leave your power brick at home and conveniently plug in one cable to dock and power your laptop. Boost productivity with the ability to connect up to three Full HD displays, or two 4K displays, and Thunderbolt/USB peripherals with a single cable.

Flexible placement with 0.8m cable length
With the flexibility of a long, 0.8m cable length you can place your dock just about anywhere in your workspace.

Most manageable with Dell Business Class features
The dock supports Dell Business Class features which allows for easy manageability. ITDMs will be able to remotely troubleshoot, manage systems, and secure dock ports.

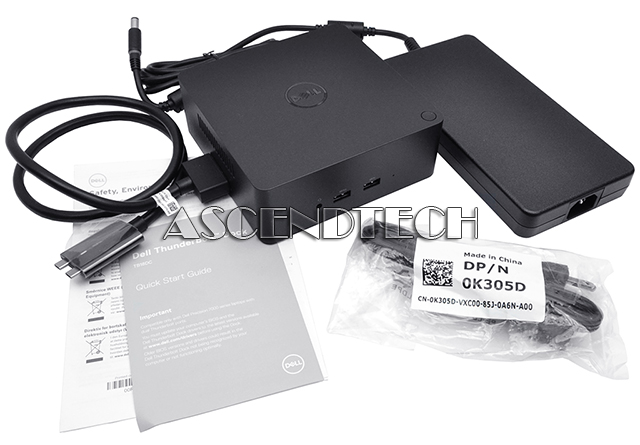

Includes:

- 1x Dell 240 Watt PSU 0MFK9 00MFK9 CN-00MFK9
- 1x Power Cord K305D 0K305D CN-0K305D

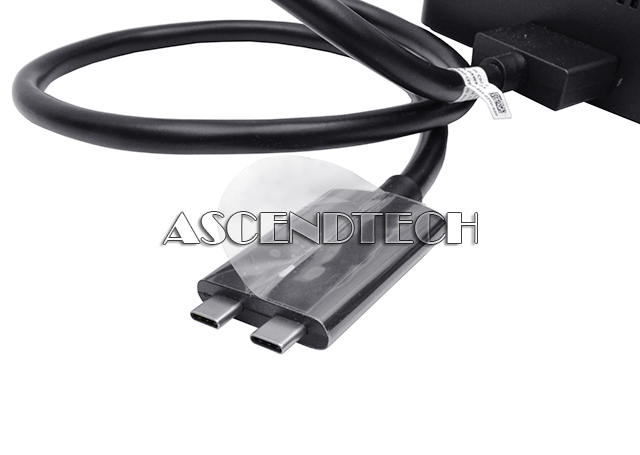

- 1x Dual USB-C Thunderbolt Cable 5WKM3 05WKM3 CN-05WKM3
- 1x Dell TB18DC Thunderbolt Dock 2RRTM 02RRTM CN-02RRTM
- Manuals with Documentation and Setup











Specifications:

Docking Interface: USB-C / Thunderbolt 3
Video Interfaces: VGA, HDMI, DP, Mini DP, Thunderbolt
Dimensions (WxDxH): 5.7 in x 5.7 in x 2 in
Networking: Gigabit Ethernet
Power adapter: 240 Watts AC 100/240V ~ 3.5A (50/60 Hz)
Power Provided: 210 Watts

Networking
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity

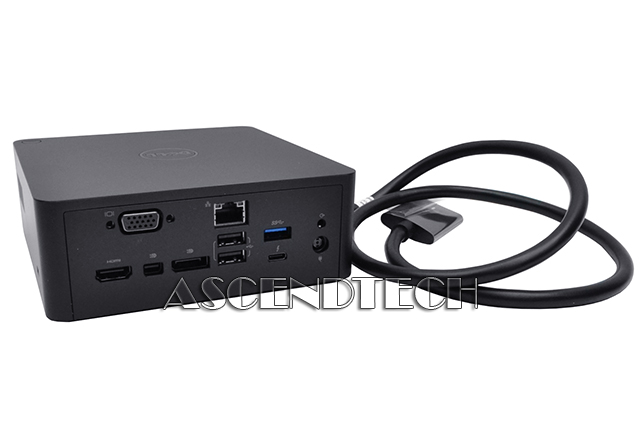

Interfaces
- 2 x USB 2.0 - 4 pin USB Type A
- 2 x SuperSpeed USB 3.0 - 9 pin USB Type A
- 1 x SuperSpeed USB 3.0 with PowerShare - 9 pin USB Type A
- 1 x display / video - HDMI - 19 pin HDMI Type A
- 1 x display / video - DisplayPort - 20 pin DisplayPort
- 1 x display / video - DisplayPort - Mini DisplayPort
- 1 x video - VGA - 15 pin D-Sub (DB-15)
- 1 x network - RJ-45
- 1 x speakers - output - mini-phone 3.5 mm
- 1 x Thunderbolt 3 - Thunderbolt - 24 pin USB-C
- 1 x headset - output - mini-phone 3.5 mm

Compatible Slots
- 2 x USB 3.1 / Thunderbolt 3

Compatible OS
Microsoft Windows 7 / 8 / 8.1 / 10, Red Hat Enterprise Linux 7.2, Ubuntu Linux 16.04
