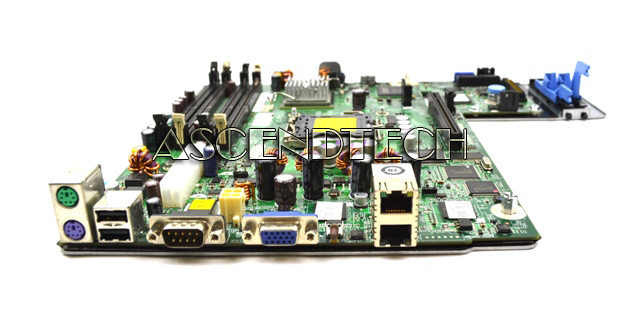

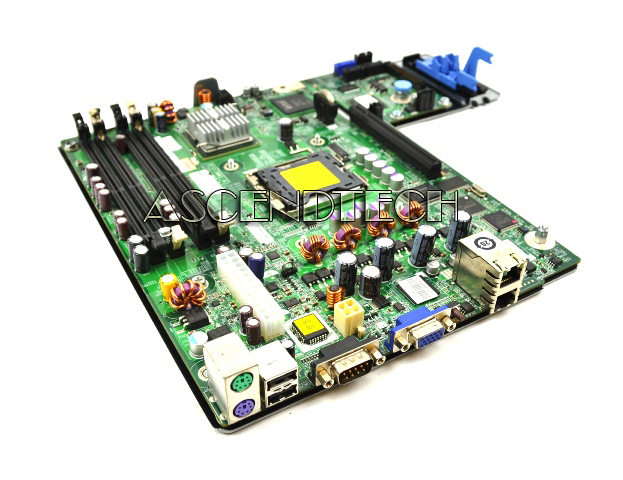

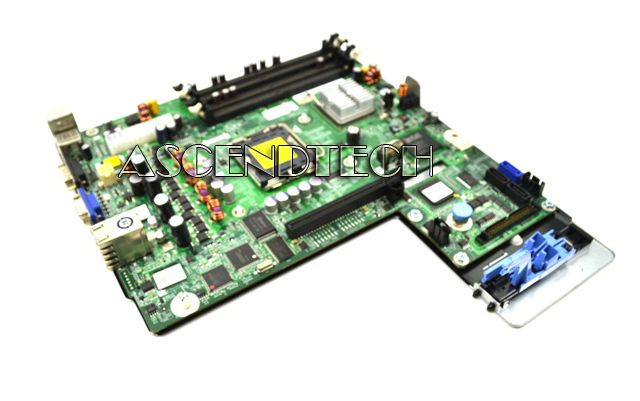

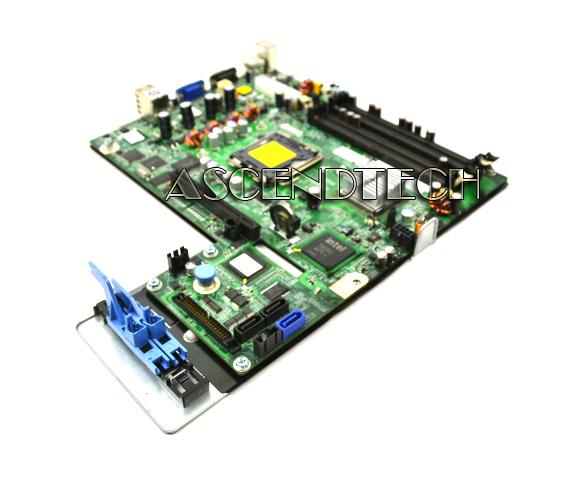

Dell TY019 PowerEdge R200 Motherboard

Dell TY019 PowerEdge R200 Server Motherboard. Dell meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Manufacturer: Dell
Part Number: TY019 CN-0TY019 0TY019

Specifications:

Processors

Intel Xeon Processors
Single Quad-Core Intel Xeon 3300 series
Single Dual-Core Intel Xeon E3100 series
Single Quad-Core Intel Xeon 3200 series
Single Dual-Core Intel Xeon 3000 series
Single Intel Core 2 Duo E4000 series
Single Intel Core 2 Duo E7000 series
Single Intel Pentium Dual-Core E2000 series
Single Intel Celeron E1000 and 400 series

Memory
Four ECC DDR-2 667/800 SDRAM DIMM sockets
Supporting up to 8 GB of RAM for 64-bit OS, or 4 GB of RAM for 32-bit OS.

Operating Systems
Microsoft Windows Small Business Server 2008
Microsoft Windows Essential Business Server 2008
Microsoft Windows Server 2008 SP2, X86/X64 (x64 includes Hyper-V)
Microsoft Windows Server 2008 R2, X64 (x64 includes Hyper-V)
Microsoft Windows HPC Server 2008
Novell SUSE Linux Enterprise Server
Red Hat Enterprise Linux

Storage
Hard Drives:
400GB 10K SAS Hard Disk Drives
146GB and 300GB 15K SAS Hard Disk Drives
500GB, 750GB and 1.0TB 7.2K Nearline SAS Hard Disk Drives
80GB, 160GB, 250GB, 500GB, 750GB and 1.0TB 7.2K SATA Hard Disk Drives

Maximum Internal Storage:
2.0 TB (2 x 1 TB) Nearline SAS
2.0 TB (2x1 TB) SATA

External Storage Options:
Dell PowerVault and Dell/EMC Storage Solutions

Drive Bays
2 x 3.5" cabled hard drive bays
Optional slim-line Optical Drive
2.5" 500GB SATA

Slots

2 total I/O slots, choice of riser
Riser 1: 2 PCI Express x8 slots (one has x4 bandwidth)
Riser 2: 1 PCI Express x8 slot and 1 PCI-X 64-bit/133MHz slot

Drive Controllers
Embedded SATA
Optional SAS

RAID Controllers (optional)
SAS 6i/R or PERC 6/E

Communications
2 x embedded Gigabit NICs
Intel Gigabit ET Dual Port Server Adapter
Intel Gigabit ET Quad Port Server Adapter

Ports
2 x USB 2.0 ports
1 x VGA video connector
1 x serial connector
2 x PS/2 connectors

Graphics
Integrated ATI ES1000 VGA Controller with 32MB memory

Recommended Deployment
The PowerEdge R200 is appropriate for the following applications:
Web server
Standalone Local Area Network (LAN) infrastructure (Domain Controller/Directory Services, DNS, DHCP, WINS)

Compatible Models:

Dell Poweredge R200 Series
