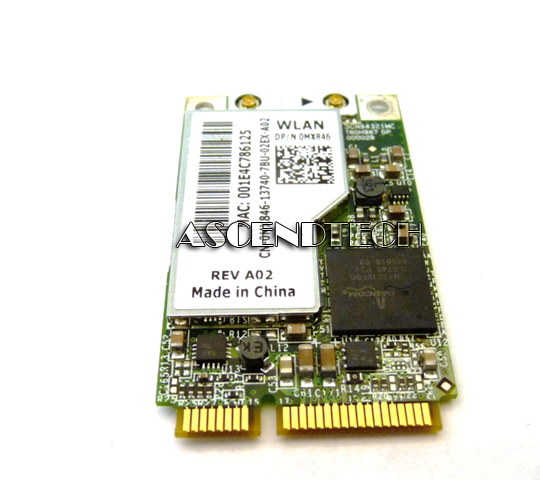

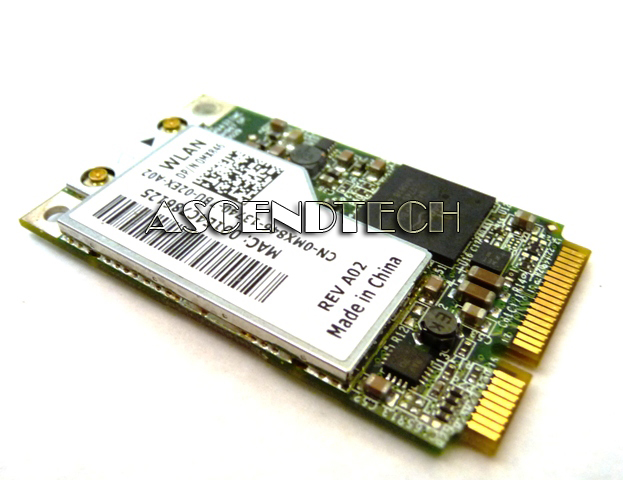

Dell Wireless Mini PCI-E Card MX846

Dell Wireless 1505 Dual-Band 802.11n PCIe WLAN Card MX846 0MX846 CN-0MX846.The Wireless 1505 PCI Express WLAN Mini Card from Dell adds draft-802.11n Wi-Fi capabilities to notebooks, PCs and other devices that support PCI Express bus architecture. By supporting multiple simultaneous data (or spatial) streams, Wireless 1505 adapters can achieve data rates of up to 300 Mbps and more reliable wireless coverage. In addition, dual-band operation allows these cards to be compatible with other 802.11a/b/g devices and provide Wi-Fi users with an enhanced multimedia experience.

Dell Part Number: MX846 0MX846 CN-0MX846
Compatible Part Numbers: BCM94321MC UM057 FW065 430-3076 430-3078 430-2511 430-2406 430-2576 430-2407 430-2557 430-2394 430-2546 430-2547

Specifications:

Interface (Bus) Type
PCI Express Mini Card

Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft)

Data Transfer Rate
300 Mbps

Encryption Algorithm
128-bit WEP, 64-bit WEP

Compatible Models:

Dell Inspiron Series: Inspiron 1420 1501 1525 1526 1720
Dell Precision Series: Precision M4300 M6300
Dell XPS Series: XPS M1210 M1530 M1730
Dell Vostro Series: Vostro 1000 1310 1400 1500 1510 1700 1710 2510
