Dell X1052P E09W Switch Assembly T65YX

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Dell X1052p E09w Switch Assembly T65yx. Part Number: Cn-0T65yx. Model: E09w X1052p
  Enlarge
Dell X1052p E09w Switch Assembly T65yx. Part Number: Cn-0T65yx. Model: E09w X1052p
Dell X1052p E09w Switch Assembly T65yx. Part Number: Cn-0T65yx. Model: E09w X1052p
Dell X1052p E09w Switch Assembly T65yx. Part Number: Cn-0T65yx. Model: E09w X1052p
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code NETSWTDELT65YXB
Brand Dell Computers
Model E09W X1052P
Part Number CN-0T65YX
Category Network Switches & Management
Condition Like New Grade A

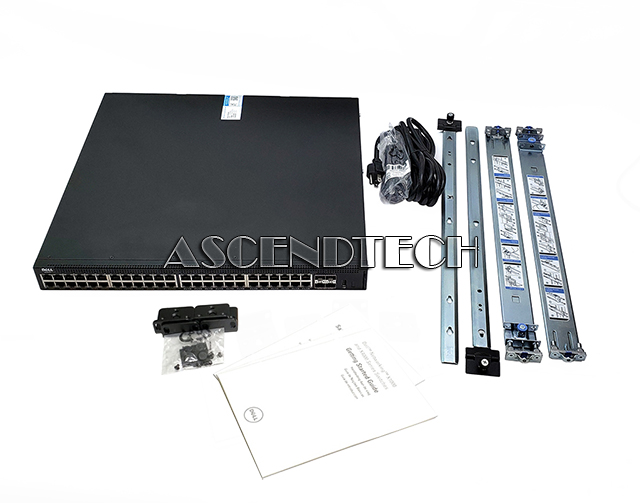

Condition Description Comes with Power Cable, USB Cable, Rail Kit Metal Ears, Screws, and Manuals. No other accessories.

Description

Dell X1052P E09W 120/230VAC 50/60Hz 48x 10/100/1000 4x Gigabit SFP+ Port Managed Network Switch Assembly T65YX 0T65YX CN-0T65YX.

Dell Model Name: X1052P
Dell Model Number: E09W
Dell Part Number: T65YX 0T65YX CN-0T65YX
Rail Kit Part Number: 5RN1M
Includes: Power Cable, USB Cable, Rail Kit Metal Ears, Screws, and Manuals







Specifications:

Power Over Ethernet (PoE): PoE+
Authentication Method: RADIUS, TACACS+
MAC Address Table Size: 16K entries

Ports:
48 x 10/100/1000 +
4 x 10 Gigabit SFP+







Features:

Networking:
Advanced Switching Layer 2+

Features:
ARP inspection, Access Control List (ACL) support, Back Pressure Support, Broadcast Storm Control, DHCP relay, DHCP server, DHCP snooping, DNS server, GARP VLAN Registration Protocol (GVRP), Head of Line Blocking Prevention, IPv6 support, LLDP support, Link Aggregation Control Protocol (LACP), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Proprietary Protocol Filtering, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNMP support, SNMP trap, SNTP support, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), VLAN support, Virtual Cable Test (VCT) technology, auto-negotiation, port mirroring, sFlow, static routing

Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3x
Manageable: Yes
Remote Management Protocol: CLI, HTTP, RMON, SNMP 1, SNMP 2, SNMP 3

Power Device:
Power Provided 525 Watt
Nominal Voltage AC 120/230 V
Frequency Required 50/60 Hz
Power Consumption Operational 82 Watt

Environmental Parameters:
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 - 90% (non-condensing)

Ports:
48x 10/100/1000
4x 10 Gigabit SFP+

Performance:
Forwarding Performance: 131 Mpps
Switching Fabric Bandwidth: 76 Gbps
