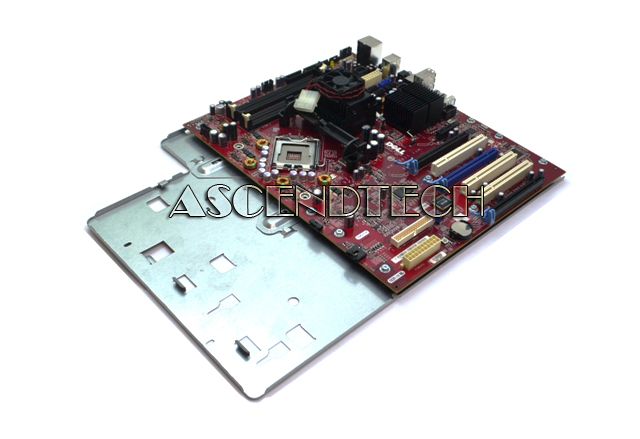

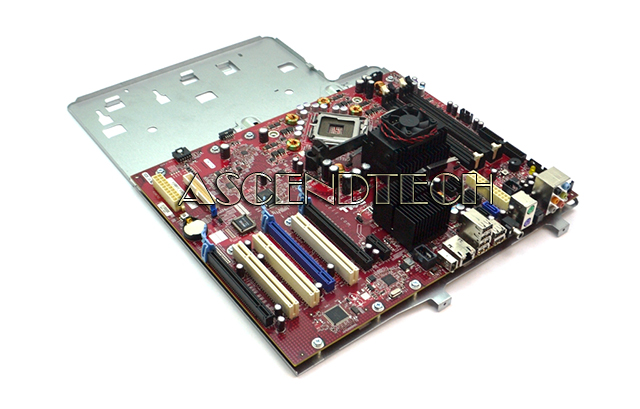

Dell XPS 720 Motherboard U723D

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Dell Xps 720 Motherboard U723d. Model: U723d Yu822 Ck520 Uy253
  Enlarge
Dell Xps 720 Motherboard U723d. Model: U723d Yu822 Ck520 Uy253
Dell Xps 720 Motherboard U723d. Model: U723d Yu822 Ck520 Uy253
Dell Xps 720 Motherboard U723d. Model: U723d Yu822 Ck520 Uy253
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4DELL755YU822
Brand Dell Computers
Model U723D YU822 CK520 UY253
Category Intel Lga775 Motherboards

Description

Genuine Original Dell XPS 720 Series Intel Socket LGA775 Desktop Motherboard with Mounting Tray U723D 0U723D CN-0U723D. The Dell motherboard harnesses the advanced computing power of the latest Intel Pentium processor.

Part Number: U723D 0U723D CN-0U723D
Compatible Part Numbers: YU822 0YU822 CN-0YU822 CK520 0CK520 CN-0CK520 UY253 0UY253 CN-0UY253
Compatible Models: Dell XPS 720 Series







SPECIFICATIONS:

Processor

  • Intel Core 2 Duo
  • Intel Core 2 Extreme
  • Socket LGA775


Memory

  • 4x 533/667-MHz DDR2
  • 8Gb Max Total

Audio

  • Integrated HDA 7.1 channel

Video

  • PCI Express

Expansion Capabilities

  • 40 Pin IDE Connector
  • 6x SATA Connectors
  • 34 Pin Floppy drive connector
  • 3x PCI Slot
  • 1x PCI Express x1 Slot
  • 3x PCI Express x16 Slots

Peripheral Interfaces

  • 1x IEEE 1394 Firewire connector
  • 1x 10/100/1000 Network connector
  • 2x PS/2 (mouse/keyboard) connectors
  • 1x serial connector
  • 6x USB 2.0 compliant connectors
