DELTA GPS-750AB A 780 WATT POWER SUPPLY

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Delta Gps-750Ab A 780 Watt Power Supply. Model: Gateway Fx 6800-9 Ps

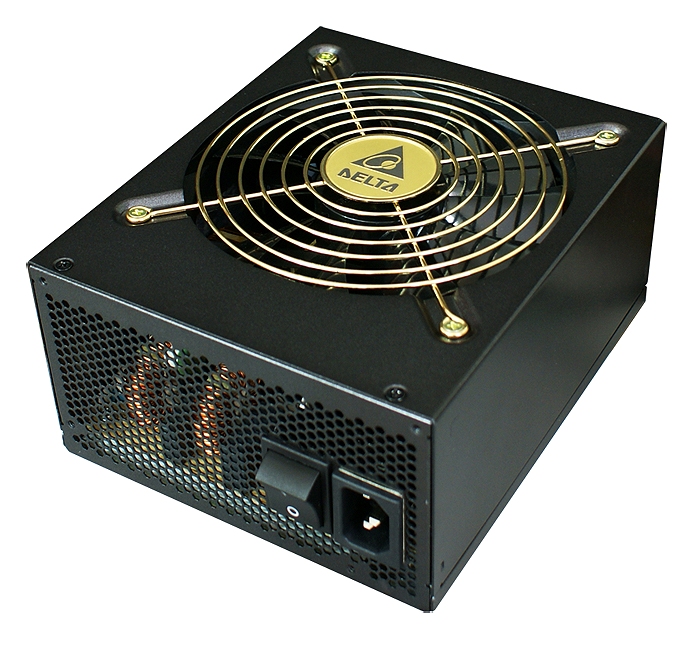

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code CSPGWF68009750W
Brand Delta Electronics
Model GATEWAY FX 6800-9 PS
Category Delta Electronics Power Supplies

Description

Delta 750 Watt Power Supply. Model Number: GPS-750AB A. Delta GPS-750AB A Power Supply is Compatible with Gateway FX6800-9 Desktop PC. Delta is one of the world's largest producers of AC/DC adapters, DC/AC inverters and DC/DC converters for portable computer/peripheral, communication and other external power source applications. All models feature high efficiency, very compact size and a low profile. Use of ASIC, hybrid circuits, and thin film technology allows Delta to design adapters with high power efficiency and high power density.


Features:

  • 80 PLUS certified power supply helps reduce the power consumption
  • Support ATX12V V2.3 and EPS12V V2.92
  • Active Power Factor Correction with PF>0.9 helps reduce the line loss and improve the voltage stability
  • +5Vsb rail with 3.5A offers the abundant power for USB charging
  • Quad 6-Pin PCI-E connectors support dual extreme-edition graphics card
  • 13.5cm fan moves more air quietly to improve the heat dissipaion over the components
  • Support OCP/OVP/Short Circuit/No Load Protection
  • MTBF : >=100,000 hours at ambient temperature


    Specifications:

    ModelGPS-750AB A
    Dimension150(W) x 180(D) x 86(H) mm
    Fan Size135mm
    Power Efficiency>80% at 20%, 50% and 100% load; 80+ certified
    Power Factor Active PFC, PF>0.9 at 100% load
    AC Input VoltageVoltage Range: 90-264V; 11-5.5A; Nomial Voltage: 100-120V/200-240V
    DC Output
    +3.3V
    +5V
    +12V1
    +12V2
    +12V3
    +12V4
    -12V
    +5Vsb
    Max Current
    30A
    30A
    18A
    18A
    18A
    18A
    0.6A
    3.5A
    Max Combined Power
    160W
    648W
    7.2W
    17.5W
    727.8W
    Max Continuous Power
    750W

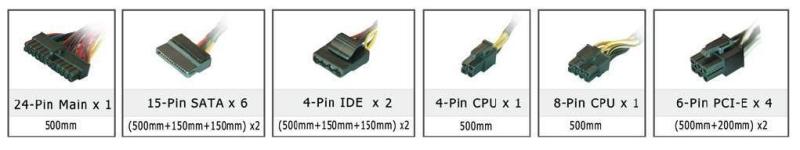

    Connectors:
