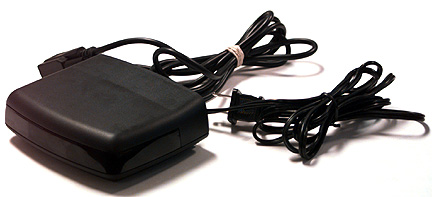

7001019 7000701 7502345 | Destination Masked Infrared Controller

The Destination IR Controller controls various IR devices using the application programming interface (API) controls set in the Destivu software setup. It has no software setup or configuration for the IR controller by itself. Run the Destivu setup to configure the IR Controller. The IR Controller uses a signal projected by the four infrared diodes in the unit to control all legacy devices located above, below and beside the controller unit. It can control up to four devices at a time.

Specifications:

Part Number: 7001019

Power	110-130 volts alternating current (VAC)
Infrared (IR) Diode Wavelength	940 nm + 20nm
Repeater Wavelength	940 nm + 20nm
Transmission Range
Controller	50 feet minimum with IDs carrier code based 25 feet minimum with IDs not carrier code based
Repeater	2 feet minimum
Dispersion Angle	+ 90 degrees horizontal + 20 degrees vertical carrier code based IDs
Mechanical
Controller	GE Plastic GPM5500 GE GY1258 color
Repeater Housing	Black permanent virtual circuit (PVC)
Repeater Cable	10 feet + 2 inches 18 inches + 2 inches Y-split from the emitter end black in color
Signal Connector	molded cover, shielded, 2.5mm phono jack
Serial Comport Cable	6 feet + 2 inches
Serial Comport Connector	molded cover, shielded, serial 9-pin sub miniature D, straight plug (DB-9 female).
Power Cord	6 feet + 2 inches Color black Underwriters Laboratories (UL) Approved, 110-130 VAC
Weight	Approximately 14 ounces (oz.)
Environmental
Temperature
Operating	0 to 40 degrees centigrade
Non Operating	-10 to + 60 degrees centigrade
Humidity
Operating	Relative humidity between 5% and 90% Maximum wet bulb of 35 degrees centigrade
Non-operating	Relative humidity 5% to 90% internal to the unit
Certifications	UL 1950 & Canadian Standards Association (CSA) C22.2 N0. 950
