DFI CS100-C246DRM Desktop Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDSCS100C246N2
Brand Dfi
Model CS100-C246DRM
Part Number 774-CS1001-200G
Compatible Part Numbers E89382 CS100 E119932 E189529
Category Intel Lga1151 Motherboard
Condition Brand New

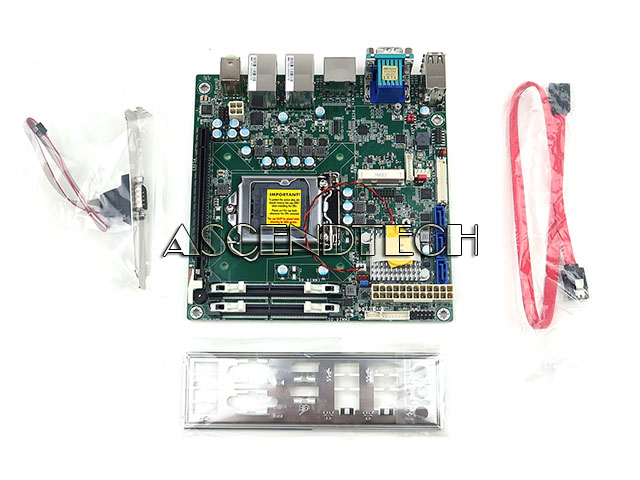

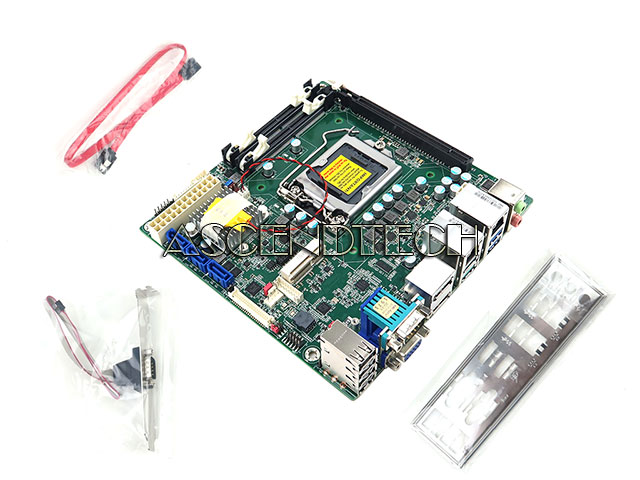

Condition Description Please note, this motherboard comes with I/O Shield, SATA Cable, COM Port cable with Bracket! No other cables, fan’s bracket, fan’s mounting backplate or any other accessories!
Description
DFI CS100-C246DRM Intel Chipset C246 Socket LGA1151 DDR4 USB 3.1 SATA 6.0Gb/s DisplayPort VGA Mini-ITX Desktop Motherboard 774-CS1001-200G.
Chipset: Intel C246
Socket: Intel LGA1151
Compatible/Supported CPU: Support 9th/8th Gen Intel Core Processors
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Speed: 2666MHz, 2400MHz
Storage Interface: SATA 6.0Gb/s
RAID Support: 0, 1, 5
Network/Communications: 1x Intel I219LM PHY, 1x Intel I211AT PCIe (10/100/1000Mbps)
Audio: Realtek ALC888S-VD2-GR Audio Codec
Connectors: 1x 24-pin ATX Connector, 1x 4-pin ATX 12 Connector, 1x RS-232 (RS-232 w/ power)(2.0mm pitch), 1x LVDS LCD Panel Connector, 1x S/PDIF, 3x SATA 3.0 (up to 6Gb/s), 1x 8-bit DIO, 1x LPC (support LPC EXT-RS232/RS485 module), 1x LCD/Inverter Power, 1x Front Audio
Input/Output Ports: 2x USB 3.1 Gen2, 2x USB 3.1 Gen1, 4x USB 2.0, 2x RJ-45, 1x VGA, 2x DisplayPort, 2x Audio Jacks, 1x COM port
Expansion Slots: 1x PCIe x16 (Gen 3), 1x Full-size Mini PCIe
Form Factor: Mini-ITX
Type: Desktop Motherboard
Supported Operating System: Windows 10 IoT Enterprise 64-bit, Linux
Features: 1x SATA Cable, 1x COM Port Cable, I/O Shield
