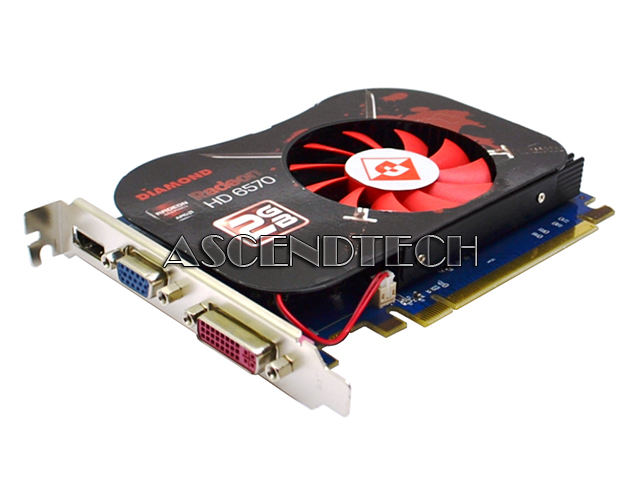

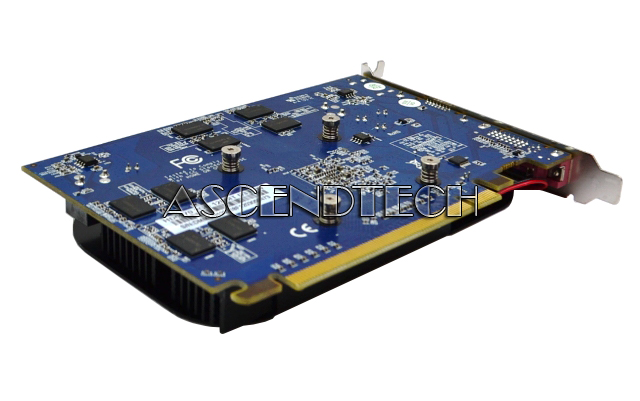

Diamond AMD Radeon HD 6570 2GB VC

Diamond AMD Radeon HD 6570 2GB GDDR3 128-Bit DVI-I HDMI VGA PCI-Express x16 Graphics Video Card 6570PE32G.

Diamond Part Number: 6570PE32G
AMD Model Number: Radeon HD 6570







Specifications:

Bus Type: PCI Express x16

Memory Amount: 2048MB
Memory Clock: 600MHz
Memory Type: GDDR3
Memory Interface: 128-bit memory interface
Memory Configuration: 64M x 32
Memory Bandwidth: 19.2 GB/s
RAMDAC: 400MHz

Stream Processors: 480
Transistor Count: 715 million
MFG Process: 40nm
Cooling Active: FanCooler

Ports:
1 Dual-Link DVI-I
1 HDMI
1 VGA

GPU: Turks Pro
Core Clock: 650
ASIC Core: 6570

Video:
CrossFire X
DirectX 11 support
OpenGL 4.1

Acceleration / G-sensor: Yes

Max Resolution:
Analog: 2048 x 1536
Digital: 2560 x 1600


System Requirements

Operating system: WIN 7 32, WIN 7 64, WIN VISTA 32, WIN VISTA 64, WIN XP, WIN XP 64, MCE, LINUX 32, LINUX 64

System CPU: Pentium Intel Duo, AMD X64 or higher

CPU speed: 2.4GHz or higher CPU
System memory: 1024MB
Hard disk space: 100MB

CD DVD: Yes
Available slot: Single
Chassis: ATX
Monitor: Digital flat-panel (DFP) displays or DVI-I compatible or digital CRT display or high-resolution VGA monitor

Power supply: 400W or greater power supply recommended (500W for ATI CrossFireX technology in dual mode)

Power supply instructions: PCI Express based PC is required with one X16 lane graphics slot available on the motherboard / 400W or greater power supply recommended (500W for ATI CrossFireX technology in dual mode) / Certified power supplies are recommended / Minimum 1GB of system memory / Installation software requires CD-ROM drive /DVD playback requires DVD drive / Blu-ray playback requires Blu-ray drive / The operation of AMD CrossFireX technology in dual mode requires a second AMD Radeon HD 6570 graphics card and an AMD CrossFireX ready motherboard
