Eaton BladeUPS 12kVA RM UPS System Assy

Eaton BladeUPS 12kVA RM 3-Phase 12kW 400V w/32A 5W In / 5W Out Scalable Modular Revolutionary Power Quality Solution Rack-Mountable UPS System Assembly ZC122F902120040. The Eaton BladeUPS is a scalable & modular UPS system designed for high density computing environments, including large data centers. Dissipating one-third of the heat of traditional modular UPS systems, this powerful configuration provides the power protection your mission-critical applications need.

Model Name: BladeUPS
Eaton Part Number: ZC122F902120040
HP Enterprise Part Number: P9C89A
Battery Pack Assembly Part Number: 103005977-552
Serial Cable Part Number: 124102022-002
MODBUS Adapter Part Number: 103005366-551 (103005425-5591)
Rack Mount Rail Kit Part Number: 103005979-551
Power Module Faceplate Part Number: 103005980-551

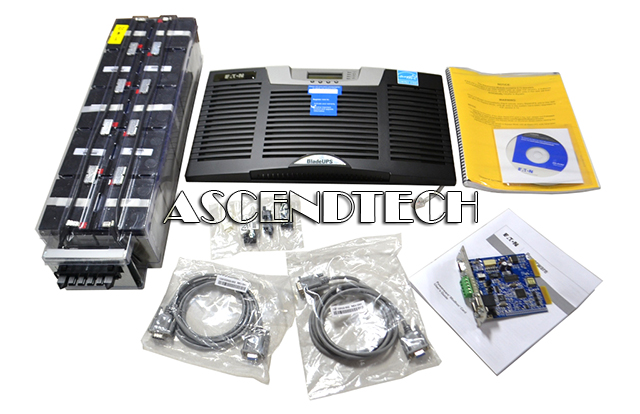

Included:

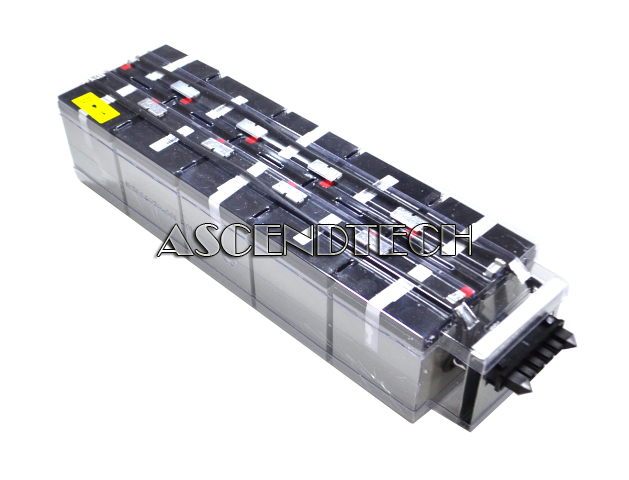

4x Extended Premium Battery Pack Assemblies 103005977-552
2x DB9 Male-DB9 Female Serial Cables 124102022-002

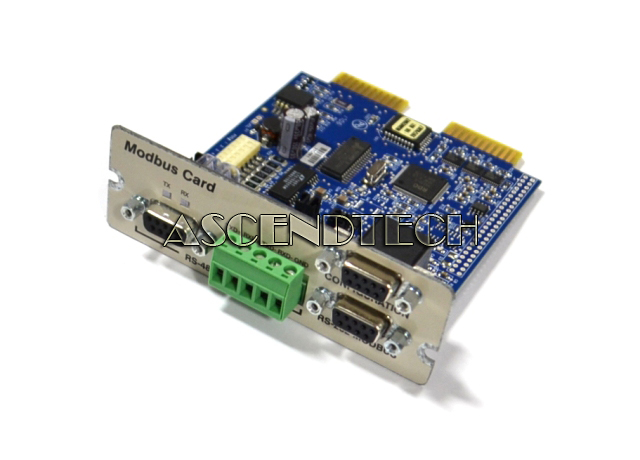

1x X-Slot MODBUS Adapter Card 103005366-551 (103005425-5591)

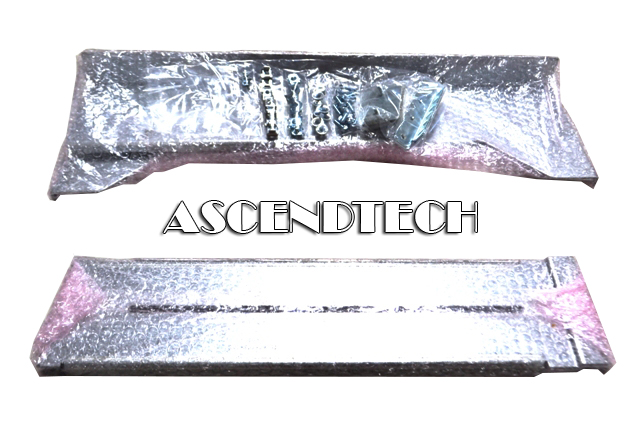

1x Replacement Rack Mount Rail Kit 103005979-551
1x Power Module Front Panel Faceplate 103005980-551
Small Accessories Kit, Manual, and CD











Specifications:

Manufacturer Eaton Corporation
Manufacturer Part Number ZC122F902120040
Brand Name Eaton
Product Line BladeUPS
Product Name BladeUPS Power System
Product Type Dual Conversion Online UPS
Plug/Connector Type Hard Wire 4-wire
Receptacles Hard Wire 4-wire
Load Capacity (Watt) 12 kW
Input Voltage 400 V AC
Output Voltage 230 V AC
Network Management SNMP Manageable
Backup/Run Time (Full Load) 4.70 Minute
Backup/Run Time (Half Load) 13 Minute
Form Factor Rack-mountable
