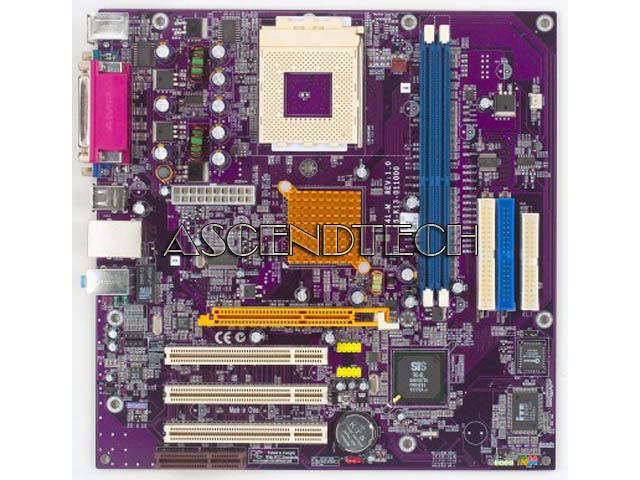

ECS 741GX-M AMD Athlon MATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBAK7741GXM4621
BrandEcs - Elitegroup
Model741GX-M V1.0
CategoryAmd Socket 754 Athlon / Sempron

Description

ECS 741GX-M V1.0 SiS 741GX Micro ATX Motherboard. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.





Specifications:

CPU

º Socket 462 for AMD Athlon™ XP/ Sempron™/ Athlon™/ Duron™ processor
º FSB 333/266 MHz

CHIPSET

º SiS® 741GX & 964L
º North Bridge: SiS® 741GX
º South Bridge: SiS® 964L

GRAPHICS

º Integrated SiS Real256E 2D/3D Graphics
º Share memory : 32/64MB

MEMORY

º 2 x 184-pin DDR DIMM socket support up to 2 GB
º Support DDR333/266 DDR SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 x AGP 8X/4X slot
º 3 x PCI slots
º 1 x CNR slot

STORAGE

º Support by SiS® 964L
    • 4 x Ultra DMA133/100/66/33 devices

AUDIO

º Realtek ALC655 6-Channel audio CODEC
º Compliant with AC'97 2.3 specification

LAN

º Realtek RTL8201 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connectors
º 4 x USB ports
º 1 x RJ45 LAN connector
º 1 x VGA port
º 1 x Parallel port (LPT)
º 1 x Serial port (COM1)
º 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 20-pin ATX Power Supply Connector
º 1 x FDD connector supports one 360K~2.88MB FDD
º 2 x IDE connectors
º 1 x Speaker header
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x CD in header
º CPUFAN/CASFAN connectors

SYSTEM BIOS

º Award BIOS with 2Mb Flash ROM
º Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
º Supports ACPI revision 1.0 specification

FORM FACTOR & LAYERS

º Micro-ATX Size (244mm*244mm), 4 Layers



CPU Socket List:

Socket

Family

Processor

P/N Number

Wattage

Frequency

L2 Cache

L3 Cache

Stepping

Since BIOS

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1500+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1500+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1600+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1600+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1700+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1700+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1800+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1800+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1900+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

1900+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2000+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2000+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2100+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2100+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2200+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2400+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2500+ (.13u)

N/A

512K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2600+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2600+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2700+ (.13u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

2800+ (.13u)

N/A

512K

N/A

051013

Socket 462

AMD Athlonâ„¢ XP

N/A

N/A

N/A

3000+ (.13u)

N/A

512K

N/A

051013

Socket 462

AMD Athlonâ„¢ MP

N/A

N/A

N/A

1500+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ MP

N/A

N/A

N/A

1600+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ MP

N/A

N/A

N/A

1800+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ MP

N/A

N/A

N/A

1900+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢ MP

N/A

N/A

N/A

2000+ (.18u)

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

650

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

700

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

750

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

800

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

850

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

900

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

950

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.0G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.0G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.133G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.1G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.2G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.2G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.33G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.3G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.4G

N/A

256K

N/A

051013

Socket 462

AMD Athlonâ„¢

N/A

N/A

N/A

1.4G

N/A

256K

N/A

051013

Socket 462

AMD Sempronâ„¢

2200+

N/A

N/A

1500MHz

N/A

256K

N/A

051013

Socket 462

AMD Sempronâ„¢

2300+

N/A

N/A

1583MHz

N/A

256K

N/A

051013

Socket 462

AMD Sempronâ„¢

2400+

N/A

N/A

1667MHz

N/A

256K

N/A

051013

Socket 462

AMD Sempronâ„¢

2500+

N/A

N/A

1750MHz

N/A

256K

N/A

051013

Socket 462

AMD Sempronâ„¢

2600+

N/A

N/A

1833MHz

N/A

256K

N/A

051013

Socket 462

AMD Sempronâ„¢

2800+

N/A

N/A

2000MHz

N/A

256K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

600

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

650

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

700

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

750

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

800

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

850

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

900

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

950

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

1.0G

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

1.1G

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

1.2G

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

1.3G

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

1.4G

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

1.6G

N/A

64K

N/A

051013

Socket 462

AMD Duron

N/A

N/A

N/A

1.8G

N/A

64K

N/A

051013
