ECS 760GX-M 760 GX AMD MATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

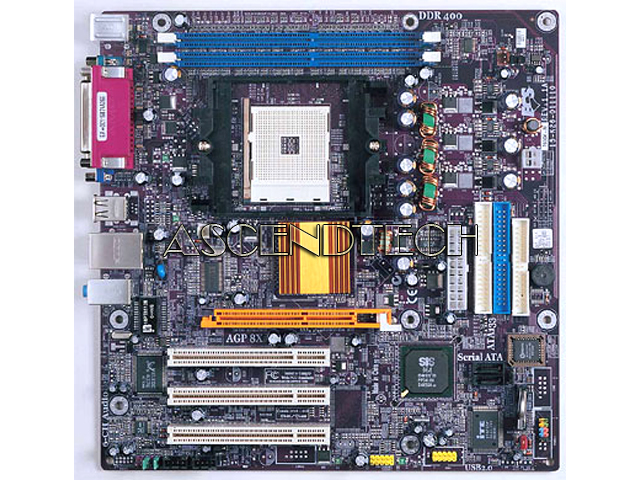

Ecs 760Gx-M 760 Gx Amd Matx Motherboard. Model: 760Gx-M V1.1A
  Enlarge

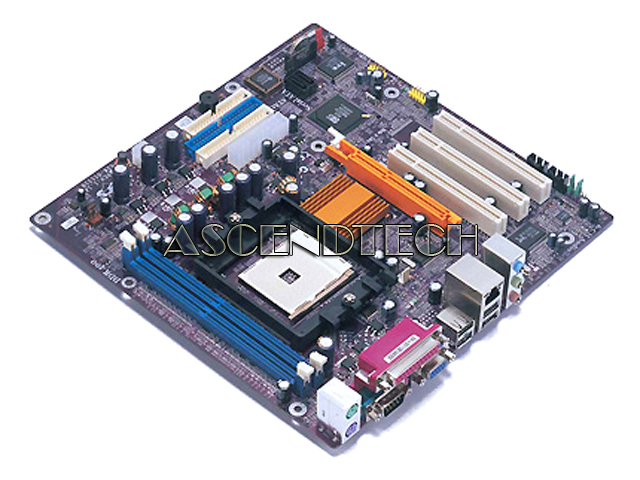

Ecs 760Gx-M 760 Gx Amd Matx Motherboard. Model: 760Gx-M V1.1A
Ecs 760Gx-M 760 Gx Amd Matx Motherboard. Model: 760Gx-M V1.1A
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64760GXMXP280
Brand Ecs - Elitegroup
Model 760GX-M V1.1A
Category Motherboard & Cpu - Ready To Go Combos

Description

ECS 760GX-M V1.1A 754 SiS 760 GX Micro ATX AMD Motherboard. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.





Specifications:

CPU

º Socket 754 for AMD Athlon™ 64/Sempron™ processor
º High-performance Hyper Transport CPU interface.
º Support transfer rate of 1600/1200/800/400 mega-transfers per second.

CHIPSET

º SiS® 760GX & 964
º North Bridge: SiS® 760GX
º South Bridge: SiS® 964

GRAPHICS

º Integrated SiS Ultra256 2D/3D Graphics

MEMORY

º 2 x 184-pin DDR DIMM socket support up to 2 GB
º Support DDR400/333/266/200 DDR SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 x AGP 8X/4X slot
º 3 x PCI slots

STORAGE

º Support by SiS® 964
    • 4 x Ultra DMA133/100/66 devices
    • 2 x Serial ATA devices
    • RAID0 & RAID1 configuration

AUDIO

º Realtek ALC655 6-Channel audio CODEC
º Compliant with AC'97 2.3 specification

LAN

º Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connectors
º 4 x USB ports
º 1 x VGA port
º 1 x RJ45 LAN connector
º 1 x Parallel port (LPT)
º 1 x Serial port (COM1)
º 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 20-pin ATX Power Supply Connector
º 1 x 4-pin ATX 12V connector
º 1 x FDD connector supports one 360K~2.88MB FDD
º 2 x IDE connectors
º 2 x Serial ATA connectors
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x SPDIF out header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º CD in/ AUX in headers
º CPUFAN/CASFAN connectors

SYSTEM BIOS

º Award BIOS with 4Mb Flash ROM
º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
º Supports ACPI revision 1.0 specification

FORM FACTOR

º Micro-ATX Size, 244mm*244mm





CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket

Family

Processor

P/N Number

Wattage

Frequency

L2 Cache

L3 Cache

Stepping

Since BIOS

Socket 754

AMD Athlon™ 64

2800+ (Rev.CG)

N/A

N/A

1800 MHz

N/A

512KB

N/A

06/12/11

Socket 754

AMD Athlon™ 64

3000+ (Rev.C0)

N/A

N/A

2000 MHz

N/A

512KB

N/A

06/12/11

Socket 754

AMD Athlon™ 64

3200+ (Rev.C0)

N/A

N/A

2200 MHz

N/A

1MB

N/A

06/12/11

Socket 754

AMD Athlon™ 64

3200+ (Rev.CG)

N/A

N/A

2200 MHz

N/A

512KB

N/A

06/12/11

Socket 754

AMD Athlon™ 64

3400+ (Rev.C0)

N/A

N/A

2200 MHz

N/A

1MB

N/A

06/12/11

Socket 754

AMD Athlon™ 64

3400+ (Rev.CG)

N/A

N/A

2400 MHz

N/A

512KB

N/A

06/12/11

Socket 754

AMD Athlon™ 64

3700+ (Rev.CG)

N/A

N/A

2400 MHz

N/A

1MB

N/A

06/12/11

Socket 754

AMD Sempron™

2500+ 64bit (Rev.E6)

N/A

N/A

1400 MHz

N/A

256KB

N/A

06/12/11

Socket 754

AMD Sempron™

2600+ (Rev.D0)

N/A

N/A

1600 MHz

N/A

128KB

N/A

06/12/11

Socket 754

AMD Sempron™

2600+ 64bit (Rev.E6)

N/A

N/A

1600 MHz

N/A

128KB

N/A

06/12/11

Socket 754

AMD Sempron™

2800+ (Rev.D0)

N/A

N/A

1600 MHz

N/A

256KB

N/A

06/12/11

Socket 754

AMD Sempron™

2800+ (Rev.E3)

N/A

N/A

1600 MHz

N/A

256KB

N/A

06/12/11

Socket 754

AMD Sempron™

2800+ 64bit (Rev.E6)

N/A

N/A

1600 MHz

N/A

256KB

N/A

06/12/11

Socket 754

AMD Sempron™

3000+ (Rev.D0)

N/A

N/A

1800 MHz

N/A

128KB

N/A

06/12/11

Socket 754

AMD Sempron™

3000+ 64bit (Rev.E6)

N/A

N/A

1800 MHz

N/A

128KB

N/A

06/12/11

Socket 754

AMD Sempron™

3100+ (Rev.CG)

N/A

N/A

1800 MHz

N/A

256KB

N/A

06/12/11

Socket 754

AMD Sempron™

3100+ (Rev.E3)

N/A

N/A

1800 MHz

N/A

256KB

N/A

06/12/11

Socket 754

AMD Sempron™

3100+ 64bit (Rev.E6)

N/A

N/A

1800 MHz

N/A

256KB

N/A

06/12/11

Socket 754

AMD Sempron™

3300+ (Rev.D0)

N/A

N/A

2000 MHz

N/A

128 KB

N/A

06/12/11

Socket 754

AMD Sempron™

3300+ 64bit (Rev.E6)

N/A

N/A

2000 MHz

N/A

128KB

N/A

06/12/11

Socket 754

AMD Sempron™

3400+ 64bit (Rev.E6)

N/A

N/A

2000 MHz

N/A

256KB

N/A

06/12/11
