ECS 761GX-M754 AMD ATHLON 64 3400+ w/FAN

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs 761Gx-M754 Amd Athlon 64 3400+ W/Fan. Model: Ecs 761Gx-M754 V5.0C
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64761GXM75434
Brand Ecs - Elitegroup
Model ECS 761GX-M754 V5.0C
Category Motherboard & Cpu - Ready To Go Combos

Description

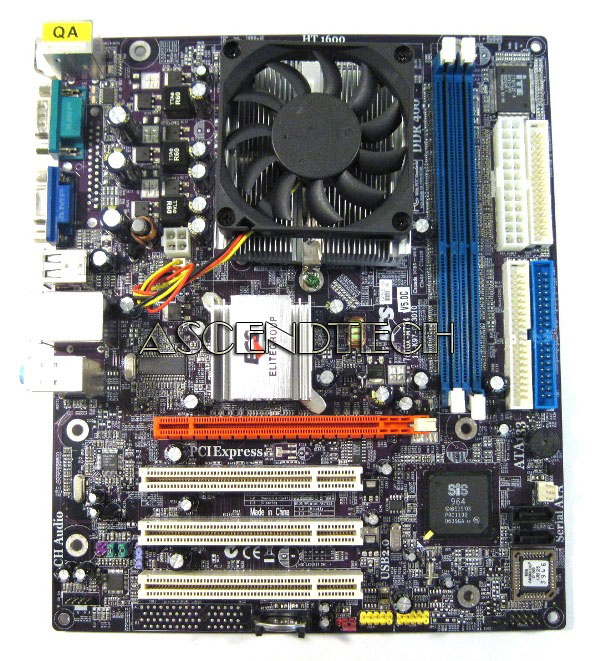

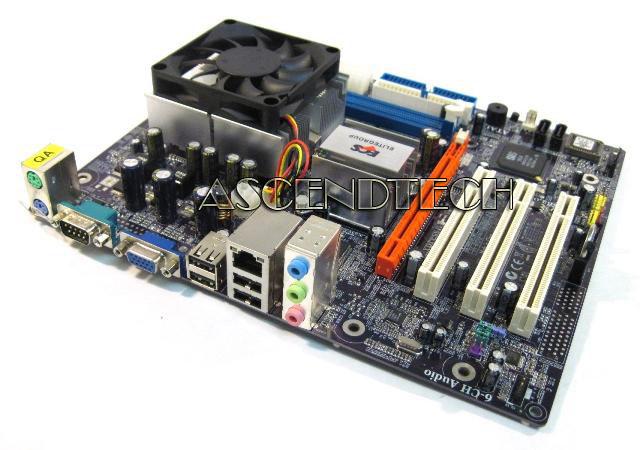

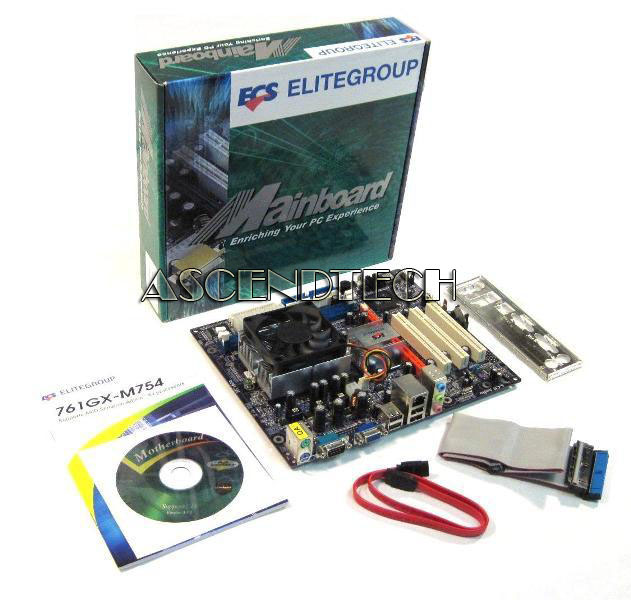

ECS 761GX-M754 V5.0c Motherboard with AMD Athlon 3400 CPU and Cooling Fan Kit. The ECS 761GX-M754 V5.0c Support latest AMD Athlon 64/ Sempron processor and transfer rate of 1600 Single-channel DDR memory architecture PCI Express x16 slot Integrated Serial-ATA interface with RAID 0.



Features:

Socket 754 for AMD Athlon 64 processors
Supports Athlon 64, Sempron and transfer rates of 1600MTs
Chipset: SiS 761GX & 964
Integrated Graphics: SiS Ultra256 2D/3D Graphics
Memory: Single channel 2 x 184-pin DDR DIMM up to 2 GB, DDR SDRAM supports DDR400/333/266/200
Includes Athlon 3400 processor



ECS 761GX-M754 Specifications:

CPU

  • Socket 754 for AMD Athlon™ 64/Sempron™ processor
  • High-performance Hyper Transport CPU interface.
  • Support transfer rate of 1600/1200/800/400 mega-transfers per second.

    CHIPSET
  • SiS 761GX & 964
  • North Bridge: SiS® 761GX
  • South Bridge: SiS® 964

    GRAPHICS
  • Integrated SiS Ultra256 2D/3D Graphics

    MEMORY
  • Single-channel DDR memory architecture
  • 2 x 184-pin DDR DIMM socket support up to 2 GB
  • Support DDR400/333/266/200 DDR SDRAM

    EXPANSION SLOT
  • 3 x PCI slots
  • 1 x PCI Express x16 slot

    STORAGE
  • Support by SiS® 964
    • 4 x Ultra DMA133/100/66 devices
    • 2 x Serial ATA devices
    • RAID0 & RAID1 configuration

    AUDIO
  • ADI AD1888 6-channel audio CODEC
  • Compliant with AC'97 2.3 specification

    LAN
  • Realtek RTL8201CL 10/100 Mbps Fast Ethernet PHY

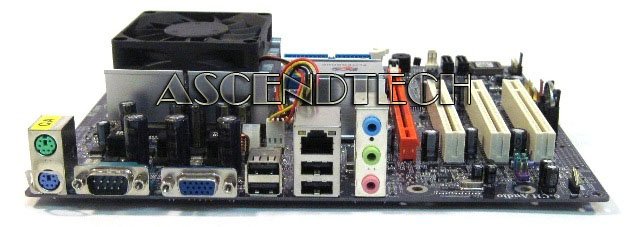

    REAR PANEL I/O
  • 1 x PS/2 keyboard & PS/2 mouse connectors
  • 4 x USB ports
  • 1 x VGA port
  • 1 x RJ45 LAN connector
  • 1 x Serial port (COM1)
  • 1 x Audio port (Line-in, Line-out, Mic-in)

    INTERNAL I/O CONNECTORS & HEADERS

  • 1 x 24-pin ATX Power Supply connector
  • 1 x 4-pin ATX 12V connector
  • 1 x FDD connector supports one 360K~2.88MB FDD
  • 2 x IDE connectors
  • 2 x Serial headers
  • 2 x Serial ATA connectors
  • 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
  • 1 x SPDIF out header
  • 1 x Front panel switch/LED header
  • 1 x Front panel audio header
  • 1 x CD in header
  • CPUFAN/SYSFAN connectors
  • 1 x Buzzer

    SYSTEM BIOS
  • AMI BIOS with 4Mb Flash ROM
  • Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification

    FORM FACTOR
  • Micro-ATX Size, 244mm*204mm


    ECS 761GX-M754 Features and Benefits:

    HT 1600
    AMD64 technology provides simultaneous support for 32-bit and 64-bit computing with 1600MT/s system bus HyperTransport technology.

    64bit support
    Allows platforms to access more memory and larger files. Large memory intensive applications can see dramatic performance increases .

    DDR 400
    Supports bandwidth up to 3.2GB/s to provide enhanced system performance.

    PCI Express
    PCI Express Lite is an ECS patent design. To make use of the PCI Express interface, it can not only upgrade the expansion of PCI-E x16 graphics card but also support the Quad-Display function.

    SATA RAID
    SATA RAID allows you to join several hard drives and increase data transfer by separating data (RAID 0) or by keeping 100% secure data duplication (RAID 1). This fulfills a total performance and security purposes that you need for your data.

    Serial ATA
    Serial ATA is the next generation ATA specification that provides superior performance. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.

    ATA133
    Supports Ultra DMA 33/66/100/133 IDE devices, data transfer rate up to 133MB/s

    6-Channel Audio
    Onboard 6-channel audio CODEC supports uncompromising DVD audio quality, bringing a move vivid sound experience and high-quality 6-channel audio without having to buy advanced sound cards

    10/100 LAN
    Provides 10/100 Mbps solution to your network or broadhand connection without having to buy an extra LAN card.

    USB 2.0
    USB2.0 is the latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.

    WHQL Certificate
    WHQL Certificate
