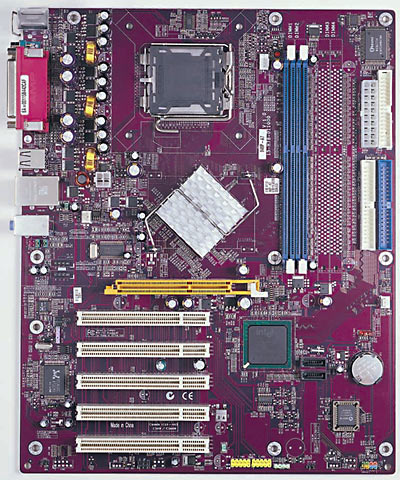

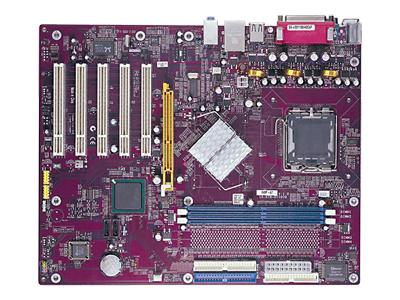

ECS 848P-A7 LGA775 800FSB DDR AGP Mboard
Actual product may vary.
Description
ECS 848P-A7 Motherboard LGA775 socket for Intel Pentium 4/ Celeron D/ Pentium D processor. Support Hyper-Threading Technology. Support by Intel ICH5, Realtek ALC655 6-Channel audio CODEC, 4 x USB ports, 1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector, Support DDR400/333/266 DDR SDRAM.
Specifications:
Model: 848P-A7 Ver. (1.0A)
CPU:
LGA775 socket for Intel Pentium 4/ Celeron D/ Pentium D processor
FSB 800/533 MHz
Support Hyper-Threading Technology
CHIPSET:
Intel 848P & ICH5
North Bridge: Intel 848P
South Bridge: Intel ICH5
MEMORY:
2 x 184-pin DDR DIMM socket support up to 2 GB
Support DDR400/333/266 DDR SDRAM
EXPANSION SLOT:
1 x AGP 8X/4X slot
5 x PCI slots
STORAGE
Support by Intel ICH5
4 x Ultra DMA100/66 devices
2 x Serial ATA devices
AUDIO:
Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN:
Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller
REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Parallel port (LPT)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS:
1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector
1 x FDD connector supports two 360K~2.88MB FDDs
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x IrDA for SIR header
1 x SPDIF out header
1 x Speaker header
1 x Front panel switch/LED header
1 x Front panel audio header
CD in/ AUX in headers
CPUFAN/PWRFAN/SYSFAN connectors
SYSTEM BIOS
CPU Support List:
| Intel Pentium 4 Extreme Edition | 3.40 GHz (2MB,800 MHz,LGA775) |
| Intel Pentium 4 660 | 3.6 GHz (2MB,800 MHz,LGA775) |
| Intel Pentium 4 650 (R0) | 3.40 GHz (2MB,800 MHz,LGA775) |
| Intel Pentium 4 650 | 3.4 GHz (2MB,800 MHz,LGA775) |
| Intel Pentium 4 640 | 3.2 GHz (2MB,800 MHz,LGA775) |
| Intel Pentium 4 630 | 3.0 GHz (2MB,800 MHz,LGA775) |
| Intel Pentium 4 570J | 3.8 GHz (1MB,800 MHz,LGA775) |
| Intel Pentium 4 560/560J | 3.6 GHz (1MB,800 MHz,LGA775) |
| Intel Pentium 4 550/550J | 3.4 GHz (1MB,800 MHz,LGA775) |
| Intel Pentium 4 540/540J | 3.2 GHz (1MB,800 MHz,LGA775) |
| Intel Pentium 4 530/530J | 3.0 GHz (1MB,800 MHz,LGA775) |
| Intel Pentium 4 524 | 3.06 GHz (1MB,533 MHz,LGA775) |
| Intel Pentium 4 520/520J | 2.8 GHz (1MB,800 MHz,LGA775) |
| Intel Pentium 4 519K | 3.06 GHz (1MB,533 MHz,LGA775) |
| Intel Pentium 4 519J | 3.06GHz (1MB,533MHz,LGA775) |
| Intel Pentium 4 516 | 2.93 GHz (1MB,533 MHz,LGA775) |
| Intel Pentium 4 515 | 2.93 GHz (1MB,533 MHz,LGA775) |
| Intel Pentium 4 511 | 2.8 GHz (1MB,533 MHz,LGA775) |
| Intel Pentium 4 510 | 2.8 GHz (1MB,533 MHz,LGA775) |
| Intel Pentium 4 506 | 2.66 GHz (1MB,533 MHz,LGA775) |
| Intel Pentium 4 505 | 2.66 GHz (1MB,533 MHz,LGA775) |
| Intel Celeron D 346 | 3.06 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 345J | 3.06 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 341 | 2.93 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 340J | 2.93 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 336 | 2.80 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 335J | 2.8 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 331 | 2.66 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 330J | 2.66 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 326 | 2.53 GHz (256KB,533 MHz,LGA775) |
| Intel Celeron D 325J | 2.53 GHz (256KB,533 MHz,LGA775) |
