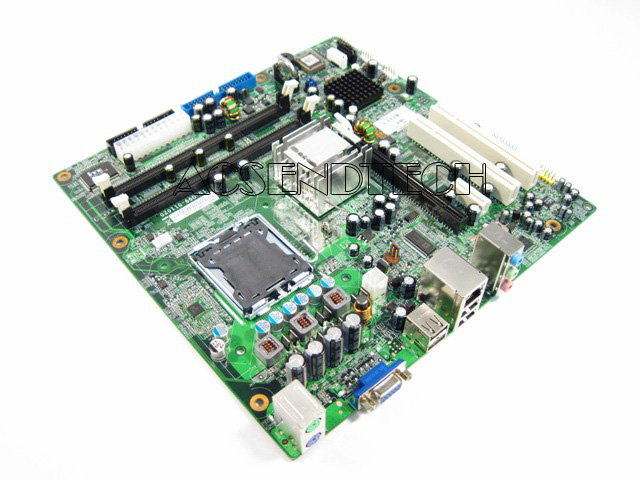

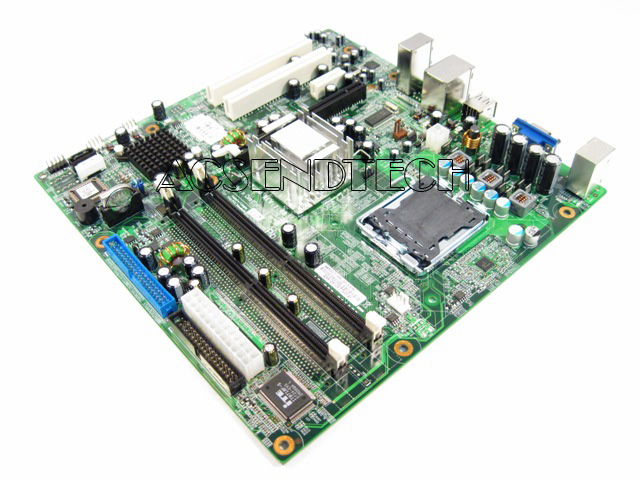

ECS 945GCT-HM LGA775 DDR2 SATA PCI-e x16

ECS 945GCT-HM Rev 1.0 B 15-Q99-011020 Motherboard. ECS motherboard raises the bar of PC industry and deliver a full-value, high-performance solution for today's most demanding tasks.

Manufacturer's motherboard name: ECS
Model Number: 945GCT-HM Rev 1.0B 15-Q99-011020

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Specifications:

Form Factor:
Micro-ATX 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)
Chipset:
Intel 945GC
Front-side bus speed:
800/533 MHz (processor dependent)
Motherboard supports the following processor upgrades:
Core 2 Duo (C) up to E4300
Pentium D (P) up to 960 (3.6 GHz)
Pentium 4 (CM) up to 661 (3.6 GHz)
Celeron D (CM) up to 365 (3.6 GHz)
Celeron D (P) up to 355 (3.33GHz)
Memory upgrade information:
Dual channel memory architecture
Two 240-pin DDR2 DIMM sockets
Supported DIMM types:
PC2-3200 (400 MHz)
PC2-4200 (533 MHz)
PC2-5300 (667 MHz, runs at 533 MHz)
Supports 1 GB DDR2 DIMMs
Supports up to 2 GB
Video:
Integrated graphics using Intel GMA 950
Also supports PCI Express x16 graphics cards
Audio:
Integrated Realtek ALC888 Audio
6-channel high-definition audio
Audio CODEC: ALC888
Network:
LAN: 10-Base-T
Interface: Integrated into motherboard
Technology: Realtek RTL8201E
Data transfer speeds: up to 10/100Mb/s
Transmission standards:10-Base-T Ethernet
Expansion Slots:
One PCI Express x16
One PCI Express x1
Two PCI
