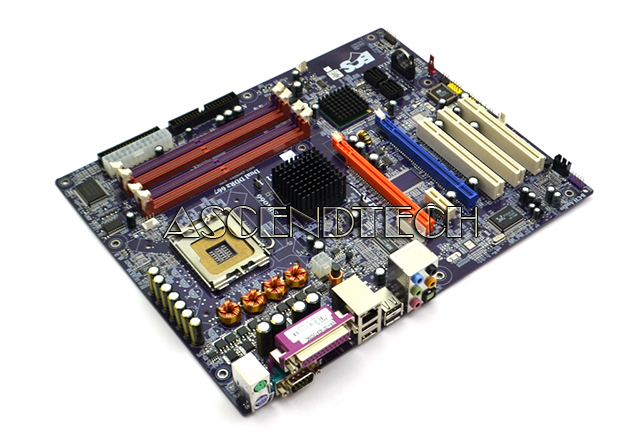

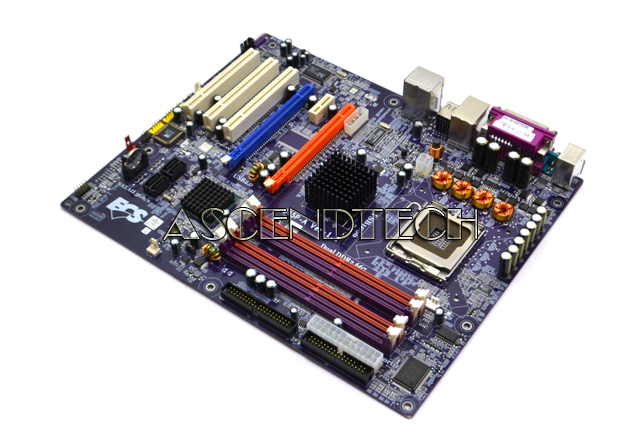

ECS 945P-A Ver:1.1 Motherboard No I/O

ECS 945P-A Ver:1.1 Intel Chipset 945P Socket LGA775 DDR2 ATX Motherboard. ECS 945P-A Motherboard LGA775 800MHz FSB set a new benchmark for an effective desktop platform solution. ESC Intel dual core 800MHz FSB processors (Pentium EE, Pentium D, and Celeron D) with Hyper-Threading and 64-bit enabled tech. It is equipped with four 240-pin Dual Channel DDR2 667 memory slots that can support up to 4 GB RAM.

Features:

Socket 775 for Intel Pentium 4 processor
- Support ATI CrossFire technology through BIOS updates.
- ECS Unique S.D.G.E design (Scalable Dual Graphic Engines)
- Supports SATA 3Gb/s interface
- Features high-speed Gigabit Ethernet connection
- Supports high quality 8-CH Intel High Definition Audio







Specifications:

CPU:
LGA775 socket for Intel Pentium 4 / Pentium D processor
FSB 800/533 MHz
Support Hyper-Threading Technology CPU
CHIPSET:
Intel 945P & ICH7
North Bridge: Intel 945P
South Bridge: Intel ICH7
MEMORY:
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 667/533/400 DDR2 SDRAM
EXPANSION SLOT:
 2 x PCI Express x16 slot (Orange : x16 mode, Blue : x4 mode)
2 x PCI Express x1 slot (x1 or diabled mode)
3 x PCI slots
*when use two PCI Express VGA card, this slot is disable
STORAGE:
Supported by Intel ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATA2 devices
AUDIO:
Realtek ALC880 8-channel audio CODEC
LAN:
Realtek RTL8110S Gigabit Mbps Fast Ethernet Controller

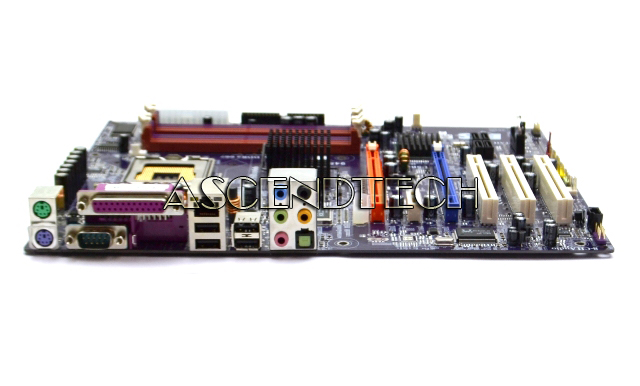

REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Serial port (COM1)
1 x Parallel port (LPT1)
1 x Audio port (Line-in,4x Line-out, SPDIF out)
INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
1 x IrDA for SIR header
1 x Speaker header
2 x USB 2.0 headers support additional 4 USB Ports
4 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CD in header
CPUFAN/NBFAN/SYSFAN connectors
SYSTEM BIOS:
AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR:
ATX Size 305mm*244mm











CPU Support List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome.
The result shown is for reference only and is subject to change w/o notification.
