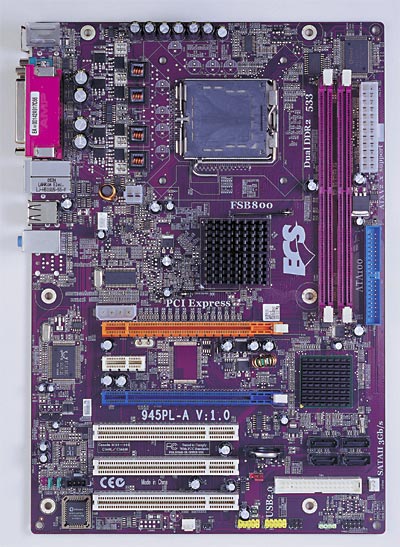

ECS 945PL-A INTEL LGA775 800MHz FSB MB
Actual product may vary.
Description
945PL-A V1.0 motherboard features the Intel 945PL and ICH7 chipsets. Supporting Intel Pentium 4 HT Processor up to 800MHz FSB and Dual-DDR2 533 to deliver powerful performance and great value for the mainstream users.
Specifications:
CPU:
LGA775 socket for Intel Pentium 4 / Pentium D processor
FSB 800/533 MHz
Support Hyper-Threading Technology
CHIPSET:
Intel® 945PL & ICH7
North Bridge: Intel® 945PL
South Bridge: Intel® ICH7
MEMORY:
Dual-channel DDR2 memory architecture
2 x 240-pin DDR DIMM socket support up to 2 GB
Support DDR533/400 1.8V DDR2 SDRAM
EXPANSION SLOT:
2 x PCI Express x16 slot (Orange : x16 mode, Blue : x4 mode)
2 x PCI Express x1 slot (x1 or diabled mode)
3 x PCI slots
STORAGE:
Supported by Intel®ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATA2 devices
AUDIO:
Realtek ALC655 6-Channel audio CODEC
LAN:
Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller
REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Serial port (COM1)
1 x Parallel port (LPT1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
1 x IrDA for SIR header
1 x Speaker header
2 x USB 2.0 headers support additional 4 USB Ports
4 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CD in header
CPUFAN/SYSFAN connectors
SYSTEM BIOS:
AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR:
ATX Size, 305mm*210mm
CPU SUPPORT:
|
| |||||
|---|---|---|---|---|---|---|
| Intel Pentium 4 Extreme Edition | 3.40 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 950 (C1) | 3.4 GHz (2x2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 945 (D0) | 3.4 GHz (2x2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 940 (C1) | 3.2 GHz (2x2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 935 (D0) | 3.2 GHz (2x2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 930 (C1) | 3.0 GHz (2x2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 930 | 3.0 GHz (2x 2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 925 (D0) | 3.0 GHz (2x2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 920 | 2.8 GHz (2x 2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 915 (D0) | 2.8 GHz (2x2MB,800 MHz,LGA775) | |||||
| Intel Pentium D 820 | 2.8 GHz (2x 1MB,800 MHz,LGA775) | |||||
| Intel Pentium D 805 | 2.66GHz (2x 1MB,533MHz,LGA775) | |||||
| Intel Pentium 4 672 | 3.8 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 670 (R0) | 3.8 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 670 | 3.8 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 662 | 3.6 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 661 (C1) | 3.6 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 661 | 3.6 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 660 | 3.6 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 651 (C1) | 3.40 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 651 | 3.4 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 650 (R0) | 3.40 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 650 | 3.4 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 641 (B1) | 3.20 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 641 | 3.2 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 640 | 3.2 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 631 (B1) | 3.0 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 631 | 3.0 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 630 | 3.0 GHz (2MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 571 | 3.8 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 570J | 3.8 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 561 | 3.6 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 560/560J | 3.6 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 551 | 3.4 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 550/550J | 3.4 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 541 | 3.2 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 540/540J | 3.2 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 531 | 3.0 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 530/530J | 3.0 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 524 | 3.06 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Pentium 4 521 | 2.8 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 520/520J | 2.8 GHz (1MB,800 MHz,LGA775) | |||||
| Intel Pentium 4 519K | 3.06 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Pentium 4 519J | 3.06GHz (1MB,533MHz,LGA775) | |||||
| Intel Pentium 4 516 | 2.93 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Pentium 4 515 | 2.93 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Pentium 4 511 | 2.8 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Pentium 4 510 | 2.8 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Pentium 4 506 | 2.66 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Pentium 4 505 | 2.66 GHz (1MB,533 MHz,LGA775) | |||||
| Intel Celeron D 365 (D0) | 3.6 GHz (512KB,533 MHz,LGA775) | |||||
| Intel Celeron D 360 (D0) | 3.46 GHz (512KB,533 MHz,LGA775) | |||||
| Intel Celeron D 356 (C1) | 3.33 GHz (512KB,533 MHz,LGA775) | |||||
| Intel Celeron D 356 (B1) | 3.33 GHz (512KB,533 MHz,LGA775) | |||||
| Intel Celeron D 355 (G1) | 3.33 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 355 | 3.33 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 351 | 3.2 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 346 | 3.06 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 345J | 3.06 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 341 | 2.93 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 340J | 2.93 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 336 | 2.80 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 335J | 2.8 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 331 | 2.66 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 330J | 2.66 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 326 | 2.53 GHz (256KB,533 MHz,LGA775) | |||||
| Intel Celeron D 325J | 2.53 GHz (256KB,533 MHz,LGA775) | |||||
