945PL-A V1.0 | Ecs 945Pl-A V1 Lga775 Motherboard No I/O

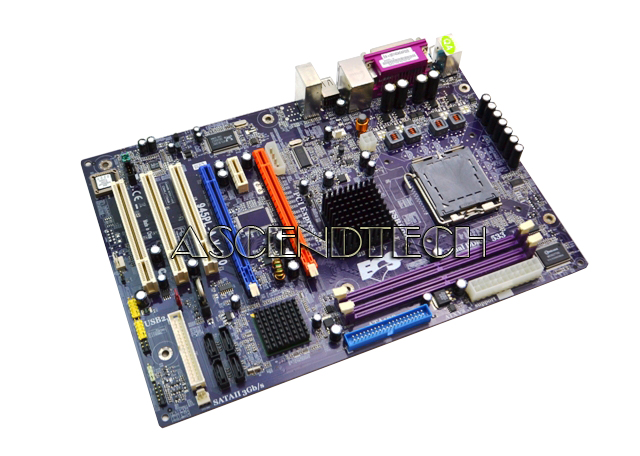

ECS 945PL-A V.1.0 Intel Chipset 945PL ICH7 Socket LGA775 FSB 800MHz DDR2 ATX Desktop Motherboard. Supporting Intel Pentium 4 HT Processor up to 800MHz FSB and Dual-DDR2 533 to deliver powerful performance and great value for the mainstream users.

Specifications:

CPU:
LGA775 socket for Intel Pentium 4 / Pentium D processor
FSB 800/533 MHz
Support Hyper-Threading Technology

CHIPSET:
Intel 945PL & ICH7
North Bridge: Intel 945PL
South Bridge: Intel ICH7

MEMORY:
Dual-channel DDR2 memory architecture
2 x 240-pin DDR DIMM socket support up to 2GB
Support DDR533/400 1.8V DDR2 SDRAM

EXPANSION SLOT:
2 x PCI Express x16 slot (Orange : x16 mode, Blue : x4 mode)
2 x PCI Express x1 slot (x1 or diabled mode)
3 x PCI slots

STORAGE:
Supported by Intel ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATA2 devices

AUDIO:
Realtek ALC655 6-Channel audio CODEC

LAN:
Realtek RTL8100C 10/100Mbps Fast Ethernet Controller

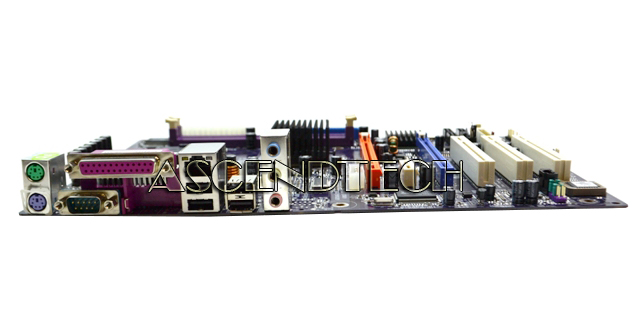

REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Serial port (COM1)
1 x Parallel port (LPT1)
1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
1 x IrDA for SIR header
1 x Speaker header
2 x USB 2.0 headers support additional 4 USB Ports
4 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CD in header
CPUFAN/SYSFAN connectors

SYSTEM BIOS:
AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification

FORM FACTOR:
ATX Size, 305mm*210mm

CPU SUPPORT:

Processor


Processor info. (Cache, System Bus, Socket)

Intel Pentium 4 Extreme Edition

3.40 GHz (2MB,800 MHz,LGA775)

Intel Pentium D 950 (C1)

3.4 GHz (2x2MB,800 MHz,LGA775)

Intel Pentium D 945 (D0)

3.4 GHz (2x2MB,800 MHz,LGA775)

Intel Pentium D 940 (C1)

3.2 GHz (2x2MB,800 MHz,LGA775)

Intel Pentium D 935 (D0)

3.2 GHz (2x2MB,800 MHz,LGA775)

Intel Pentium D 930 (C1)

3.0 GHz (2x2MB,800 MHz,LGA775)

Intel Pentium D 930

3.0 GHz (2x 2MB,800 MHz,LGA775)

Intel Pentium D 925 (D0)

3.0 GHz (2x2MB,800 MHz,LGA775)

Intel Pentium D 920

2.8 GHz (2x 2MB,800 MHz,LGA775)

Intel Pentium D 915 (D0)

2.8 GHz (2x2MB,800 MHz,LGA775)

Intel Pentium D 820

2.8 GHz (2x 1MB,800 MHz,LGA775)

Intel Pentium D 805

2.66GHz (2x 1MB,533MHz,LGA775)

Intel Pentium 4 672

3.8 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 670 (R0)

3.8 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 670

3.8 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 662

3.6 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 661 (C1)

3.6 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 661

3.6 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 660

3.6 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 651 (C1)

3.40 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 651

3.4 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 650 (R0)

3.40 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 650

3.4 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 641 (B1)

3.20 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 641

3.2 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 640

3.2 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 631 (B1)

3.0 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 631

3.0 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 630

3.0 GHz (2MB,800 MHz,LGA775)

Intel Pentium 4 571

3.8 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 570J

3.8 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 561

3.6 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 560/560J

3.6 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 551

3.4 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 550/550J

3.4 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 541

3.2 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 540/540J

3.2 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 531

3.0 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 530/530J

3.0 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 524

3.06 GHz (1MB,533 MHz,LGA775)

Intel Pentium 4 521

2.8 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 520/520J

2.8 GHz (1MB,800 MHz,LGA775)

Intel Pentium 4 519K

3.06 GHz (1MB,533 MHz,LGA775)

Intel Pentium 4 519J

3.06GHz (1MB,533MHz,LGA775)

Intel Pentium 4 516

2.93 GHz (1MB,533 MHz,LGA775)

Intel Pentium 4 515

2.93 GHz (1MB,533 MHz,LGA775)

Intel Pentium 4 511

2.8 GHz (1MB,533 MHz,LGA775)

Intel Pentium 4 510

2.8 GHz (1MB,533 MHz,LGA775)

Intel Pentium 4 506

2.66 GHz (1MB,533 MHz,LGA775)

Intel Pentium 4 505

2.66 GHz (1MB,533 MHz,LGA775)

Intel Celeron D 365 (D0)

3.6 GHz (512KB,533 MHz,LGA775)

Intel Celeron D 360 (D0)

3.46 GHz (512KB,533 MHz,LGA775)

Intel Celeron D 356 (C1)

3.33 GHz (512KB,533 MHz,LGA775)

Intel Celeron D 356 (B1)

3.33 GHz (512KB,533 MHz,LGA775)

Intel Celeron D 355 (G1)

3.33 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 355

3.33 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 351

3.2 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 346

3.06 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 345J

3.06 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 341

2.93 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 340J

2.93 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 336

2.80 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 335J

2.8 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 331

2.66 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 330J

2.66 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 326

2.53 GHz (256KB,533 MHz,LGA775)

Intel Celeron D 325J

2.53 GHz (256KB,533 MHz,LGA775)
