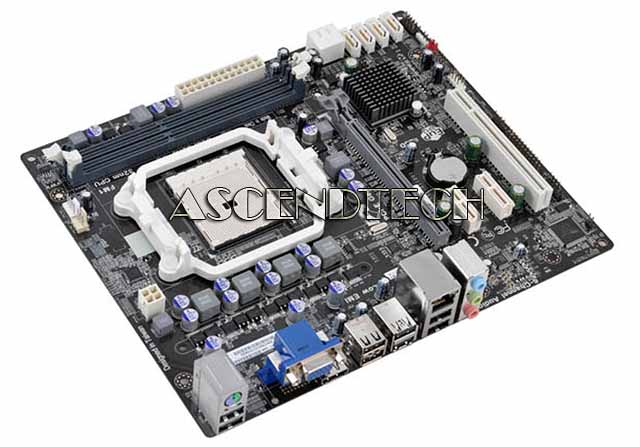

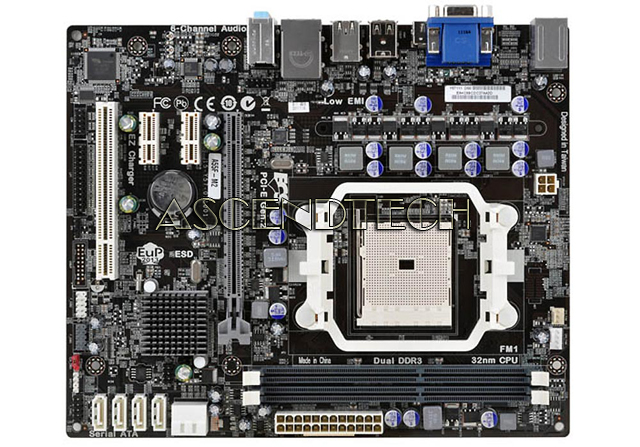

ECS A55F-M2 V1.0A FM1 AMD A55 Hudson D2 HDMI Micro ATX AMD Motherboard. This motherboard is a high performance, enhanced function motherboard that supports socket for FM1 for AMD A series processor for high-end business or personal desktop markets. The motherboard is based on AMD A55 (Hudson D2) express chipset for best desktop platform. A55 is a single-chip, highly integrated, high performance Hyper- Transport peripheral controller, unmatched by any other single chip-device controller. The memory controller supports DDR3 memory DIMM frequencies of 1866*1/1600/1333. It supports two DDR3 slots with maximum memory size of 32*2 GB. One PCI Express x16 slots, intended for Graphics Interface, are fully compliant to the PCI Express Gen2 (version 2.0). In addition, two PCI Express x1 slots and one PCI slot are supported. It integrates USB 2.0, supporting up to twelve USB 2.0 ports (eight USB 2.0 ports and two USB 2.0 headers support additional four USB 2.0 ports). The gray USB 2.0 header provides EZ charger technology, please refer to chapter 2 parts of Front Panel USB 2.0 headers to check the detail information. This motherboard integrates a Serial ATA host controller, supporting six SATA ports with maximum transfer rate up to 3.0 Gb/s each. There is an advanced full set of I/O ports in the rear panel, including one PS/2 mouse and keyboard combo connector, one HDMI port (DVI port optional), one D-sub (VGA) port, eight USB 2.0 ports, one LAN port, three audio jacks for microphone, line-in and 6-ch line-out.

Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
ECS MIB III - A friendly interface for overclocking
Integrated Printer (LPT) port / header to expand functionality
Windows 8 Workable support
Supports DirectX® 11 to enhance graphical performance
Supports AMD UVD 3.0 Engine
Supports AMD Turbo Core Technology
Supports AMD Dual Graphics Technology
Supports AMD FM1 APU

Specifications:

CPU	º Supports AMD^® FM1 socket for AMD^® A series, E Series, Athlon Quard-core, Athlon Dual-core, Sempron Dual-core processors º High Performance AMD HyperTransport 3.0 CPU Interface º Solid Capacitor for CPU side º Please refer to CPU support list for details
CHIPSET	º AMD^® A55 FCH
GRAPHICS	º AMD Radeon™ HD 6000 Series (Llano APU) graphics º Supports DirectX^® 11 º Supports AMD UVD 3.0 º Supports AMD Dual Graphics º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Dual-channel DDR3 Memory architecture º Supports DDR3 1866/1800/1600/1333/1066 non-ECC, Un-buffered SDRAM Memory º 2 X 240-pin DDR3 DIMM socket º Support up to 32 GB* º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation º * Due to AMD CPU spec limitation, please refer to Memory QVL for more information.
EXPANSION SLOT	º 1 X PCI Express X16 Gen 2.0 slot(s) º 2 X PCI Express X 1 Gen 2.0 slot(s) º 1 X PCI slot(s)
Storage	º Support by AMD® A55 Express Chipset • 6 X Serial ATAII 3Gb/s • RAID0, RAID1,RAID10 configuration º Supports NCQ, AHCI and "Hot Plug" functions
Audio	º 6-Channel HD audio CODEC º Compliant with HD audio specification º Realtek ALC662 ‧Realtek ALC662 6-channel High Definition audio CODEC ‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs ‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution ‧Emulation of 26 sound environments to enhance gaming experience ‧Voice Cancellation and Key Shifting in Karaoke mode ‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller º Wake-On-LAN
USB	º Support by AMD® A55 Express Chipset • 12 X USB2.0 port(s) Up to 480 Mb/s Back Panel 8 port(s) Onboard 4 port(s)

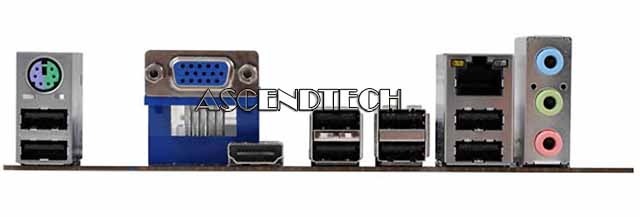

REAR PANEL I/O	º 1 X PS/2 combo connector º 1 X HDMI port(s) º 1 X DVI-D port(s) (optional) º 1 X D-Sub (VGA) port(s) º 8 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 4-pin 12V Power connector º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Speaker header º 2 X USB 2.0 header • Support additional 4 USB ports º 1 X S/PDIF out header º 6 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X Chassis intrusion header
SYSTEM BIOS	º AMI BIOS with 16 MB SPI Flash ROM º Supports M.I.B III Utility º Multi-Language BIOS
FORM FACTOR	º mATX Form Factor º 244mm(W)*200mm(H)
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows Vista 32-bit º Windows Vista 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	P/N Number	Wattage	Frequency	L2 Cache	L3 Cache	Stepping	Since BIOS
Socket FM1	AMD A8 Series	3800	AD3800OJZ43GX	65W	2.40GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A8 Series	3820	AD3820OJZ43GX	65W	2.50GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A8 Series	3850	AD3850WNZ43GX	100W	2.90GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A8 Series	3870K	AD3870WNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A6 Series	3500	AD3500OJZ33GX	65W	2.10GHz	1MB x3	N/A	B0	03/08/2013
Socket FM1	AMD A6 Series	3600	AD3600OJZ43GX	65W	2.10GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A6 Series	3620	AD3620OJZ43GX	65W	2.20GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A6 Series	3650	AD3650WNZ43GX	100W	2.60GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A6 Series	3670K	AD3670WNZ43GX	100W	2.70GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD A4 Series	3300	AD3300OJZ22HX	65W	2.50GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD A4 Series	3300	AD3300OJZ22GX	65W	2.50GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD A4 Series	3400	AD3400OJZ22HX	65W	2.70GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD A4 Series	3400	AD3400OJZ22GX	65W	2.70GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD A4 Series	3420	AD3420OJZ22HX	65W	2.80GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD A4 Series	3450	AD3450OJZ22HX	65W	2.90GHz	512KB x2	N/A	B0	12/23/2011
Socket FM1	AMD E2 Series	3200	ED3200OJZ22HX	65W	2.40GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD E2 Series	3200	ED3200OJZ22GX	65W	2.40GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD Athlon™ II X4 Quad-Core	631	AD631XOJZ43GX	65W	2.60GHz	4MB	N/A	B0	03/08/2013
Socket FM1	AMD Athlon™ II X4 Quad-Core	631	AD631XWNZ43GX	100W	2.60GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD Athlon™ II X4 Quad-Core	638	AD638XOJZ43GX	65W	2.70GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD Athlon™ II X4 Quad-Core	641	AD641XWNZ43GX	100W	2.80GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD Athlon™ II X4 Quad-Core	651	AD651XWNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD Athlon™ II X4 Quad-Core	651K	AD651KWNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	03/08/2013
Socket FM1	AMD Athlon™ II X2 Dual-Core	221	AD221XOJZ22GX	65W	2.80GHz	512KB x2	N/A	B0	03/08/2013
Socket FM1	AMD Sempron™ X2 Dual-Core	198	SD198XOJZ22GX	65W	2.50GHz	512KB x2	N/A	B0	03/08/2013
