ECS A58F2P-M4 V1.0 Micro ATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

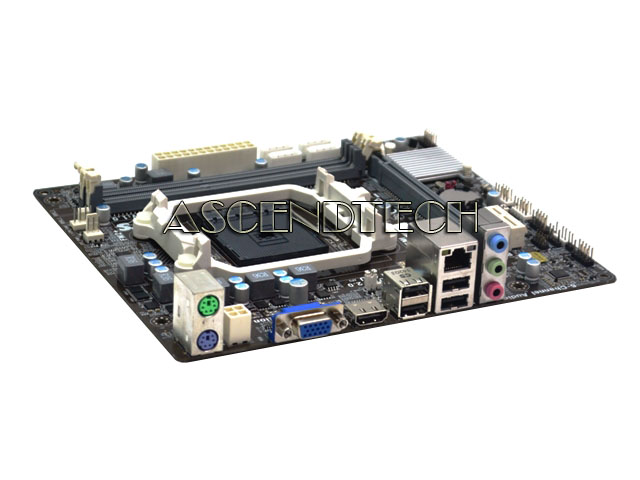

Ecs A58f2p-M4 V1.0 Micro Atx Motherboard
  Enlarge
Ecs A58f2p-M4 V1.0 Micro Atx Motherboard
Ecs A58f2p-M4 V1.0 Micro Atx Motherboard
Ecs A58f2p-M4 V1.0 Micro Atx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSA58F2PM4V1
Brand Ecs - Elitegroup
Model A58F2P-M4 V1.0
Category Amd Socket Fm2+ Motherboard
Condition New Open Box
Condition Description Please Note Motherboard comes with I/O Shield, SATA Cable, and User Manual

Description

ECS A58F2P-M4 V1.0 AMD A58 Chipset FM2+ Socket 240-pin DDR3 DIMM Serial ATAII 3Gb/s Micro ATX Motherboard.

ECS Model Number: A58G2P-M4 V1.0

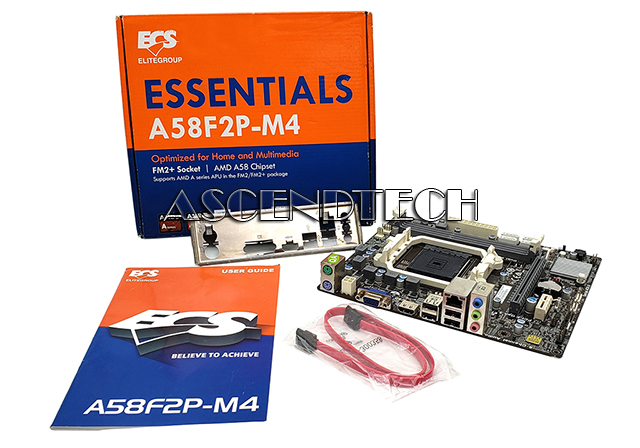

Includes: I/O Shield, SATA Cable, and User Manual.







Features:

5 Phase Power Design
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language
environment
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
language environment
ECS MIB III - A friendly interface for overclocking
Microsoft Windows 8 Certified
Microsoft Windows 8.1 Certified
Supports DirectX 11.1 to enhance graphical performance
Supports AMD FM2+ / FM2 APU







Specifications:


CPU

º Supports AMD FM2+ socket for AMD A series, E Series processors
º High Performance AMD HyperTransport 3.0 CPU Interface

CHIPSET

º AMD A58

GRAPHICS

º Supports DirectX 11 .1

MEMORY

º Dual-channelDDR3 Memory architecture
º Supports DDR3 1866/1800/1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 32 GB

EXPANSION SLOT

º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X 1 Gen 3.0slot(s)
º FM2+ APU support PCI Express Gen3, FM2 APU support PCI Express Gen2.

Storage

º 4 X Serial ATAII 3Gb/s
      Located in SATA2 Port
    • RAID0, RAID1,RAID10 configuration

Audio

º 6-Channel HD audio CODEC
º Realtek ALC662 6-channel High Definition audio CODEC
º Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D, A3D, I3DL2

LAN

º Realtek 8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by A58 Express Chipset
    • 4 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 4 port(s)

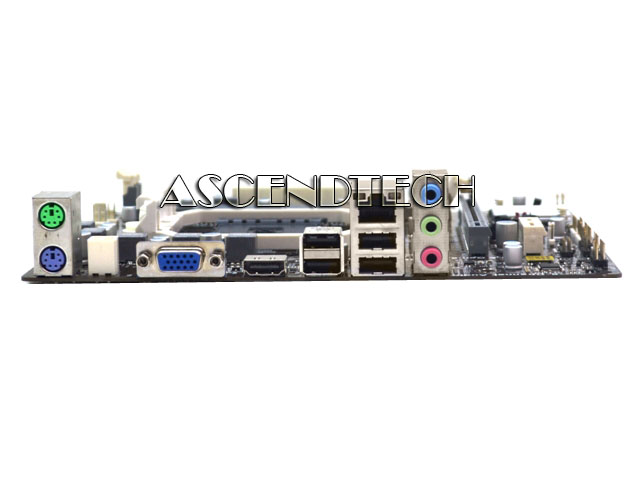

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Onboard Buzzer
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)

SYSTEM BIOS

º AMI BIOS with 32 MB SPI Flash ROM
º Supports M.I.B III Utility
º F7 hot key for boot up devices option
º Dual Display
º Support ECS EZ BIOS
º Support GUI UEFI BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS

FORM FACTOR

º mATX Form Factor
º 210mmX180mm








CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket

Family

Processor

P/N Number

Wattage

Frequency

L2 Cache

L3 Cache

Stepping

Since BIOS

Socket FM2+

AMD A10-7800 Series

785K

AD785KXBI44JA

95W

3.70GHz

4MB

N/A

A1

03/25/2014

Socket FM2+

AMD A10-7700 Series

770K

AD770KXBI44JA

95W

3.40GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A10-5800K Series

5800K

AD580KWOA44HJ

100W

3.80GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A10-5700 Series

5700

AD5700OKA44HJ

65W

3.40GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A10-6800 Series

6800B

AD680BWOA44HL

100W

4.10GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A10-6800 Series

6800K

AD680KWOA44HL

100W

4.10GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A10-6700 Series

6700

AD6700OKA44HL

65W

3.70GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A10-6700 Series

6700T

AD670TYHA44HL

45W

2.50GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A8-6600 Series

6600K

AD660KWOA44HL

100W

3.90GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A8-6500 Series

6500

AD6500OKA44HL

65W

3.50GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A8-6500 Series

6500T

AD650TYHA44HL

45W

2.10GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A8-5600K Series

5600K

AD560KWOA44HJ

100W

3.60GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A8-5500 Series

5500

AD5500OKA44HJ

65W

3.20GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD A6-6400 Series

6400B

AD640BOKA23HL

65W

3.90GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD A6-6400 Series

6400K

AD640KOKA23HL

65W

3.90GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD A6-5400K Series

5400K

AD540KOKA23HJ

65W

3.60GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD A4-6300 Series

6300

AD6300OKA23HL

65W

3.70GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD A4-6300 Series

6300B

AD630BOKA23HL

65W

3.70GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD A4-5300 Series

5300

AD5300OKA23HJ

65W

3.40GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD A4-4000 Series

4000

AD4000OKA23HL

65W

3.00GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD Athlon X4

730X

AD730XOKA44HJ

65W

2.80GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD Athlon X4

740X

AD740XOKA44HJ

65W

3.20GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD Athlon X4

750K

AD750KWOA44HJ

100W

3.40GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD Athlon X4

750X

AD750XOKA44HL

65W

3.40GHz

4MB

N/A

A1

03/25/2014

Socket FM2

AMD Athlon X4

760K

AD760KWOA44HL

100W

3.80GHz

1MB

N/A

A1

03/25/2014

Socket FM2

AMD Athlon X2

370K

AD370KOKA23HL

65W

4.00GHz

1MB

N/A

A1

03/25/2014
