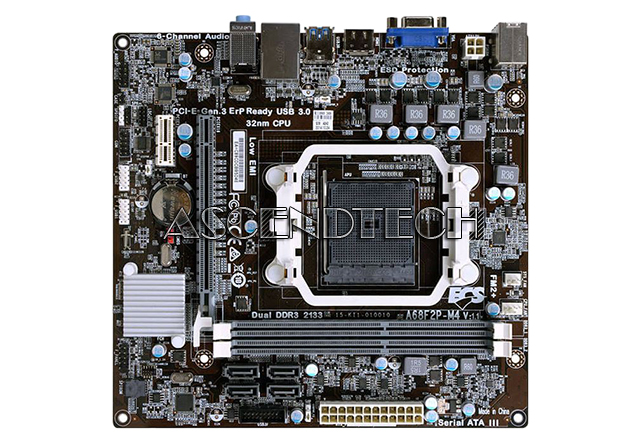

ECS A68F2P-M4 V1.0 Micro ATX Motherboard

CPU

Supports AMD FM2 socket for AMD A series, E Series processors
Supports AMD FM2+ socket for AMD A series, E Series processors
High Performance AMD HyperTransport 3.0 CPU Interface
5 Phase Thermal Design Power
100% Solid capacitor design

Chipset

AMD A68H

Graphics

Supports DirectX 11 .1

Memory

Dual-channelDDR3 Memory architecture
Supports DDR3 1866*/1800/1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*

Expansion Slot

1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 3.0slot(s)
*FM2+ APU support PCI Express Gen3, FM2 APU support PCI Express Gen2.

Storage

Support by A68H Express Chipset
4 X Serial ATAIII 6Gb/s

Audio

6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D, A3D, I3DL2

LAN

Realtek 8111G Gigabit Fast Ethernet Controller
Wake-On-LAN

USB

Support by A68H Express Chipset
2 X USB3.1 Gen1 port(s) up to 5Gb/s
Back Panel 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
Onboard 4 port(s)
Support by Asmedia ASM1042A Controler
2 X USB3.1 Gen1 port(s) up to 5Gb/s
Onboard 2 port(s)

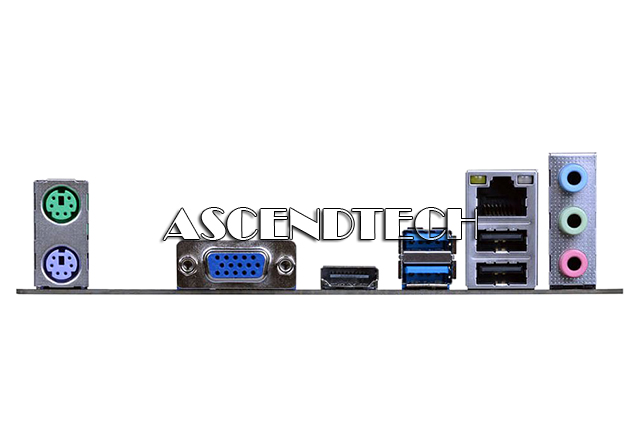

Rear Panel I/O

1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
2 X USB3.1 Gen1 port(s)
2 X USB2.0 port(s)

Connectors and Headers

1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 3-pin SYS_FAN connector
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X USB 3.1 Gen1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 4 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)

System BIOS

AMI BIOS with 64 MB SPI Flash ROM
Supports M.I.B III Utility
F7 hot key for boot up devices option
Dual Display
Support ECS EZ BIOS
Support GUI UEFI BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS

Form Factor

mATX Form Factor
210mmX200mm
