ECS A68F2P-M4 V1.1 A68H mATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs A68f2p-M4 V1.1 A68h Matx Motherboard
  Enlarge
Ecs A68f2p-M4 V1.1 A68h Matx Motherboard
Ecs A68f2p-M4 V1.1 A68h Matx Motherboard
Ecs A68f2p-M4 V1.1 A68h Matx Motherboard
Ecs A68f2p-M4 V1.1 A68h Matx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKA68F2PM4VN
Brand Ecs - Elitegroup
Model A68F2P-M4 V1.1
Compatible Part Numbers 15-KI1-011100
Category Amd Socket Fm2+ Motherboard
Condition Brand New

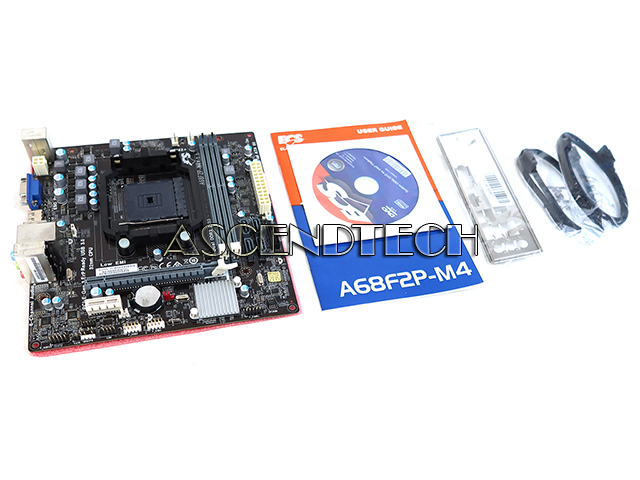

Condition Description Please note, this item comes with I/O Shield Backplate, 2x SATA Cables, System Utility DVD, and User Guide.

Description

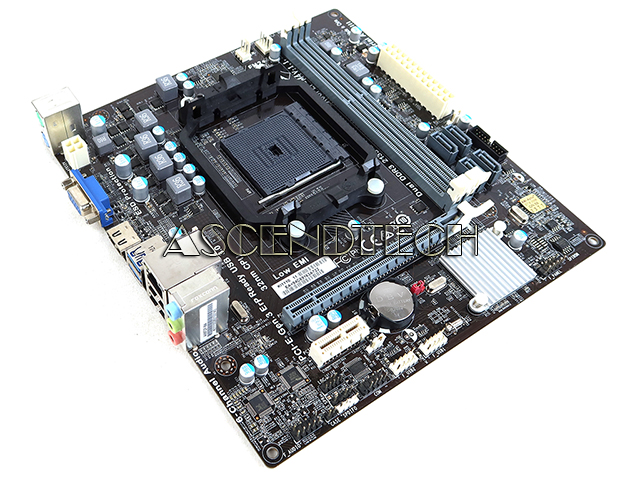

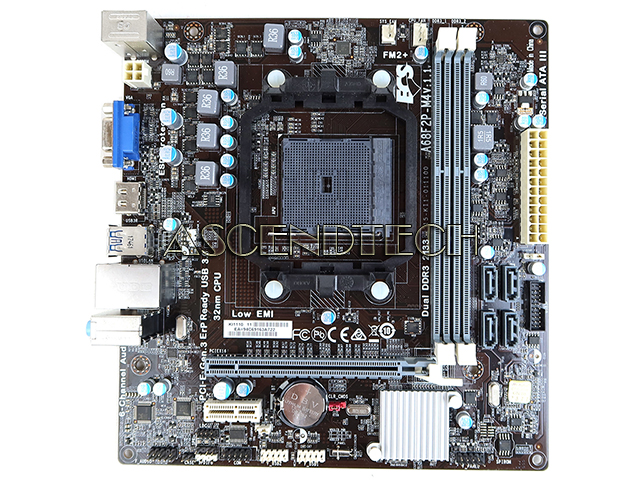

ECS Elitegroup A68F2P-M4 V1.1 AMD Chipset A68H Socket FM2+ Dual DDR3 SDRAM D-Sub HDMI USB SATA 6Gb/s Micro ATX Desktop Motherboard.

Chipset: AMD A68H
Socket: AMD FM2+
Max Supported Memory: 16GB
Number of Memory Slots: 2
Memory Type: DDR3 SDRAM
Storage Interface: 4x SATA III 6Gb/s
Network/Communications: Realtek 8111G Gigabit Fast Ethernet Controller
Audio: Realtek ALC662 6-Channel HD audio
Connectors: 1x 24-pin ATX Power Supply connector; 1x 4-pin 12V Power connector; 1x 4-pin CPU FAN connector; 1x 3-pin SYS FAN connector; 1x Front Panel switch/LED header; 1x Front panel audio header; 1x USB 3.2 Gen 1x1 header (Support additional 2 USB ports); 2x USB 2.0 header (Support additional 4 USB ports); 4x SATA III 6Gb/s connectors; 1x CLR CMOS header; 1x Serial port header (COM)

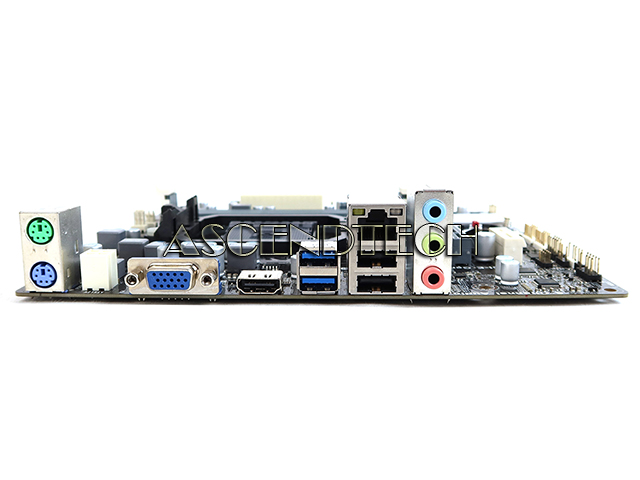

Input/Output Ports: 1x PS/2 Keyboard Connectors; 1x PS/2 Mouse Connectors; 3x Audio Port (Line Out, Line In, Mic In) 1x RJ-45 LAN port; 1x HDMI; 1x D-Sub (VGA); 2x USB 3.2 Gen 1x1; 2x USB 2.0
Expansion Slots: 1x PCI Express X16 Gen 3.0; 1x PCI Express X1 Gen 3.0
Width: 200mm
Length: 210mm
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 7, Windows 8.1, Windows 10

Additional Features:

- Windows 10 Workable support
- 5 Phase Power Design
- Applied 100% Solid capacitor design to maximize component reliability
- ECS Durathon Technology ensure the stability, reliability and performance of system.
- ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
- Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
- Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
- ECS MIB III - A friendly interface for overclocking
- Supports DirectX 12 to enhance graphical performance
- Supports HDMI 1.4a Technology (resolution up to 1920X1200) and HDCP function
- ECS Intelligent EZ Utility : eDLU, eSF

Additional Specifications:

System Bios:
- AMI BIOS with 64 MB SPI Flash ROM
- F7 hot key for boot up devices option
- Dual Display
- Support ECS EZ BIOS
- Support GUI UEFI BIOS
- Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
- Multi-Language BIOS

Certifications:
- CE/FCC Certification
- ErP/EuP Certification

Supported processors:

SocketFamilyProcessorWattageFrequency
Socket FM2+AMD A10-7800 Series7850K95W3.70GHz
Socket FM2+AMD A10-7800 Series7860K65W3.60GHz
Socket FM2+AMD A10-7700 Series7700K95W3.40GHz
Socket FM2AMD A10-5800 Series5800K100W3.80GHz
Socket FM2AMD A10-5700 Series570065W3.40GHz
Socket FM2AMD A10-6800 Series6800B100W4.10GHz
Socket FM2AMD A10-6800 Series6800K100W4.10GHz
Socket FM2AMD A10-6700 Series670065W3.70GHz
Socket FM2AMD A10-6700 Series6700T45W2.50GHz
Socket FM2+AMD A10-8700 Series875065W3.60GHz
Socket FM2+AMD A8-8600 Series865065W3.20GHz
Socket FM2+AMD A8-7600 Series7600B65W3.10GHz
Socket FM2AMD A8-6600 Series6600K100W3.90GHz
Socket FM2AMD A8-6500 Series650065W3.50GHz
Socket FM2AMD A8-6500 Series6500T45W2.10GHz
Socket FM2AMD A8-5600 Series5600K100W3.60GHz
Socket FM2AMD A8-5500 Series550065W3.20GHz
Socket FM2+AMD A6-8500 Series855065W3.70GHz
Socket FM2AMD A6-6400 Series6400B65W3.90GHz
Socket FM2AMD A6-6400 Series6400K65W3.90GHz
Socket FM2AMD A6-5400 Series5400K65W3.60GHz
Socket FM2AMD A4-6300 Series630065W3.70GHz
Socket FM2AMD A4-6300 Series6300B65W3.70GHz
Socket FM2AMD A4-5300 Series530065W3.40GHz
Socket FM2AMD A4-4000 Series400065W3.00GHz
Socket FM2AMD Athlon X4730X65W2.80GHz
Socket FM2AMD Athlon X4740X65W3.20GHz
Socket FM2AMD Athlon X4750K100W3.40GHz
Socket FM2AMD Athlon X4750X65W3.40GHz
Socket FM2AMD Athlon X4760K100W3.80GHz
Socket FM2AMD Athlon X4870K95W3.60GHz
Socket FM2AMD Athlon X2370K65W4.00GHz
