ECS A740GM-M V1.0 DDR2 AMD Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

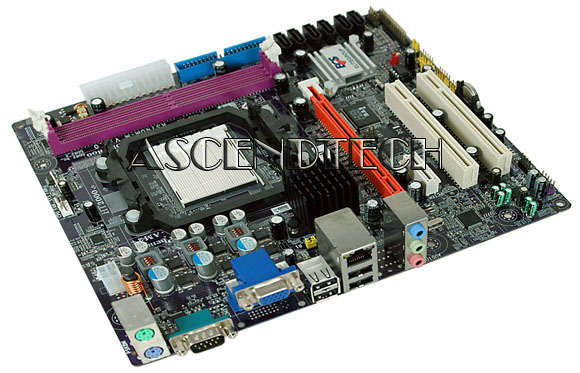

Ecs A740gm-M V1.0 Ddr2 Amd Motherboard. Model: A740gm-M (V1.0)
  Enlarge

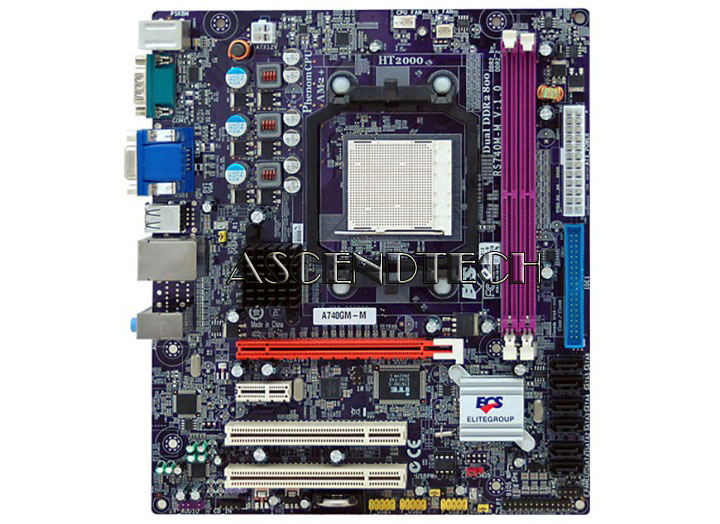

Ecs A740gm-M V1.0 Ddr2 Amd Motherboard. Model: A740gm-M (V1.0)
Ecs A740gm-M V1.0 Ddr2 Amd Motherboard. Model: A740gm-M (V1.0)
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64ECSA740GMM1
Brand Ecs - Elitegroup
Model A740GM-M (V1.0)
Category Amd Socket Am2+ Am3 Motherboards

Description

ECS A740GM-M V1.0 AM2+/AM2 Micro ATX AMD 740G Motherboard. The A740GM-M motherboard supports the AMD Phenom™ processor (AM2+). It based on AMD740G Chipset with SB700, support dual-channel DDR2 memory up to DDR2 800. This model support both DVI and VGA output for dual display application. Adding Gigabit LAN support, the A740GM-M motherboard is an ideal choice that brings you outstanding performance at competitive price.

Specifications:

CPUº AMD Phenom™ processor (Socket AM2+)
º AMD Athlon™ 64 X2 Dual Core/ Athlon™ 64 / Sempron processor
º High-performance Hyper Transport CPU interface.
º Note: This board supports CPU up to 89W TDP ; you can refer to AMD website to check your CPU.
º Support transfer rate of 2000/1600/1200 mega-transfers per second

CHIPSETº AMD® 740G & AMD® SB700
º North Bridge: AMD® 740G
º South Bridge: AMD® SB700

GRAPHICSº On Chip ( AMD 740G with 2D/3D graphic engine)
º Integrated DirectX 9 graphics processor
º Share Memory: Maximum up to 512MB

MEMORYº Dual-channel DDR2 memory architecture
º 2 x 240-pin DDR2 DIMM socket support up to 8 GB*
º Support DDR2 800/667/533/400 DDR2 SDRAM
º * (Due to the DRAM maximum size is 2GB at present, the memory maximum size we have tested is 4GB)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOTº 1 x PCI Express x16 slot
º 1 x PCI Express x1 slot
º 2 x PCI slots

STORAGEº Support by AMD SB700
    • 2 x Ultra DMA133/100/66 devices
    • 6 x Serial ATA 3.0Gb/s devices
    • RAID0, RAID1, RAID10 configuration

AUDIOº IDT 92HD202 6-channel audio ( CO-lay 92HD206)
º Compliant with HD audio specification

LANº Atheros L1 GbE LOM (Co-lay L2)

REAR PANEL I/Oº 1 x PS/2 keyboard & PS/2 mouse connectors
º 1 x Ethernet Port
º 1 x Serial port (COM1)
º 1 x DVI connector
º 1 x VGA port
º 4 x USB ports
º 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERSº 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin ATX 12V connector
º CPUFAN/SYSFAN connectors
º 3 x USB headers
º 1 x LPT1 header
º 6 x Serial ATA 3Gb/s connectors
º 1 x IR header
º 1 x IDE connector
º 1 x Speaker header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x CD in header

SYSTEM BIOSº AMI BIOS with 8Mb SPI ROM
º Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
º Supports ACPI revision 3.0 specification

FORM FACTORº Micro-ATX Size, 244mm*210mm

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket

Family

Processor

P/N Number

Wattage

Frequency

L2 Cache

L3 Cache

Stepping

Since BIOS

Socket AM2+

AMD Phenom Triple-Core

8250e (B3) (65W)

N/A

N/A

1900 MHz

N/A

512KB X 3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8400 (B2) (95W)

N/A

N/A

2100MHz

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8450 (B2) (95W)

N/A

N/A

2100MHz

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8450 (B3) (95W)

N/A

N/A

2100MHz

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8600 (B2) (95W)

N/A

N/A

2300MHz

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8650 (B2) (95W)

N/A

N/A

2300MHz

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8650 (B3) (95W)

N/A

N/A

2300MHZ

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8750 (B2) (95W)

N/A

N/A

2400MHz

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8750 (B3) (95W)

N/A

N/A

2400MHz

N/A

512KB x3

N/A

2010/05/07

Socket AM2+

AMD Phenom Triple-Core

8850 (B3) (95W)

N/A

N/A

2500 MHz

N/A

512KB X 3

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X4 Quad-Core

900e

HD900EOCK4DGI

65W

2.40GHz

512KB x4

6MB

C2

2010/05/07

Socket AM3

AMD Phenom™ II X4 Quad-Core

900e (C2) (65W)

N/A

N/A

2400 MHz

N/A

512KB X 4

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X4 Quad-Core

905e

HD905EOCK4DGM

65W

2.50GHz

512KB x4

6MB

C3

2010/05/07

Socket AM3

AMD Phenom™ II X4 Quad-Core

905e (C2) (65W)

N/A

N/A

2500Mhz

N/A

512KB X 4

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X4 Quad-Core

910e (C3) (65W)

N/A

N/A

2600 MHz

N/A

512KB X 4

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X3 Triple-Core

700e

HD700EOCK3DGI

65W

2.40GHz

512KB x3

6MB

C2

2010/05/07

Socket AM3

AMD Phenom™ II X3 Triple-Core

700e (C2) (65W)

N/A

N/A

2400 MHz

N/A

512KB X 3

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X3 Triple-Core

705e (C2) (65W)

N/A

N/A

2500 MHz

N/A

512KB X 3

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

545

HDX545WFK2DGI

95W

3.00GHz

512KB x2

6MB

C2

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

545

HDX545WFK2DGM

95W

3.00GHz

512KB x2

6MB

C3

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

545 (C2) (80W)

N/A

N/A

3000MHz

N/A

512KB X 2

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

545 (C3) (80W)

N/A

N/A

3000 MHz

N/A

512KB X 2

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

550

HDZ550WFK2DGI

95W

3.10GHz

512KB x2

6MB

C2

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

550

HDX550WFK2DGM

95W

3.10GHz

512KB x2

6MB

C3

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

550 (C2) (80W)

N/A

N/A

3100MHz

N/A

512KB X 2

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

550 (C3) (80W)

N/A

N/A

3100MHz

N/A

512KB X 2

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

555

HDZ555WFK2DGM

95W

3.20GHz

512KB x2

6MB

C3

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

555 (C3) (80W)

N/A

N/A

3200 MHz

N/A

512KB X 2

N/A

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

560

HDZ560WFK2DGM

95W

3.30GHz

512KB x2

6MB

C3

2010/05/07

Socket AM3

AMD Phenom™ II X2 Dual-Core

565

HDZ565WFK2DGM

95W

3.40GHz

512KB x2

6MB

C3

2010/05/07

Socket AM2+

AMD Phenom Quad-Core

9100e (B2) (65W)

N/A

N/A

1800 MHz

N/A

512KBx4

N/A

2010/05/07

Socket AM2+

AMD Phenom Quad-Core

9500 (B2) (95W)

N/A

N/A

2200 MHz

N/A

2MB + 2MB

N/A

2010/05/07

Socket AM2+

AMD Phenom Quad-Core

9550 (B3) (95W)

N/A

N/A

2200MHz

N/A

512KB x4

N/A

2010/05/07

Socket AM2+

AMD Phenom Quad-Core

9600 (B2) (95W)

N/A

N/A

2300 MHz

N/A

2MB + 2MB

N/A

2010/05/07

Socket AM2+

AMD Phenom Quad-Core

9650 (B3) (95W)

N/A

N/A

2300 MHz

N/A

512KBx4

N/A

2010/05/07

Socket AM2+

AMD Phenom Quad-Core

9750 (B3) (95W)

N/A

N/A

2400 MHz

N/A

512KBx4

N/A

2010/05/07

Socket AM2+

AMD Phenom Quad-Core

9850 (B3) (95W)

N/A

N/A

2500 MHz

N/A

512KB X 4

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

600e (C2) (45W)

N/A

N/A

2200 MHz

N/A

512KB X 4

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

605e

AD605EHDK42GM

45W

2.30GHz

512KB x4

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

605e (C2) (45W)

N/A

N/A

2300 MHz

N/A

512KB X 4

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

605e(C3)(45W)

N/A

N/A

2300 MHz

N/A

512KB X 4

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

610e

AD610EHDK42GM

45W

2.40GHz

512KB x4

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

630

ADX630WFK42GM

95W

2.80GHz

512KB x4

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

635

ADX635WFK42GM

95W

2.90GHz

512KB x4

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

640

ADX640WFK42GM

95W

3.00GHz

512KB x4

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

645

ADX645WFK42GM

95W

3.10GHz

512KB x4

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X4 Quad-Core

650

ADX650WFK42GM

95W

3.20GHz

512KB x4

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

400e

AD400EHDK42GI

45W

2.20GHz

512KB x3

N/A

C2

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

400e (C2) (45W)

N/A

N/A

2200 MHz

N/A

512KB X 3

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

405e

AD405EHDK32GM

45W

2.30GHz

512KB x3

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

405e (C2) (45W)

N/A

N/A

2300 MHz

N/A

512KB X 3

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

405e(C3)(45W)

N/A

N/A

2300 MHz

N/A

512KB X 3

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

415e

AD415EHDK32GM

45W

2.50GHz

512KB x3

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

435

ADX435WFK32GM

95W

2.90GHz

512KB x3

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

440

ADX440WFK32GM

95W

3.00GHz

512KB x3

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

445

ADX445WFK32GM

95W

3.10GHz

512KB x3

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

450

ADX450WFK32GM

95W

3.20GHz

512KB x3

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X3 Triple-Core

455

ADX455WFK32GM

95W

3.30GHz

512KB x3

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

215

ADX215OCK22GQ

65W

2.70GHz

512KB x2

N/A

C2

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

215

ADX215OCK22GM

65W

2.70GHz

512KB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

215 (C2) (65W)

N/A

N/A

2700 MHz

N/A

1MB X 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

220

ADX220OCK22GM

65W

2.80GHz

512KB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

225

ADX225OCK22GM

65W

2.90GHz

512KB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

235e (C2) (45W)

N/A

N/A

2800 Mhz

N/A

1MB X 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

240

ADX240OCK23GQ

65W

2.80GHz

1MB x2

N/A

C2

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

240 (C2) (65W)

N/A

N/A

2800 MHz

N/A

1MB X 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

240e (C2) (45W)

N/A

N/A

2800 Mhz

N/A

1MB X 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

245

ADX245OCK23GQ

65W

2.90GHz

1MB x2

N/A

C2

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

245

ADX245OCK23GM

65W

2.90GHz

1MB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

245 (C2) (65W)

N/A

N/A

2900 MHz

N/A

1MB X 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

245 (C3) (65W)

N/A

N/A

2900 MHz

N/A

1MB x 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

250

ADX250OCK23GQ

65W

3.00GHz

1MB x2

N/A

C2

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

250

ADX250OCK23GM

65W

3.00GHz

1MB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

250 (C2) (65W)

N/A

N/A

3000 MHz

N/A

1MB X 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

250 (C3) (65W)

N/A

N/A

3000 MHz

N/A

1MB x 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

255

ADX255OCK23GM

65W

3.10GHz

1MB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

255 (C2) (65W)

N/A

N/A

3100MHz

N/A

1MB X 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

255 (C3) (65W)

N/A

N/A

3100 MHz

N/A

1MB x 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

260

ADX260OCK23GM

65W

3.20GHz

1MB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

260 (C3) (65W)

N/A

N/A

3200 MHz

N/A

1MB x 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

260u (C3) (25W)

N/A

N/A

1800 MHz

N/A

1MB x 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

260u (C3) (25W)

N/A

N/A

1800 MHz

N/A

512KB x 2

N/A

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

265

ADX265OCK23GM

65W

3.30GHz

1MB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

270

ADX270OCK23GM

65W

3.40GHz

1MB x2

N/A

C3

2010/05/07

Socket AM3

AMD Athlon™ II X2 Dual-Core

275

ADX275OCK23GM

65W

3.50GHz

1MB x2

N/A

C3

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

3600+ (F2)(65W)

N/A

N/A

2000MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

3600+ (G1)(65W)

N/A

N/A

1900MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

3800+ (F2)(35W)

N/A

N/A

2000MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

3800+ (F2)(65W)

N/A

N/A

2000 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

3800+ (F2)(89W)

N/A

N/A

2000MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

3800+ (F3)(65W)

N/A

N/A

2000 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4000+ (F2)(65W)

N/A

N/A

2000MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4000+ (F2)(89W)

N/A

N/A

2000 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4000+ (G1)(65W)

N/A

N/A

2100MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4050e (G2)(45W)

N/A

N/A

2100MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4200+ (F2)(65W)

N/A

N/A

2200MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4200+ (F2)(89W)

N/A

N/A

2200 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4200+ (F3)(35W)

N/A

N/A

2200 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4200+ (G1)(65W)

N/A

N/A

2200 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4400+ (F2)(65W)

N/A

N/A

2200 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4400+ (F2)(89W)

N/A

N/A

2200MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4400+ (G1)(65W)

N/A

N/A

2300MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4400+ (G2)(45W)

N/A

N/A

2300MHz

N/A

512KB x2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4400+ (G2)(65W)

N/A

N/A

2300 MHz

N/A

512KB x 2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4450e (G2)(45W)

N/A

N/A

2300MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4600+ (F2)(65W)

N/A

N/A

2400 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4600+ (F2)(89W)

N/A

N/A

2400MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4600+ (F3)(65W)

N/A

N/A

2400 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4600+ (G2)(45W)

N/A

N/A

2400 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4800+ (F2)(65W)

N/A

N/A

2400MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4800+ (F2)(89W)

N/A

N/A

2400 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4800+ (G1)(65W)

N/A

N/A

2500MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4800+ (G2)(45W)

N/A

N/A

2500MHz

N/A

512KB x2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

4850e (G2)(45W)

N/A

N/A

2500MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2+

AMD Athlon™ 64 X2 Dual-Core

5000+ (C2) (65W)

N/A

N/A

2200 MHz

N/A

512KB X 2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5000+ (F2)(89W)

N/A

N/A

2600 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5000+ (F3)(65W)

N/A

N/A

2600 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5000+ (G1)(65W)

N/A

N/A

2600 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5000+ (G2) (65W)

N/A

N/A

2400MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5000+ (G2)(45W)

N/A

N/A

2600MHz

N/A

512KB x2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5000+ (G2)(65W)

N/A

N/A

2600 MHz

N/A

512KB x 2

N/A

2010/05/07

Socket AM2+

AMD Athlon™ 64 X2 Dual-Core

5050e

ADH5050IAA5DO

45W

2.50GHz

512KB x2

N/A

G2

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5200+ (F2)(89W)

N/A

N/A

2600 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5200+ (F3)(65W)

N/A

N/A

2600 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5200+ (F3)(89W)

N/A

N/A

2600 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5200+ (G1)(76W)

N/A

N/A

2700MHz

N/A

512KB x2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5200+ (G2)(45W)

N/A

N/A

2600MHz

N/A

512KB x2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5400+ (F3)(89W)

N/A

N/A

2800MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5400+ (G2)(65W)

N/A

N/A

2800MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5600+ (F3)(89W)

N/A

N/A

2800 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5600+ (G2)(65W)

N/A

N/A

2900MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5600+ (G2)(89W)

N/A

N/A

2800 MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

5800+ (G2)(89W)

N/A

N/A

3000MHz

N/A

512KBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

6000+ (F2)(89W)

N/A

N/A

3100 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64 X2 Dual-Core

6000+ (F3)(89W)

N/A

N/A

3000 MHz

N/A

1MBx2

N/A

2010/05/07

Socket AM2+

AMD Athlon™ 64 X2 Dual-Core

6000+ (G2)(89W)

N/A

N/A

3100 MHz

N/A

512KBX2

N/A

2010/05/07

Socket AM2+

AMD Athlon™ 64 X2 Dual-Core

6500 (B3) (95W)

N/A

N/A

2300 MHz

N/A

1MBX2

N/A

2010/05/07

Socket AM2+

AMD Athlon™ 64 X2 Dual-Core

7850 (B3) (95W)

N/A

N/A

2800Mhz

N/A

512KB X 2

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3000+ (F2)(62W)

N/A

N/A

1800MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3200+ (F2)(62W)

N/A

N/A

2000MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3200+ (G1)(45W)

N/A

N/A

2000 MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3500+ (F2)(35W)

N/A

N/A

2200MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3500+ (F2)(62W)

N/A

N/A

2200 MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3500+ (F3)(62W)

N/A

N/A

2200MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3500+ (G1)(45W)

N/A

N/A

2200MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3800+ (F2)(62W)

N/A

N/A

2400 MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3800+ (F3)(62W)

N/A

N/A

2400MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

3800+ (G1)(45W)

N/A

N/A

2400 MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

4000+ (F2)(62W)

N/A

N/A

2600MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

4000+ (F3)(62W)

N/A

N/A

2600MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

LE1600 (F3)(45W)

N/A

N/A

2200MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

LE1620 (F3)(45W)

N/A

N/A

2400MHz

N/A

1MB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

LE1640 (F3)(45W)

N/A

N/A

2600MHz

N/A

1MB

N/A

2010/05/07

Socket AM2

AMD Athlon™ 64

LE1660 (G2)(45W)

N/A

N/A

2800MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Sempron™ X2 Dual-Core

2100 (G1) (65W)

N/A

N/A

1800 MHz

N/A

256KBx2

N/A

2010/05/07

Socket AM2

AMD Sempron™ X2 Dual-Core

2100 (G2) (65W)

N/A

N/A

1800 MHz

N/A

256KBx2

N/A

2010/05/07

Socket AM2

AMD Sempron™ X2 Dual-Core

2200 (G2) (65W)

N/A

N/A

2000MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Sempron™ X2 Dual-Core

2300 (G2) (65W)

N/A

N/A

2200MHz

N/A

256KB x2

N/A

2010/05/07

Socket AM3

AMD Sempron™

140

SDX140HBK13GQ

45W

2.70GHz

1M

N/A

C2

2010/05/07

Socket AM3

AMD Sempron™

140 (C2) (45W)

N/A

N/A

2700 Mhz

N/A

1MB

N/A

2010/05/07

Socket AM3

AMD Sempron™

145

SDX145HBK13GM

45W

2.80GHz

1M

N/A

C3

2010/05/07

Socket AM2

AMD Sempron™

2800+ (F2)(62W)

N/A

N/A

1600 MHz

N/A

128KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3000+ (F2)(35W)

N/A

N/A

1600MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3000+ (F2)(62W)

N/A

N/A

1600 MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3200+ (F2)(35W)

N/A

N/A

1800 MHz

N/A

128KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3200+ (F2)(62W)

N/A

N/A

1800 MHz

N/A

128KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3400+ (F2)(35W)

N/A

N/A

1800 MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3400+ (F2)(62W)

N/A

N/A

1800 MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3500+ (F2)(35W)

N/A

N/A

2000 MHz

N/A

128KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3500+ (F2)(62W)

N/A

N/A

2000 MHz

N/A

128KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3600+ (F2)(62W)

N/A

N/A

2000 MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

3800+(F2)(62W)

N/A

N/A

2200 MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

LE-1100 (G1)(45W)

N/A

N/A

1900 MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

LE-1150 (G1)(45W)

N/A

N/A

2000 MHz

N/A

256KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

LE-1200 (G1)(45W)

N/A

N/A

2100 MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

LE-1200 (G2) (45W)

N/A

N/A

2100 MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

LE-1250 (G2)(45W)

N/A

N/A

2200 MHz

N/A

512KB

N/A

2010/05/07

Socket AM2

AMD Sempron™

LE-1300 (G2)(45W)

N/A

N/A

2300 MHz

N/A

512KB

N/A

2010/05/07
