A750GM-M V.7.0 | Ecs A750gm-M Am3 Ddr3 Pci-E Ati Hd2100

ECS A750GM-M V.7.0 Socket AM3 DDR3 PCI-Express X16 SATAII RAID Motherboard for AMD Phenom II Athlon II Processors. It is based on AMD740G Chipset with SB710, supporting dual-channel DDR3 memory up to 1333. A750GM-M motherboard is an ideal choice that brings the outstanding performance with very competitive price to you.

Specifications:

CPU	º Socket AM3 socket for AMD Phenom™ II /Athlon™/ Sempron processors º High-performance HyperTransport 1.0 CPU Interface º Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.
CHIPSET	º AMD^® 740G & AMD^® SB700 º North Bridge: AMD^® 740G º South Bridge: AMD^® SB700
GRAPHICS	º On Chip (AMD 740G-based with ATI™ Radeon HD2100 graphics ) º Integrated DirectX 9 graphics processor º Share Memory: Maximum up to 512MB
MEMORY	º Dual-channel DDR3 memory architecture º 2 x 240-pin DDR3 DIMM socket support up to 8 GB º Support DDR3 1333/1066 SDRAM
EXPANSION SLOT	º 1 x PCI Express x16 slot º 1 x PCI Express x1 slot º 2 x PCI slots
STORAGE	º Support by AMD SB700 • 4 x Serial ATAII 3.0Gb/s devices • RAID0, RAID1, RAID10 configuration
AUDIO	º VIA^® VT1705 6-channel audio CODEC º Compliant with HD audio specification
LAN	º Realtek RTL8103EL 10/100 LAN

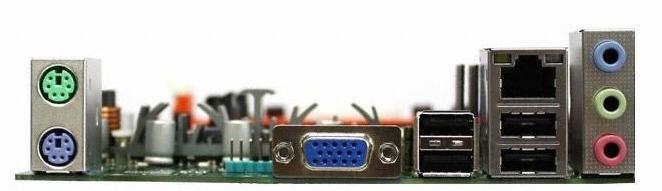

REAR PANEL I/O	º 1 x PS/2 keyboard & PS/2 mouse connectors º 1 x D-sub(VGA) º 1 x RJ45 LAN connector º 1 x Audio port (Line-in, Line-out, Mic-in) º 4 x USB 2.0 Ports
INTERNAL I/O CONNECTORS & HEADERS	º 1 x 24-pin ATX Power Supply connector º 1 x 4-pin 12V Connector º 1 x 4pin CPU_FAN connectors º 1 x 3-pin SYS_FAN connector º 1 x IDE connector º 1 x Front panel switch/LED header º 1 x Front panel audio header º 1 x SPDIF out header º 1 x Clear CMOS header º 1 x Serial port header º 1 x Parallel Header º 4 x SATAII 3Gb/s connectors º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports º 1 x Chassis intrusion header
SYSTEM BIOS	º AMI BIOS with 8Mb SPI Flash ROM º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Audio, LAN, can be disabled in BIOS º Support eJIFFY
FORM FACTOR	º Micro-ATX Size, 244mm*210mm

		AMD Phenom II With the state-of-the-art technology, AMD’s next generation processor, AMD Phenom II, enables the power of platform solutions for gaming, multitasking, and digital entertainment with outstanding performance and energy efficiency

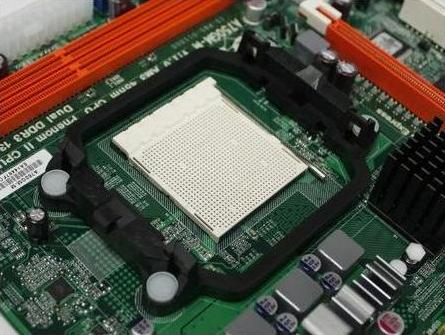

		Socket AM3 The latest socket AM3 supports AMD’s AM3 processors which have featured the integrated memory controller for DDR3 memory that provides much higher bandwidth to enhance the overall system performance.

		HT 2000 AMD64 technology provides simultaneous support for 32-bit and 64-bit computing with 2000MT/s system bus HyperTransport technology.

		Dual Channel DDR3 1333 Doubles the bandwidth of your system memory up to 21.0GB/s and pumps up the system performance at lower power.

		PCI EXPRESS x16 Delivers up to a 4x increase in graphics and 2x I/O bandwidth for smooth multimedia performance

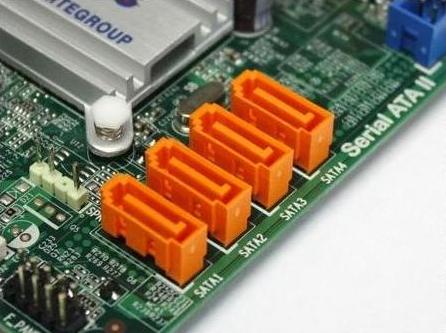

		SATAII 3.0Gb/s Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices with NCQ function support.

		RAID 0, 1, 10 Supports RAID 0(Striped disk array), RAID 1(Mirroring disk array), RAID 10 (A Stripe of Mirrors). Provides users the performance and protection.

		SPDIF Out S/PDIF (Sony/Philips Digital Interface) is a convenient connectivity and standard audio transfer format. It allows the transfer of audio from one file to another without the conversion to and from an analog format, and keeps the optical connector the best.

		6 Channel High Definition Audio Integrated 6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.

		10/100 LAN Provides 10/100 Mbps solution to your network or broadband connection without having to buy an extra LAN card.

		USB 2.0 The latest connectivity standard which delivers transfer speeds up to 480Mb/s for easy connectivity and ultra-fast data transfers.

		eJIFFY ECS eJIFFY is a Linux based interface for a fast boot application which is compressed in a CD to install on the hard drive.Within 8 seconds after the computer boots up, eJIFFY is ready to provide users the total enjoyment for web browsing, photo reviewing and on-line chat. Instead of waiting for the regular OS to start up, eJIFFY serves a convenient center to have quick fun or a glance at the hot news in today’s fast pace world where nothing can be too quick.

		eBLU - BIOS Live Update Utility ECS eBLU utility makes updating BIOS fast and easy. eBLU saves time and hassle of searching for BIOS online and avoid complicated flashing steps. With simple and easy steps it checks for new BIOS version on-line and safely guides the user to flash the system BIOS.

		eDLU - Drivers Live Update Utility ECS eDLU utility makes updating Drivers fast and easy. eDLU Saves time and hassle of searching for Drivers online and avoid complicated steps. With simple and easy steps it checks for new Drivers version on-line and let the user to update the Drivers.

		EuP Certified ECS Motherboards have been certified by EuP. EuP certification verifies that ECS motherboards comply with European Union stander to decrease the environmental effects and promote sustainable environment. Save energy and keep healthy environment by choosing ECS motherboards.

		ROHS Choose an environment-friendly, fully RoHS-compliant ECS product as the foundation for keeping harmful substances out of our ecosystem.

CPU Support List:

Socket AM3 AMD Phenom™ II Quad-Core 965 (C3) (125W) 3400 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 960T (E0) (95W) 3000 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 955 (C3) (95W) 3200 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 945 (C3) (95W) 3000 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 945 (C2) (95W) 3000 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 925 (C3) (95W) 2800 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 925 (C2) (95W) 2800 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 910e (C3) (65W) 2600 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 910 (C2) (95W) 2600 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 905e (C2) (65W) 2500Mhz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 900e (C2) (65W) 2400 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 820 (C2) (95W) 2800Mhz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 810 (C2) (95W) 2600 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 805 (C2) (95W) 2500 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 640 (C3) (95W) 3000 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 635 (C3) (95W) 2900 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 635 (C2) (95W) 2900 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 630 (C3) (95W) 2800 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 630 (C2) (95W) 2800 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 620 (C2) (95W) 2600 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 610e (C3) (45W) 2400 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 605e(C3)(45W) 2300 MHz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 600e (C2) (45W) 2200 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Six-Core 1055T (E0) (95W) 2800 MHz 4000 512KB x6
Socket AM3 AMD Phenom™ II Six-Core 1035T (E0) (95W) 2600 MHz 4000 512KB x6
Socket AM3 AMD Phenom™ II Triple-Core Black Edition 740 (C2) (95W) 3000 MHz 4000 512KB X 4
Socket AM3 AMD Phenom™ II Triple-Core 720 (C2)(95W) 2800 MHz 4000 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 710 (C2) (95W) 2600 MHz 4000 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 705e (C2) (65W) 2500 MHz 4000 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 700e (C2) (65W) 2400 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 445 (C3) (95W) 3100 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 440 (C3) (95W) 3000 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 440 (C2) (95W) 3000 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 435 (C3) (95W) 2900 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 435 (C2) (95W) 2900 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 425 (C2) (95W) 2700Mhz 4000 512KB X 4
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 415e(C3)(45W) 2500 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 405e(C3)(45W) 2300 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 405e (C2) (45W) 2300 MHz 4000 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 400e (C2) (45W) 2200 MHz 4000 512KB X 3
Socket AM3 AMD Phenom™ II Dual-Core 555 (C3) (80W) 3200 MHz 4000 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 550 (C3) (80W) 3100MHz 4000 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 550 (C2) (80W) 3100MHz 4000 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 545 (C3) (80W) 3000 MHz 4000 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 545 (C2) (80W) 3000MHz 4000 512KB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 260u (C3) (25W) 1800 MHz 3600 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 260 (C3) (65W) 3200 MHz 4000 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 255 (C3) (65W) 3100 MHz 4000 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 255 (C2) (65W) 3100MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 250e (C3) (65W) 3000 MHz 4000 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 250 (C3) (65W) 3000 MHz 4000 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 250 (C3) (65W) 3000 MHz 4000 512KB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 250 (C2) (65W) 3000 MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 245e (C3) (65W) 2900 MHz 4000 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 245e (C3) (45W) 2900 MHz 4000 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 245 (C3) (65W) 2900 MHz 4000 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 245 (C2) (65W) 2900 MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 240e (C3) (45W) 2800 MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 240e (C2) (45W) 2800 MHz 4000 512KB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 240e (C2) (45W) 2800 MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 240 (C2) (65W) 2800 MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 220 (C3) (65W) 2800 MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 215 (C3) (65W) 2700 MHz 4000 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 215 (C2) (65W) 2700 MHz 4000 1MB X 2
Socket AM3 AMD Sempron 145 (C3) (45W) 2800 MHz 4000 1MB
Socket AM3 AMD Sempron 140 (C2) (45W) 2700 Mhz 4000 1MB

ECS A750GM-M AM3 DDR3 PCI-e ATI HD2100
