A75F-A (V1.0A) Hudson D3 | Ecs A75f-A Fm1 Ddr3 Usb 3.0 Sata3 Hdmi

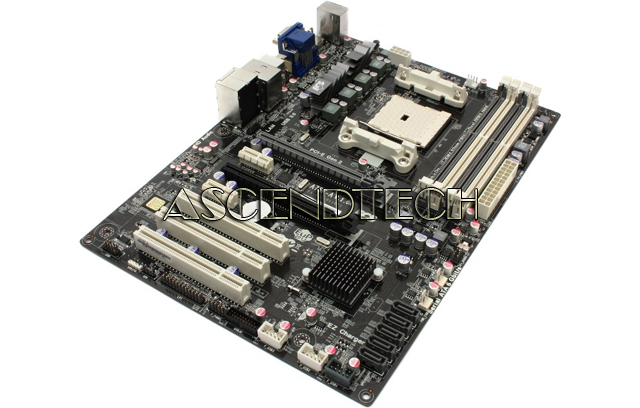

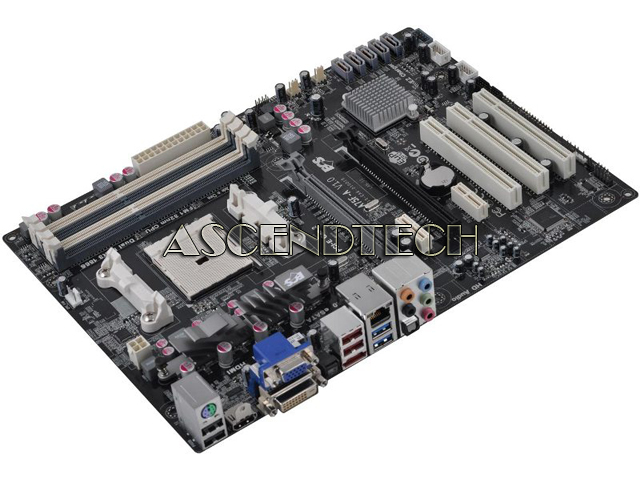

ECS A75F-A V1.0A FM1 AMD A75 Hudson D3 5xSATA 6GB/s USB 3.0 HDMI ATX Motherboard. ECS A75F-A is a combination of AMD FM1 Socket with A75 chipset. It's furnished with Dual-Channel DDR3 memory, 5 SATA (6Gb/s), multiple outputs (DVI, HDMI, VGA), e-SATA (6Gb/s), USB 3.0 and Realtek 8111E GigaLAN. For all these features and attracting price, ECS A75F-A is definitely your top choice.

Features:

2-Way multi-graphics solution
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language
environment
ECS MIB III - A friendly interface for overclocking
Integrated Printer (LPT) port / header to expand functionality
Windows 8 Workable support
Supports DirectX^® 11 to enhance graphical performance
Supports AMD CrossFire™ to expand your system’s graphics capabilities.
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Supports AMD UVD 3.0 Engine
Supports AMD Dual Graphics Technology
Supports AMD FM1 APU

Specifications:

CPU	º Supports AMD^® FM1 socket for AMD^® A series, E Series, Athlon Quard-core, Athlon Dual-core, Sempron Dual-core processors º High Performance AMD HyperTransport 3.0 CPU Interface º 100% Solid capacitor design º Please refer to CPU support list for details
CHIPSET	º AMD^® A75 FCH
GRAPHICS	º AMD Radeon™ HD 6000 Series (Llano APU) graphics º Supports DirectX^® 11 º Supports HDMI 1.4a & Premium Audio º Supports AMD UVD 3.0 º Supports AMD Dual Graphics º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Dual-channel DDR3 Memory architecture º Supports DDR3 1866/1800/1600/1333/1066 non-ECC, Un-buffered SDRAM Memory º Supports up to 2600(OC) º 4 X 240-pin DDR3 DIMM socket º Support up to 64 GB* º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation º * Due to AMD CPU spec limitation, please refer to Memory QVL for more information.
EXPANSION SLOT	º 2 X PCI Express X16 Gen 2.0 slot(s) º 2 X PCI Express X 1 Gen 2.0 slot(s) º 3 X PCI slot(s) º *The second PCIE X16 only support bandwidth X4
Storage	º Support by AMD® A75 Express Chipset • 5 X Serial ATAIII 6Gb/s • 1 X eSATAIII 6Gb/s • RAID0, RAID1,RAID10 configuration º Supports NCQ, AHCI and "Hot Plug" functions
Audio	º 8-Channel HD audio CODEC º Compliant with HD audio specification º Realtek ALC892 ‧Realtek ALC892 8-channel High Definition audio CODEC ‧Compatible with Direct Sound 3D™, A3D™, I3DL2 ‧Smart multiple streaming operation ‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience ‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller º Wake-On-LAN
USB	º Support by AMD® A75 Express Chipset • 4 X USB3.0 port(s) up to 5Gb/s Back Panel 2 port(s) Onboard 2 port(s) • 10 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 6 port(s) º ECS EZ Charger (Gray USB header)

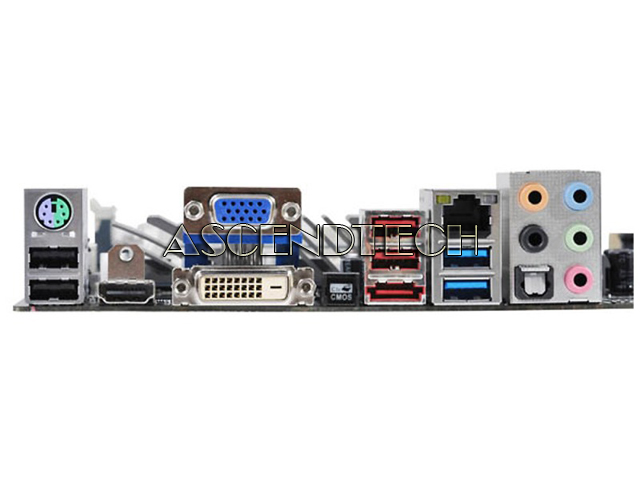

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line-in,4x Line-out, SPDIF out) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X DVI-D port(s) º 1 X D-Sub (VGA) port(s) º 4 X USB3.0 port(s) º 4 X USB2.0 port(s) º 1 X Clear_CMOS Button
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 8-pin ATX 12V Power Connector º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector º 1 X 3-pin PWR_FAN connector º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Speaker header º 1 X USB 3.0 header • Support additional 2 USB ports º 3 X USB 2.0 header • Support additional 6 USB ports º Support EZ charger (gray color) º 1 X S/PDIF out header º 5 X SATA III 6Gb/s connector(s) º 1 X Serial port header (COM) º 1 X Parallel port header (LPT)
SYSTEM BIOS	º AMI BIOS with 32 MB SPI Flash ROM º Supports M.I.B III Utility º Support GUI UEFI BIOS º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Supports PgUp clear CMOS Hotkey
FORM FACTOR	º ATX Form Factor º 305mm(W)*220mm(H)
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows Vista 32-bit º Windows Vista 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	P/N Number	Wattage	Frequency	L2 Cache	L3 Cache	Stepping	Since BIOS
Socket FM1	AMD A8 Series	3800	AD3800OJZ43GX	65W	2.40GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A8 Series	3820	AD3820OJZ43GX	65W	2.50GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A8 Series	3850	AD3850WNZ43GX	100W	2.90GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A8 Series	3870K	AD3870WNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A6 Series	3500	AD3500OJZ33GX	65W	2.10GHz	1MB x3	N/A	B0	09/14/2011
Socket FM1	AMD A6 Series	3600	AD3600OJZ43GX	65W	2.10GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A6 Series	3620	AD3620OJZ43GX	65W	2.20GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A6 Series	3650	AD3650WNZ43GX	100W	2.60GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A6 Series	3670K	AD3670WNZ43GX	100W	2.70GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD A4 Series	3300	AD3300OJZ22GX	65W	2.50GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD A4 Series	3300	AD3300OJZ22HX	65W	2.50GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD A4 Series	3400	AD3400OJZ22GX	65W	2.70GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD A4 Series	3400	AD3400OJZ22HX	65W	2.70GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD A4 Series	3420	AD3420OJZ22HX	65W	2.80GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD A4 Series	3450	AD3450OJZ22HX	65W	2.90GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD E2 Series	3200	ED3200OJZ22GX	65W	2.40GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD E2 Series	3200	ED3200OJZ22HX	65W	2.40GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	631	AD631XOJZ43GX	65W	2.60GHz	4MB	N/A	B0	09/14/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	631	AD631XWNZ43GX	100W	2.60GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	638	AD638XOJZ43GX	65W	2.70GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	641	AD641XWNZ43GX	100W	2.80GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	651	AD651XWNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	651K	AD651KWNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	09/14/2011
Socket FM1	AMD Athlon™ II X2 Dual-Core	221	AD221XOJZ22GX	65W	2.80GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD Sempron™ X2 Dual-Core	198	SD198XOJZ22GX	65W	2.50GHz	512KB x2	N/A	B0	09/14/2011
