A75F-M2 V1.0 Hudson D3 | Ecs A75f-M2 Fm1 Amd A75 Hdmi Ddr3 Matx

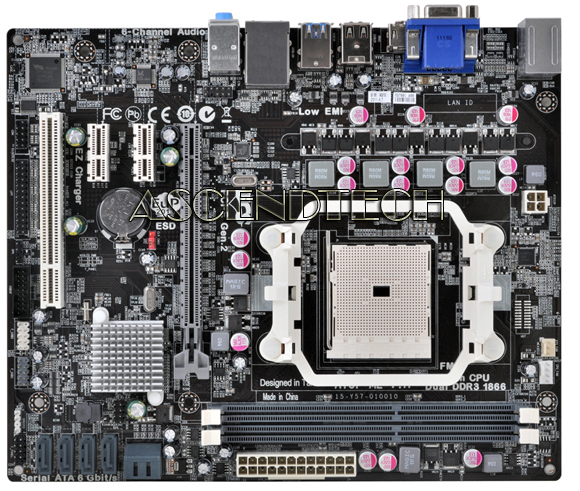

ECS A75F-M2 V1.0/V1.0A FM1 AMD A75 Hudson D3 6x SATA 6GB/s USB 3.0 HDMI DDR3 Micro ATX Motherboard. When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition. Trust only motherboards built with Durathon Technology.

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language
environment
ECS MIB III - A friendly interface for overclocking
Supports DirectX^® 11 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Intelligent EZ Utility : eBLU, eDLU, eSF

Specifications:

CPU	º Supports AMD^® FM1 socket for AMD^® A series, E Series, Athlon Quard-core, Athlon Dual-core, Sempron Dual-core processors º High Performance AMD HyperTransport 3.0 CPU Interface º Please refer to CPU support list for details
CHIPSET	º AMD^® A75 FCH
GRAPHICS	º Supports DirectX^® 11
MEMORY	º Dual-channel DDR3 Memory architecture º Supports 1866 non-ECC, Un-buffered SDRAM Memory º 2 X 240-pin DDR3 DIMM socket º Support up to 32 GB* º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT	º 2 X PCI Express X 1 Gen 2.0 slot(s) º 1 X PCI Express X16 slot(s) º 1 X PCI slot(s)
Storage	º 6 X Serial ATAIII 6Gb/s • RAID0, RAID1,RAID10 configuration
Audio	º 6-Channel HD audio CODEC º Compliant with HD audio specification º Realtek ALC662 -Realtek ALC662 6-channel High Definition audio CODEC -Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs -Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution -Emulation of 26 sound environments to enhance gaming experience -Voice Cancellation and Key Shifting in Karaoke mode -Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller

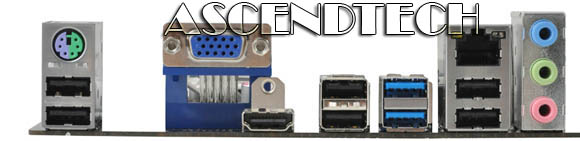

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X D-Sub (VGA) port(s) º 1 X HDMI port(s) (DVI port(s), optional) º 2 X USB3.0 port(s) º 6 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 4-pin 12V Power connector º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector º 1 X Front panel audio header º 1 X Speaker header º 1 X USB 3.0 header • Support additional 2 USB ports º 2 X USB 2.0 header • Support additional 4 USB ports º 1 X S/PDIF out header º 6 X SATA III 6Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X Parallel port header (LPT)
SYSTEM BIOS	º AMI BIOS with 16 MB SPI Flash ROM º Supports M.I.B III Utility º Multi-Language BIOS
FORM FACTOR	º mATX Form Factor º 244mm*200mm
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows Vista 32-bit º Windows Vista 64-bit º Windows 7 32-bit º Windows 7 64-bit
Certifications	º WHQL Certification

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	P/N Number	Wattage	Frequency	L2 Cache	L3 Cache	Stepping	Since BIOS
Socket FM1	AMD A8 Series	3800	AD3800OJZ43GX	65W	2.40GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A8 Series	3820	AD3820OJZ43GX	65W	2.50GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A8 Series	3850	AD3850WNZ43GX	100W	2.90GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A8 Series	3870K	AD3870WNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A6 Series	3500	AD3500OJZ33GX	65W	2.10GHz	1MB x3	N/A	B0	12/27/2011
Socket FM1	AMD A6 Series	3600	AD3600OJZ43GX	65W	2.10GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A6 Series	3620	AD3620OJZ43GX	65W	2.20GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A6 Series	3650	AD3650WNZ43GX	100W	2.60GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A6 Series	3670K	AD3670WNZ43GX	100W	2.70GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD A4 Series	3300	AD3300OJZ22GX	65W	2.50GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD A4 Series	3300	AD3300OJZ22HX	65W	2.50GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD A4 Series	3400	AD3400OJZ22GX	65W	2.70GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD A4 Series	3400	AD3400OJZ22HX	65W	2.70GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD A4 Series	3420	AD3420OJZ22HX	65W	2.80GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD A4 Series	3450	AD3450OJZ22HX	65W	2.90GHz	512KB x2	N/A	B0	09/14/2011
Socket FM1	AMD E2 Series	3200	ED3200OJZ22GX	65W	2.40GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD E2 Series	3200	ED3200OJZ22HX	65W	2.40GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	631	AD631XOJZ43GX	65W	2.60GHz	4MB	N/A	B0	12/27/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	631	AD631XWNZ43GX	100W	2.60GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	638	AD638XOJZ43GX	65W	2.70GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	641	AD641XWNZ43GX	100W	2.80GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	651	AD651XWNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD Athlon™ II X4 Quad-Core	651K	AD651KWNZ43GX	100W	3.00GHz	1MB x4	N/A	B0	12/27/2011
Socket FM1	AMD Athlon™ II X2 Dual-Core	221	AD221XOJZ22GX	65W	2.80GHz	512KB x2	N/A	B0	12/27/2011
Socket FM1	AMD Sempron™ X2 Dual-Core	198	SD198XOJZ22GX	65W	2.50GHz	512KB x2	N/A	B0	12/27/2011
