ECS A75F2-A2 DDR3 SATA3 USB3.0 HDMI DVI

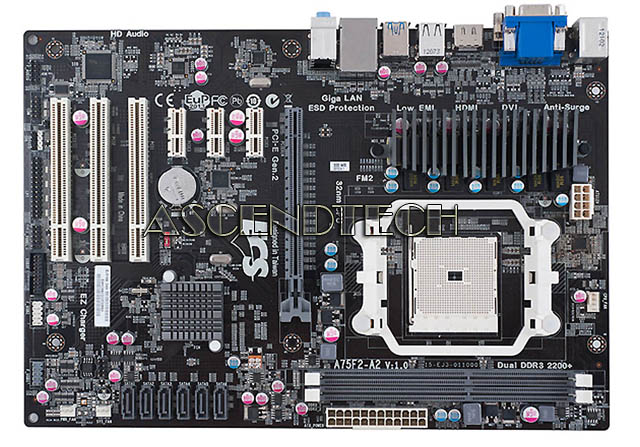

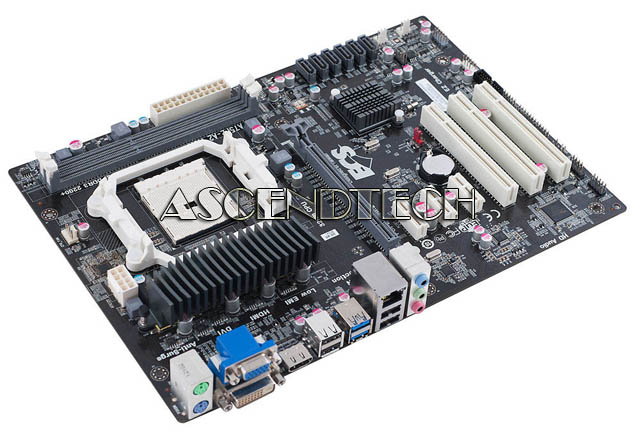

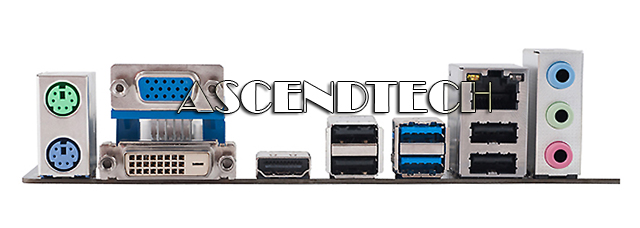

ECS A75F2-A2 Socket FM2 DDR3 SATA3 USB 3.0 AMD A75 Express Chipset HDMI DVI VGA Out 1xPCI-Express X16 Gen 2.0, 3xPCI-Express X1 Gen 2.0 & 3xPCI Slots Desktop Motherboard. The ECS motherboard is based on AMD A75 express chipset for best desktop platform. A75 is a single-chip, highly integrated. The memory controller supports DDR3 memory DIMM frequencies of 2200+(OC)/1866/1600/1333. It supports two DDR3 slots with maximum memory size of 32 GB. One PCI Express x16 slot, intended for Graphics Interface, is fully compliant to the PCI Express Gen2 (version 2.0). In addition, three PCI Express x1 slots and three PCI slots are supported. It integrates USB 2.0 and USB 3.0 interface, supporting up to eight USB 2.0 ports (four USB 2.0 ports and two USB 2.0 headers support additional four USB 2.0 ports) and four USB 3.0 ports (two USB 3.0 ports at the rear panel and one USB 3.0 header supports additional two USB 3.0 ports). The gray USB 2.0 header provides EZ charger technology, please refer to Front Panel USB headers of chapter 2 for more details. There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, one DVI port, one D-SUB (VGA) port, on HDMI port, four USB 2.0 ports and two USB 3.0 ports, one LAN port and audio jacks for microphone, line in and line-out.

Specifications:

Features:

• 3+2 Phase Power Design
• Applied 100% Solid capacitor design to maximize component reliability
• ECS Durathon Technology ensure the stability, reliability and performance of system.
(Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
• ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
• Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
• ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
• ECS MIB III - A friendly interface for overclocking
• Integrated Printer (LPT) port / header to expand functionality
• Microsoft Windows 8 Certified
• Supports DirectX® 11 to enhance graphical performance
• Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
• Supports AMD UVD 3.0 Engine
• Supports AMD Turbo Core Technology
• Supports AMD Turbo Core Technology
• Supports AMD Dual Graphics Technology
• Supports AMD FM2 APU
• Supports AMP (AMD Memory Profile)
• ECS Intelligent EZ Utility : eBLU, eDLU, eSF

CPU Support List:
