ECS A75F2-M FM2 DDR3 SATA6 USB3.0 AMD MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

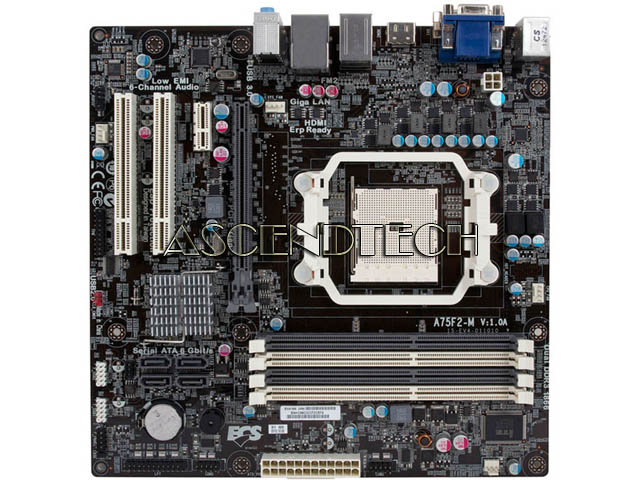

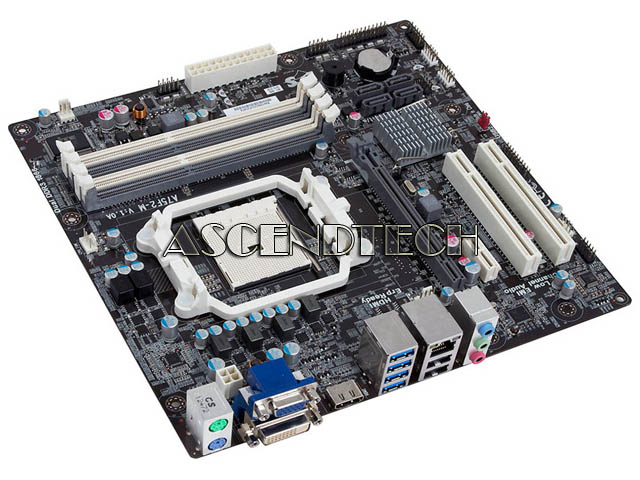

Ecs A75f2-M Fm2 Ddr3 Sata6 Usb3.0 Amd Mb. Model: A75f2-M (V1.0A) Amd A75
  Enlarge
Ecs A75f2-M Fm2 Ddr3 Sata6 Usb3.0 Amd Mb. Model: A75f2-M (V1.0A) Amd A75
Ecs A75f2-M Fm2 Ddr3 Sata6 Usb3.0 Amd Mb. Model: A75f2-M (V1.0A) Amd A75
Ecs A75f2-M Fm2 Ddr3 Sata6 Usb3.0 Amd Mb. Model: A75f2-M (V1.0A) Amd A75
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSA75F2MV10A
Brand Ecs - Elitegroup
Model A75F2-M (V1.0A) AMD A75
Category Amd Socket Fm2 Motherboards

Description

ECS A75F2-M V1.0A FM2 AMD A75 Hudson D3 HDMI SATA 6Gb/s USB 3.0 Micro ATX Motherboard. ECS meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.





CPU

º Supports AMD® FM2 socket for AMD® A series, E Series processors
º High Performance AMD HyperTransport 3.0 CPU Interface
º 100% Solid capacitor design
º Please refer to CPU support list for details

CHIPSET

º AMD® A75

GRAPHICS

º Supports DirectX® 11 .1
º Supports HDMI 1.4a & Premium Audio

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1866/1800/1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
º 4 X 240-pin DDR3 DIMM socket
º Support up to 64 GB*
º * Due to the DRAM maximum size is 8 GB at present
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
º * Due to AMD CPU spec limitation, please refer to Memory QVL for more information.
º Note:Please refer to the latest Memory support list for details

EXPANSION SLOT

º 1 X PCI Express X16 Gen 2.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0slot(s)
º 2 X PCI slot(s)

Storage

º Support by AMD A75 Express Chipset
    • 4 X Serial ATAIII 6Gb/s
    • RAID0, RAID1,RAID10 configuration

Audio

º 6-Channel HD audio CODEC
º Realtek ALC662 6-channel High Definition audio CODEC
º Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D™, A3D™, I3DL2

LAN

º Realtek 8111DP Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by A75 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 4 port(s)
    • 6 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 2 port(s)
      Onboard 4 port(s)

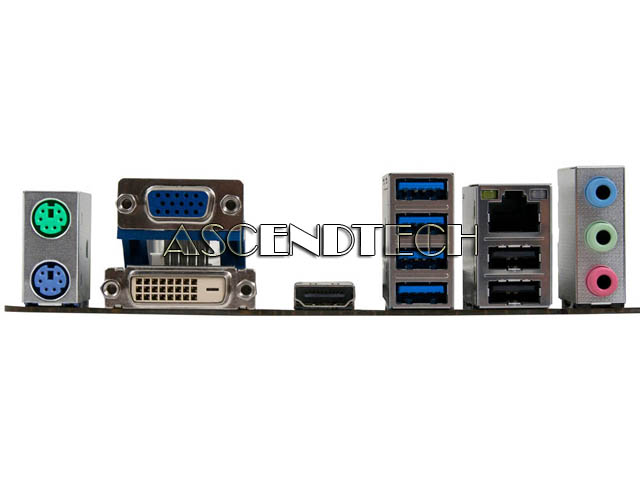

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 4 X USB3.0 port(s)
º 2 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 4-pin SYS_FAN connector with smart fan
º 1 X 3-pin PWR_FAN connector
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º 4 X SATA III 6Gb/s connector(s)
º 2 X Serial port header (COM)
º 1 X Parallel port header (LPT)

SYSTEM BIOS

º AMI BIOS with 32 MB SPI Flash ROM
º F11 hot key for boot up devices option
º Triple Display
º Multi-Language BIOS

FORM FACTOR

º mATX Form Factor
º 244mm(W) X 244mm(H)

OS Support

º Windows XP 32-bit
º Windows XP 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification



* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.



Socket

Family

Processor

P/N Number

Wattage

Frequency

L2 Cache

L3 Cache

Stepping

Since BIOS

Socket FM2

AMD A10-5800K Series

5800K

AD580KWOA44HJ

100W

3.80GHz

4MB

N/A

A1

03/15/2013

Socket FM2

AMD A10-5700 Series

5700

AD5700OKA44HJ

65W

3.40GHz

4MB

N/A

A1

03/15/2013

Socket FM2

AMD A8-5600K Series

5600K

AD560KWOA44HJ

100W

3.60GHz

4MB

N/A

A1

03/15/2013

Socket FM2

AMD A8-5500 Series

5500

AD5500OKA44HJ

65W

3.20GHz

4MB

N/A

A1

03/15/2013

Socket FM2

AMD A6-5400K Series

5400K

AD540KOKA23HJ

65W

3.60GHz

2MB x4

N/A

A1

03/15/2013

Socket FM2

AMD A4-5300 Series

5300

AD5300OKA23HJ

65W

3.40GHz

2MB x4

N/A

A1

03/15/2013

Socket FM2

AMD Athlon™ X4

730X

AD730XOKA44HJ

65W

2.80GHz

4MB

N/A

A1

03/15/2013

Socket FM2

AMD Athlon™ X4

740X

AD740XOKA44HJ

65W

3.20GHz

4MB

N/A

A1

03/15/2013

Socket FM2

AMD Athlon™ X4

750K

AD750KWOA44HJ

100W

3.40GHz

4MB

N/A

A1

03/15/2013

Socket FM2

AMD Athlon™ X4

760K

AD760KWOA44HL

100W

3.80GHz

2MB x2

N/A

A1

04/18/2013

Socket FM2

AMD Athlon™ X2

370K

AD370KOKA23HL

65W

4.00GHz

1MB x2

N/A

A1

04/18/2013
