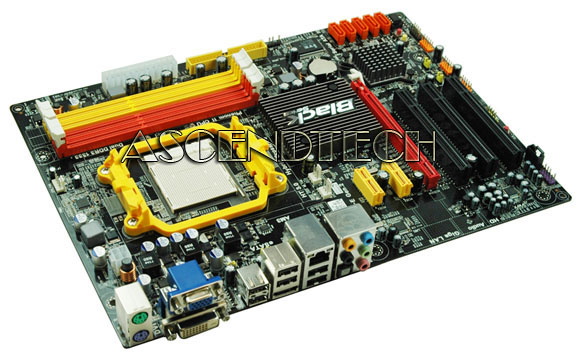

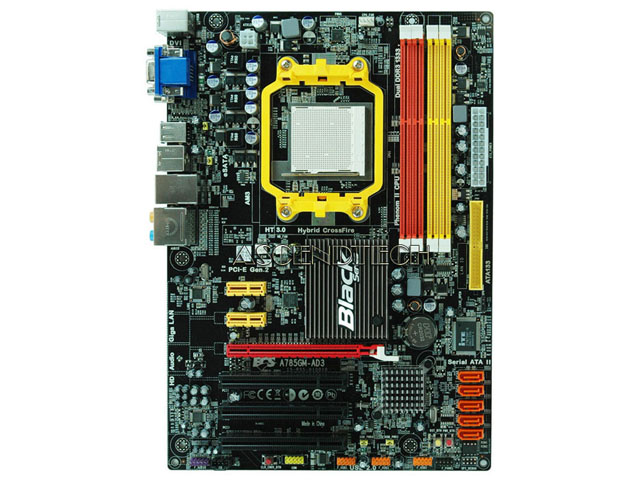

ECS Black Series A785GM-AD3 V1.0 AM3 AMD 785G ATX Motherboard. The latest ECS Black Series A785GM-AD3 motherboard is based on the best combination of the new AMD 785G and SB710 chipset plus support for the latest Phenom™ II processor (Socket AM3) and support processors up to HT 5200 MT/s with Hyper Transport™ 3.0 technology links and it integrated DDR3 1600 * memory controller on the latest AM3 platform. It features convenient Multimedia DVI+VGA display output interfaces and combined with ECS M.I.B.II and eJIFFY special function. A785GM-AD3 is the best choice for gaming and media experience. *(Whether 1600 MHz memory speed is supported depends on the CPU being used.)

Features:

MIB II	ECS’s exclusive BIOS tweaking utility, M.I.B. II (Motherboard Intelligent BIOS II), which has gathered all options of overclocking in a single page, provides higher voltage capability for helping users to achieve better overclocking results.
15μ Gold Contact	ECS 15μ gold technique contains 15μ gold contact on CPU socket and Memory slot pins. It offers 3 times extra anti-oxidation, temperature resistant and scrape protection to ensure motherboards longest lifespan, better reliability and excellent contact.
AMD Overdrive	The AMD OverDrive™ utility provides advanced system monitoring and amazing overclocking control options which allow users to directly tune the system performance in real-time under windows operation system
Over-Clocking	Maximizes your system performance by selecting from these overclocking options: (1) Flexible voltage adjustments (2) Adjustable ratio and Freq
ECS "Special ACC" Technology	ECS "Special ACC"technology provides stable unlocking of hidden cores within the AMD Phenom II and even Sempron 140 processors.It offers instant benefit of additional CPU cores without additional cost for improved performance in multithreaded applications. Users can enable/turn-off this feature by BIOS at will for added flexibility to suit the application needs. Special ACC is supported on ECS motherboards with ACC (Advanced Clock Calibration) using the AMD SB710 or SB750 Southbridge.
Socket AM3	The latest socket AM3 supports AMD’s AM3 processors which have featured the integrated memory controller for DDR3 memory that provides much higher bandwidth to enhance the overall system performance.
Dual DDR3 1600 OC	Overclocking memory to achieve 1600MHz instead of origin memory speed for doubling the bandwidth of your system memory up to 25.6 GB/s.
8 Channel High Definition Audio	Integrated 8-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.

Specifications:

CPU	º Support 95W Phenom™ II X6 processors º Support AM3 socket for AMD Phenom™ II processors º High-performance HyperTransport 3.0 CPU Interface º Support transfer rate up to 5200 mega-transfers per second º Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.
CHIPSET	º AMD^® 785G & AMD^® SB710 º North Bridge: AMD^® 785G º South Bridge: AMD^® SB710
GRAPHICS	º On Chip (AMD 785G-based with ATI™ Radeon HD4200 graphics ) º Integrated DirectX10.1 graphics processor º Share Memory: Maximum up to 512MB
MEMORY	º Dual-channel DDR3 memory architecture º 4 x 240-pin DDR3 DIMM socket support up to 32GB per one DIMM support 8GB º Support DDR3 OC1600/1333/1066/800 DDR3 SDRAM º (Due to the DRAM maximum size is 2GB at present, the memory maximum size we have tested is 4GB) º (Due to AMD CPU spec limitation, please refer to Memory QVL for more information) Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT	º 1 x PCI Express x16 slot º 2 x PCI Express x1 slots º 3 x PCI slots
STORAGE	º Support by AMD^® SB710 • 2 x Ultra DMA133/100/66 devices • 5 x Serial ATA 3.0Gb/s devices • 1 x eSATA 3Gb/s port • RAID0, RAID1, RAID10 configuration
AUDIO	º Realtek ALC 888S supports 8-channel HD audio º Realtek ALC662 6-channel HD Audio codec(optional) º Compliant with HD audio specification
LAN	º RealTek 8111DL Gigabit Fast Ethernet

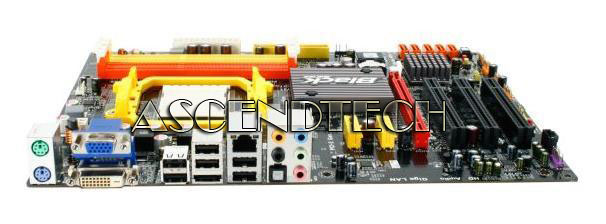

REAR PANEL I/O	º 1 x PS/2 keyboard & PS/2 mouse connectors º 1 x D-sub(VGA) º 1 x DVI connector º 1 x RJ45 LAN connector º 1 x Audio port (1x Line in, 4x Line out, 1x Optical SPDIF Out) º 1 x External SATA port º 6 x USB 2.0 ports
INTERNAL I/O CONNECTORS & HEADERS	º 1 x 24-pin ATX Power Supply connector º 1 x 4-pin CPU_FAN connector º 1 x 3-pin NB_FAN connector º 1 x 3-pin SYS_FAN connector º 1 x Power on button º 1 x Reset button º 1 x IDE connector º 1 x Speaker header º 1 x Front panel switch/LED header º 1 x Front panel audio header º 1 x Clear CMOS button º 1 x CD in header º 5 x Serial ATA connectors º 3 x USB 2.0 headers support additional 6 USB ports º 1 x Chassis intrusion header º 1 x 4-pin 12V Connector º 1X Power on LED (Green light) º 1X Stand by LED (Red Light)
SYSTEM BIOS	º AMI BIOS with 8Mb SPI Flash ROM º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Supports ACPI & DMI º Supports CPU FSB adjustment, increase of 1MHz º Supports PCI interrupt selection º Audio, LAN, can be disabled in BIOS º F11 hot key for boot up devices option º Support over-clocking º Supports Page Up clear CMOS Hotkey º Support ECS M.I.B II Utility • CPU voltage adjustable • Memory voltage adjustable • NB Chipset Voltage Adjustable • SB Chipset Voltage Adjustable • External Clock Adjustable • Multiple Frequency Adjustable by CPU
FORM FACTOR	º ATX Size, 305mm*220mm

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	P/N Number	Wattage	Frequency	L2 Cache	L3 Cache	Stepping	Since BIOS
Socket AM3	AMD Phenom™ II X6 Six-Core	1035T	HDT35TWFK6DGR	95W	2.60GHz	512KB x6	N/A	E0	04/09/2010
Socket AM3	AMD Phenom™ II X6 Six-Core	1045T	HDT45TWFK6DGR	95W	2.70GHz	512KB x6	N/A	E0	04/09/2010
Socket AM3	AMD Phenom™ II X6 Six-Core	1055T	HDT55TFBK6DGR	95W	2.80GHz	512KB x6	N/A	E0	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	805	HDX805WFK4FGI	95W	2.50GHz	512KB x4	4MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	810	HDX810WFK4FGI	95W	2.60GHz	512KB x4	4MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	820	HDX820WFK4FGI	95W	2.80GHz	512KB x4	4MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	840T	HD840TWFK4DGR	95W	2.90GHz	512KB x4	6MB	E0	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	900e	HD900EOCK4DGI	65W	2.40GHz	512KB x4	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	900e	HD900EOCK4DGI	65W	2.40GHz	512KB x4	N/A	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	905e	HD905EOCK4DGI	65W	2.50GHz	512KB x4	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	905e	HD905EOCK4DGM	65W	2.50GHz	512KB x4	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	910	HDX910WFK4DGI	95W	2.60GHz	512KB x4	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	910e	HD910EOCK4DGM	65W	2.60GHz	512KB x4	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	925	HDX925WFK4DGI	95W	2.80GHz	512KB x4	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	925	HDX925WFK4DGM	95W	2.80GHz	512KB x4	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	945	HDX945WFK4DGI	95W	3.00GHz	512KB x4	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	945	HDX945WFK4DGM	95W	3.00GHz	512KB x4	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	955	HDX955WFK4DGM	95W	3.20GHz	512KB x4	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X4 Quad-Core	960T	HD96ZTWFK4DGR	95W	3.00GHz	512KB x4	N/A	E0	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	700e	HD700EOCK3DGI	65W	2.40GHz	512KB x3	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	700e	HD700EOCK3DGI	65W	2.40GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	705e	HD705EOCK3DGI	65W	2.50GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	710	HDX710WFK3DGI	95W	2.60GHz	512KB x3	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	715 (BE)	HDZ715WCJ3DGI	95W	2.70GHz	512KB x3	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	720	HDX720WFK3DGI	95W	2.80GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	720 (BE)	HDZ720WFK3DGI	95W	2.80GHz	512KB x3	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	720 (BE)	HDZ740WFK3DGI	95W	2.80GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Phenom™ II X3 Triple-Core	740 (BE)	HDZ720WFK3DGI	95W	3.00GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Phenom™ II X2 Dual-Core	545	HDX545WFK2DGI	95W	3.00GHz	512KB x2	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X2 Dual-Core	545	HDX545WFK2DGM	95W	3.00GHz	512KB x2	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X2 Dual-Core	550	HDZ550WFK2DGI	95W	3.10GHz	512KB x2	6MB	C2	04/09/2010
Socket AM3	AMD Phenom™ II X2 Dual-Core	550	HDX550WFK2DGM	95W	3.10GHz	512KB x2	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X2 Dual-Core	555	HDZ555WFK2DGM	95W	3.20GHz	512KB x2	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X2 Dual-Core	560	HDZ560WFK2DGM	95W	3.30GHz	512KB x2	6MB	C3	04/09/2010
Socket AM3	AMD Phenom™ II X2 Dual-Core	565	HDZ565WFK2DGM	95W	3.40GHz	512KB x2	6MB	C3	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	600e	AD600EHDK42GI	45W	2.20GHz	512KB x4	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	605e	AD605EHDK42GI	45W	2.30GHz	512KB x4	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	605e	AD605EHDK42GM	45W	2.30GHz	512KB x4	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	610e	AD610EHDK42GM	45W	2.40GHz	512KB x4	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	615e	AD615EHDK42GM	45W	2.50GHz	512KB x4	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	620	ADX620WFK42GI	95W	2.60GHz	512KB x4	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	630	ADX630WFK42GI	95W	2.80GHz	512KB x4	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	630	ADX630WFK42GM	95W	2.80GHz	512KB x4	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	635	ADX635WFK42GI	95W	2.90GHz	512KB x4	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	635	ADX635WFK42GM	95W	2.90GHz	512KB x4	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	640	ADX640WFK42GM	95W	3.00GHz	512KB x4	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X4 Quad-Core	650	ADX650WFK42GM	95W	3.20GHz	512KB x4	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	400e	AD400EHDK32GI	45W	2.20GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	400e	AD400EHDK42GI	45W	2.20GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	405e	AD405EHDK32GI	45W	2.30GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	405e	AD405EHDK32GM	45W	2.30GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	415e	AD415EHDK32GM	45W	2.50GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	420e	AD420EHDK32GM	45W	2.60GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	425	ADX425WFK32GI	95W	2.70GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	435	ADX435WFK32GI	95W	2.90GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	435	ADX435WFK32GM	95W	2.90GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	440	ADX440WFK32GI	95W	3.00GHz	512KB x3	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	440	ADX440WFK32GM	95W	3.00GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	445	ADX445WFK32GM	95W	3.10GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	450	ADX450WFK32GM	95W	3.20GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	455	ADX455WFK32GM	95W	3.30GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X3 Triple-Core	460	ADX460WFK32GM	95W	3.40GHz	512KB x3	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	215	ADX215OCK22GQ	65W	2.70GHz	512KB x2	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	215	ADX215OCK22GM	65W	2.70GHz	512KB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	220	ADX220OCK22GM	65W	2.80GHz	512KB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	225	ADX225OCK22GM	65W	2.90GHz	512KB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	235e	AD235EHDK23GQ	45W	2.70GHz	1MB x2	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	240	ADX240OCK23GQ	65W	2.80GHz	1MB x2	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	240e	AD240EHDK23GQ	45W	2.80GHz	1MB x2	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	240e	AD240EHDK23GM	45W	2.80GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	245	ADX245OCK23GQ	65W	2.90GHz	1MB x2	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	245	ADX245OCK23GM	65W	2.90GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	245e	AD245EHDK23GM	45W	2.90GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	250	ADX250OCK23GQ	65W	3.00GHz	1MB x2	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	250	ADX250OCK23GM	65W	3.00GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	250e	AD250EHDK23GM	45W	3.00GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	255	ADX255OCK23GQ	65W	3.10GHz	1MB x2	N/A	C2	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	255	ADX255OCK23GM	65W	3.10GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	260	ADX260OCK23GM	65W	3.20GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	260u	AD260USCK23GM	25W	1.80GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	265	ADX265OCK23GM	65W	3.30GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	270	ADX270OCK23GM	65W	3.40GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	275	ADX275OCK23GM	65W	3.50GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Athlon™ II X2 Dual-Core	280	ADX280OCK23GM	65W	3.60GHz	1MB x2	N/A	C3	04/09/2010
Socket AM3	AMD Sempron™	140	SDX140HBK13GQ	45W	2.70GHz	1MB	N/A	C2	04/09/2010
Socket AM3	AMD Sempron™	145	SDX145HBK13GM	45W	2.80GHz	1MB	N/A	C3	04/09/2010
