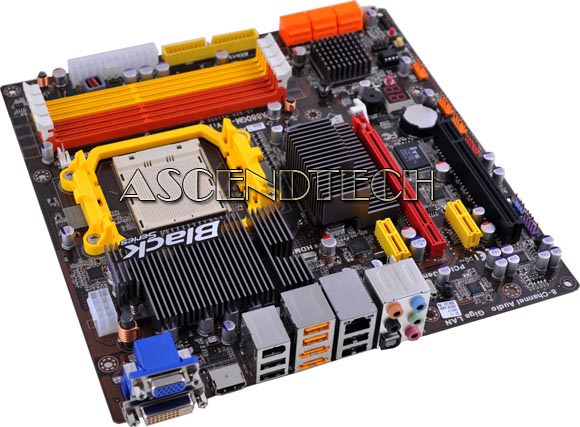

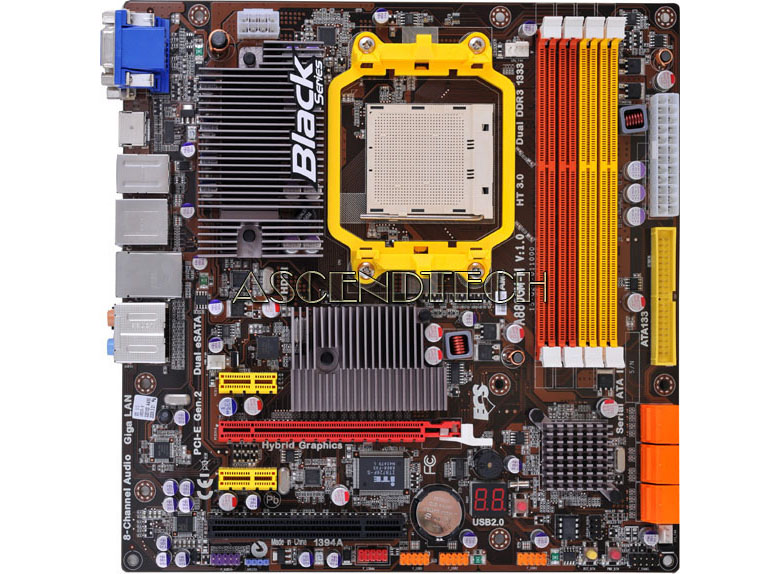

A785GM-M V1.0 | Ecs A785gm-M V1.0 Amd Am3 Motherboard

ECS Black Series A785GM-M V1.0 AMD Chipset 785G Socket AM3 DDR3 Micro-ATX Motherboard. The latest ECS Black Series A785GM-M is based on the AMD 785G chipset with 140W Phenom II processor (Socket AM3) support. The A785GM-M is integrated with ATI Radeon HD 4200 graphics IGP, which includes AMD Hybrid Crossfire technology and DirectX 10.1 capabilities. For better Home Theater solution, A785GM-M features convenient Multimedia HDMI+DVI+VGA display output interfaces, and RealTek ALC888S 7.1CH High Definition audio with Digital Optical Output. A785GM-M is covered with all brand new and extra size Titanium Heatsink in MOS, NB and SB to focus on Silent Cooling. Combined with ECS M.I.B.II and eJIFFY special function,A785GM-M speeds up overclocking fine tune and fast boot to receive eMail or other applications without additional cost. ECS A785GM-M builds a perfect media center for users, providing the complete applications.

Features:

M.I.B. II	ECS’s exclusive BIOS tweaking utility, M.I.B. II (Motherboard Intelligent BIOS II), which has gathered all options of overclocking in a single page, provides higher voltage capability for helping users to achieve better overclocking results.
Black Series	ECS Black Series stand for amazing power and astonishing quality product with best price/performance ratio. Targeting performance segment, ECS Black Series embrace unprecedented innovative technologies to offer phenomenal over clocking ability and features plenty of exclusive powerful technologies to accomplish enthusiasts and gamers desire.
All Solid Capacitors	ECS’s All-Solid-Capacitors design brings the great benefit of better durability to users. Better conductivity and heat resistance can be expected as well thus the system stability can be assured under critical conditions.
AMD Overdrive	The AMD OverDrive™ utility provides advanced system monitoring and amazing overclocking control options which allow users to directly tune the system performance in real-time under windows operation system
Over-Clocking	Maximizes your system performance by selecting from these overclocking options: (1) Flexible voltage adjustments (2) Adjustable ratio and Freq
Dual Channel DDR3 1333(OC)	Doubles the bandwidth of your system memory up to 21.0GB/s and pumps up the system performance at lower power.
ATI Hybrid Graphics Technology	To provide better gaming performance than a single graphics card, the innovative design of ATIª Hybrid Graphics Technology is capable to bring additional performance increase up to 1.75X by enabling the power of both integrated graphics core and the add-on graphics card simultaneously.
RAID 0, 1, 10	Supports RAID 0(Striped disk array), RAID 1(Mirroring disk array), RAID 10 (A Stripe of Mirrors). Provides users the performance and protection.
8 Channel High Definition Audio	Integrated 8-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
Ultra I/O Rear Panel	One eSATA port provides almost over 2 times transferring speed than USB 2.0 high-speed port. 6 USB 2.0 high-speed ports on rear panel makes users more convenient to connect more PC peripherals.
eSATA	The signal quality and the Max cable length is 2x longer than the conventional one. It also supports external HDD hot plug and keyed connector end for fool-proof.
HDMI	The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
DVI Output	A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.
Gigabit LAN	Delivers transfer speed ten times faster than conventional 10/ 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.

Specifications:

CPU	º Support AM3 socket for AMD Phenom II processors º Support 125W Phenom II X6 processors º Support transfer rate up to 5200 mega-transfers per second º High-performance HyperTransport 3.0 CPU Interface
CHIPSET	º AMD 785G & AMD SB710 º North Bridge: AMD 785G º South Bridge: AMD SB710
GRAPHICS	º On Chip (AMD 785G-based with ATI Radeon HD4200 graphics ) º Integrated DirectX10.1 graphics processor º Share Memory: Maximum up to 512MB
MEMORY	º Dual-channel DDR3 memory architecture º 4 x 240-pin DDR3 DIMM socket support up to 32GB per one DIMM support 8GB º Support DDR3 1333/1066/800 SDRAM º Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 16GB º Due to AMD CPU spec limitation, please refer to Memory QVL for more information º Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT	º 1 x PCI Express x16 slot º 2 x PCI Express x1 slots º 1 x PCI slot
STORAGE	º Support by AMD SB710 • 2 x Ultra DMA 100/66/33 devices • 6 x Serial ATA 3.0Gb/s devices • RAID0, RAID1, RAID10 configuration º Support by JMicron JMB362 • 2 x eSATAII 3.0Gb/s devices
AUDIO	º Realtek ALC 888S supports 8-channel HD audio º Compliant with HD audio specification
LAN	º RealTek 8111DL Gigabit Fast Ethernet

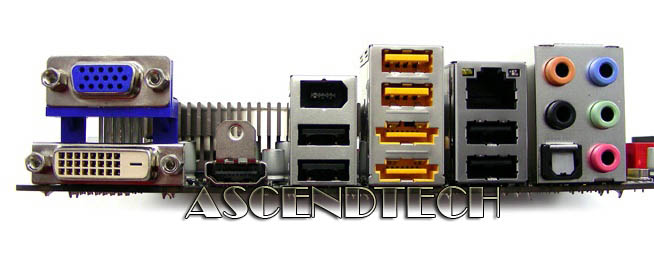

REAR PANEL I/O	º 6 x USB 2.0 ports º 1 x Gigabit Ethernet Port º 1 x 1394a port º 2 x eSATA 6.0Gb/s ports º 1 x Audio port (1x Line in, 4x Line out, 1x Optical SPDIF Out) º 1 x VGA port º 1 x DVI connector º 1 x HDMI Port
INTERNAL I/O CONNECTORS & HEADERS	º 1 x 24-pin ATX Power Supply Connector & 8-pin 12V Connector º 1 x 8-pin ATX 12V Power Connector º 1 x CPU_FAN connector º 1 x PWR_FAN connector º 1 x SYS Fan header º 1 x IDE connector º 6 x Serial ATA 3Gb/s connectors º 1 x 7S-LED Display º 1 x Buzzer º 1 x Front panel switch/LED header º 1 x Front panel audio header º 1X Stand by LED (Red Light) º 1X Power on LED (Green light) º 1 x SPDIF out header º 1 x 1394a header º 3 x USB 2.0 headers support additional 6 USB ports º 1 x Power button/1 x Reset button º 1 x Clear CMOS button
SYSTEM BIOS	º AMI BIOS with 8Mb SPI ROM º Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI,HDCP º Supports ACPI 3.0 & DMI º Support ECS M.I.B II Utility • CPU voltage adjustable • Memory voltage adjustable • NB Chipset Voltage Adjustable • SB Chipset Voltage Adjustable • HT Voltage Adjustable • External Clock Adjustable • Multiple Frequency Adjustable by CPU º ECS eJIFFY utility • Instant access to the internet • Leaves away from virus attacks under Windows • An alternative interface when Windows crashes • FREE and UPGRADABLE tool • Just download the application & BIOS from ECS
FORM FACTOR	º Micro-ATX Size, 244mm*244mm

CPU Support List:

Socket	Family	Processor	P/N Number	Wattage	Frequency	L2 Cache	L3 Cache	Stepping	Since BIOS
Socket AM3	AMD Phenom II X6 Six-Core	1035T	HDT35TWFK6DGR	95W	2.60GHz	512KB x6	6MB	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1035T	HDT35TWFK6DGR	95W	2.60GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1045T	HDT45TWFK6DGR	95W	2.70GHz	512KB x6	6MB	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1045T	HDT45TWFK6DGR	95W	2.70GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1055T	HDT55TWFK6DGR	95W	2.80GHz	512KB x6	6MB	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1055T	HDT55TWFK6DGR	95W	2.80GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1055T	HDT55TFBK6DGR	125W	2.80GHz	512KB x6	6MB	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1055T	HDT55TFBK6DGR	125W	2.80GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1065T	HDT65TWFK6DGR	95W	2.90GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1075T	HDT75TFBK6DGR	125W	3.00GHz	512KB x6	6MB	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1075T	HDT75TFBK6DGR	125W	3.00GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1090T (BE)	HDT90ZFBK6DGR	125W	3.20GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	1100T (BE)	HDE00ZFBK6DGR	125W	3.30GHz	512KB x6	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X6 Six-Core	805	HDX805WFK4FGI	95W	2.50GHz	512KB x6	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	805	HDX805WFK4FGI	95W	2.50GHz	512KB x4	4MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	810	HDX810WFK4FGI	95W	2.60GHz	512KB x4	4MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	820	HDX820WFK4FGI	95W	2.80GHz	512KB x4	4MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	840	HDX840WFK42GM	95W	3.20GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	840T	HD840TWFK4DGR	95W	2.90GHz	512KB x4	6MB	E0	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	850	HDX850WFK42GM	95W	3.30GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	900e	HD900EOCK4DGI	65W	2.40GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	900e	HD900EOCK4DGI	65W	2.40GHz	512KB x4	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	905e	HD905EOCK4DGI	65W	2.50GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	905e	HD905EOCK4DGM	65W	2.50GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	910	HDX910WFK4DGI	95W	2.60GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	910e	HD910EOCK4DGM	65W	2.60GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	925	HDX925WFK4DGI	95W	2.80GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	925	HDX925WFK4DGM	95W	2.80GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	945	HDX945WFK4DGI	95W	3.00GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	945	HDX945WFK4DGM	95W	3.00GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	945	HDX945FBK4DGI	125W	3.00GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	955	HDX955WFK4DGM	95W	3.20GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	955	HDX955FBK4DGI	125W	3.20GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	955	HDX955FBK4DGM	125W	3.20GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	955 (BE)	HDZ955FBK4DGI	125W	3.20GHz	512KB x4	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	955 (BE)	HDZ955FBK4DGM	125W	3.20GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	960	HDX960WFK4DGM	95W	3.30GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	960T	HD96ZTWFK4DGR	95W	3.00GHz	512KB x4	N/A	E0	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	965 (BE)	HDZ965FBK4DGI	140W *	3.40GHz	512KB x4	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	965 (BE)	HDZ965FBK4DGM	125W	3.40GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X4 Quad-Core	975 (BE)	HDZ975FBK4DGM	125W	3.60GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II Quad-Core	925	HDX925WFK4DGM	95W	2.80GHz	512KB x4	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	700e	HD700EOCK3DGI	65W	2.40GHz	512KB x3	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	700e	HD700EOCK3DGI	65W	2.40GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	705e	HD705EOCK3DGI	65W	2.50GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	710	HDX710WFK3DGI	95W	2.60GHz	512KB x3	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	710	HDX710WFK3DGI	95W	2.60GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	715 (BE)	HDZ715WCJ3DGI	95W	2.70GHz	512KB x3	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	720	HDX720WFK3DGI	95W	2.80GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	720 (BE)	HDZ720WFK3DGI	95W	2.80GHz	512KB x3	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	720 (BE)	HDZ720WFK3DGI	95W	2.80GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X3 Triple-Core	740 (BE)	HDZ740WFK3DGI	95W	3.00GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	545	HDX545WFK2DGI	95W	3.00GHz	512KB x2	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	545	HDX545WFK2DGM	95W	3.00GHz	512KB x2	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	545	HDX545WFK2DGI	95W	3.00GHz	512KB x2	N/A	C2	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	550	HDZ550WFK2DGI	95W	3.10GHz	512KB x2	6MB	C2	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	550	HDX550WFK2DGM	95W	3.10GHz	512KB x2	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	555	HDZ555WFK2DGM	95W	3.20GHz	512KB x2	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	560	HDZ560WFK2DGM	95W	3.30GHz	512KB x2	6MB	C3	11/30/2010
Socket AM3	AMD Phenom II X2 Dual-Core	565	HDZ565WFK2DGM	95W	3.40GHz	512KB x2	6MB	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	600e	AD600EHDK42GI	45W	2.20GHz	512KB x4	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	605e	AD605EHDK42GI	45W	2.30GHz	512KB x4	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	605e	AD605EHDK42GM	45W	2.30GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	610e	AD610EHDK42GM	45W	2.40GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	615e	AD615EHDK42GM	45W	2.50GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	620	ADX620WFK42GI	95W	2.60GHz	512KB x4	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	630	ADX630WFK42GI	95W	2.80GHz	512KB x4	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	630	ADX630WFK42GM	95W	2.80GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	635	ADX635WFK42GI	95W	2.90GHz	512KB x4	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	635	ADX635WFK42GM	95W	2.90GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	640	ADX640WFK42GM	95W	3.00GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	645	ADX645WFK42GM	95W	3.10GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	650	ADX650WFK42GM	95W	3.20GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X4 Quad-Core	655	ADX655WFK42GM	95W	3.30GHz	512KB x4	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	400e	AD400EHDK32GI	45W	2.20GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	400e	AD400EHDK42GI	45W	2.20GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	405e	AD405EHDK32GI	45W	2.30GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	405e	AD405EHDK32GM	45W	2.30GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	415e	AD415EHDK32GM	45W	2.50GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	420e	AD420EHDK32GM	45W	2.60GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	425	ADX425WFK32GI	95W	2.70GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	435	ADX435WFK32GI	95W	2.90GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	435	ADX435WFK32GM	95W	2.90GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	440	ADX440WFK32GI	95W	3.00GHz	512KB x3	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	440	ADX440WFK32GM	95W	3.00GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	445	ADX445WFK32GM	95W	3.10GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	450	ADX450WFK32GM	95W	3.20GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	455	ADX455WFK32GM	95W	3.30GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X3 Triple-Core	460	ADX460WFK32GM	95W	3.40GHz	512KB x3	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	215	ADX215OCK22GQ	65W	2.70GHz	512KB x2	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	215	ADX215OCK22GM	65W	2.70GHz	512KB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	220	ADX220OCK22GM	65W	2.80GHz	512KB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	225	ADX225OCK22GM	65W	2.90GHz	512KB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	235e	AD235EHDK23GQ	45W	2.70GHz	1MB x2	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	240	ADX240OCK23GQ	65W	2.80GHz	1MB x2	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	240e	AD240EHDK23GQ	45W	2.80GHz	1MB x2	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	240e	AD240EHDK23GM	45W	2.80GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	245	ADX245OCK23GQ	65W	2.90GHz	1MB x2	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	245	ADX245OCK23GM	65W	2.90GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	245e	AD245EHDK23GM	45W	2.90GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	250	ADX250OCK23GQ	65W	3.00GHz	1MB x2	N/A	C2	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	250	ADX250OCK23GM	65W	3.00GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	250e	AD250EHDK23GM	45W	3.00GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	255	ADX255OCK23GM	65W	3.10GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	260	ADX260OCK23GM	65W	3.20GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	260u	AD260USCK23GM	25W	1.80GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	265	ADX265OCK23GM	65W	3.30GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	270	ADX270OCK23GM	65W	3.40GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	275	ADX275OCK23GM	65W	3.50GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Athlon II X2 Dual-Core	280	ADX280OCK23GM	65W	3.60GHz	1MB x2	N/A	C3	11/30/2010
Socket AM3	AMD Sempron	140	SDX140HBK13GQ	45W	2.70GHz	1MB	N/A	C2	11/30/2010
Socket AM3	AMD Sempron	140	SDX140HBK13GQ	45W	2.70GHz	1M	N/A	C2	11/30/2010
Socket AM3	AMD Sempron	145	SDX145HBK13GM	45W	2.80GHz	1M	N/A	C3	11/30/2010
Socket AM3	AMD Sempron	145	SDX145HBK13GM	45W	2.80GHz	1MB	N/A	C3	11/30/2010
Socket AM3	AMD Sempron	150	SDX150HBK13GM	45W	2.90GHz	1MB	N/A	C3	11/30/2010

ECS A785GM-M V1.0 AMD AM3 Motherboard

Description
