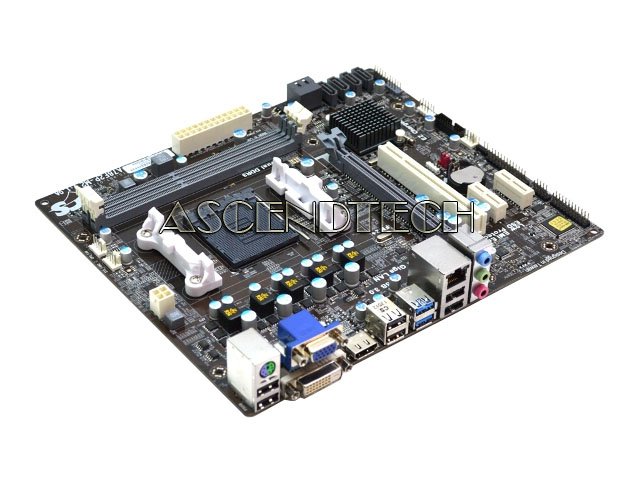

ECS A78F2P-M2 V1.0 ATX Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBECSA78F2PM2V1
Brand Ecs - Elitegroup
Model A78F2P-M2 V1.0
Category Amd Socket Fm2+ Motherboard
Condition New Open Box

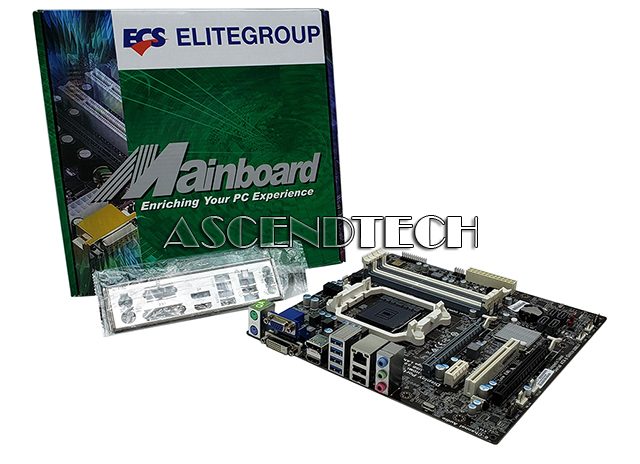

Condition Description Please Note Motherboard comes with I/O Panel Only
Description
ECS A78F2P-M V1.0 AMD A78 Chipset AMD FM2+ Socket DDR3L Micro ATX Motherboard.
ECS Model Number: A78F2P-M V1.0
Includes: I/O Panel Only
Features:
2-Way multi-graphics solution
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
ECS MIB III - A friendly interface for overclocking
Dual Display design for multiple output support
Microsoft Windows 8.1 Certified
Supports DirectX 11.1 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Supports Display Port 1.2 Technology
Supports AMD UVD 4.2 Engine
Supports AMD Dual Graphics Technology
Supports AMD FM2+ / FM2 APU
ECS Intelligent EZ Utility: eBLU, eDLU, eSF
ECS Model Number: A78F2P-M V1.0
Includes: I/O Panel Only
Features:
2-Way multi-graphics solution
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
ECS MIB III - A friendly interface for overclocking
Dual Display design for multiple output support
Microsoft Windows 8.1 Certified
Supports DirectX 11.1 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Supports Display Port 1.2 Technology
Supports AMD UVD 4.2 Engine
Supports AMD Dual Graphics Technology
Supports AMD FM2+ / FM2 APU
ECS Intelligent EZ Utility: eBLU, eDLU, eSF
| CPU | Supports AMD FM2+ socket for AMD A series, E Series processors |
| High Performance AMD HyperTransport 3.0 CPU Interface | |
| 4+2 Phase Thermal Design Power | |
| 100% Solid capacitor design | |
| Please refer to CPU support list for details | |
| CHIPSET | AMD A78 |
| GRAPHICS | Supports DirectX 11 .1 |
| Supports HDMI 1.4a & Premium Audio | |
| Supports ECS 4most display | |
| Integrated DP with up to 2560x1600 resolution | |
| Supports AMD Dual Graphics | |
| Supports Full HD 1080P Blu-ray / HD-DVD Playback | |
| MEMORY | Dual-channel DDR3 Memory architecture |
| Supports 2133(FM2+)/1866(FM2) non-ECC, Un-buffered SDRAM Memory | |
| 4 X 240-pin DDR3 DIMM socket | |
| Support up to 32 GB* | |
| EXPANSION SLOT | 1 X PCI Express X16 Gen 3.0 slot(s) |
| 1 X PCI Express X16 Gen 2.0 slot(s) | |
| runs at x4 | |
| 1 X PCI Express X 1 Gen 2.0 slot(s) | |
| *FM2+ APU support PCI Express Gen3, FM2 APU support PCI Express Gen2. | |
| 1 X PCI slot(s) | |
| STORAGE | Support by AMD A78 Express Chipset |
| 4 X Serial ATAIII 6Gb/s | |
| RAID0, RAID1,RAID10 configuration | |
| Supports NCQ, AHCI and "Hot Plug" functions | |
| AUDIO | 6-Channel HD audio CODEC |
| Compliant with HD audio specification | |
| Realtek ALC662 | |
| Realtek ALC662 6-channel High Definition audio CODEC | |
| Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs | |
| Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution | |
| Emulation of 26 sound environments to enhance gaming experience | |
| Voice Cancellation and Key Shifting in Karaoke mode | |
| Compatible with Direct Sound 3D, A3D, I3DL2 | |
| LAN | Realtek RTL8111EPV Gigabit Fast Ethernet Controller |
| Wake-On-LAN | |
| USB | Support by A78 Express Chipset |
| 4 X USB3.1 Gen1 port(s) up to 5Gb/s | |
| Back Panel 2 port(s) | |
| Onboard 2 port(s) | |
| 6 X USB2.0 port(s) Up to 480 Mb/s | |
| Back Panel 2 port(s) | |
| Onboard 4 port(s) | |
| Support by ASM1042 Controler | |
| 2 X USB3.1 Gen1 port(s) up to 5Gb/s | |
| Onboard 2 port(s) | |
| ECS EZ Charger (Gray USB header) | |

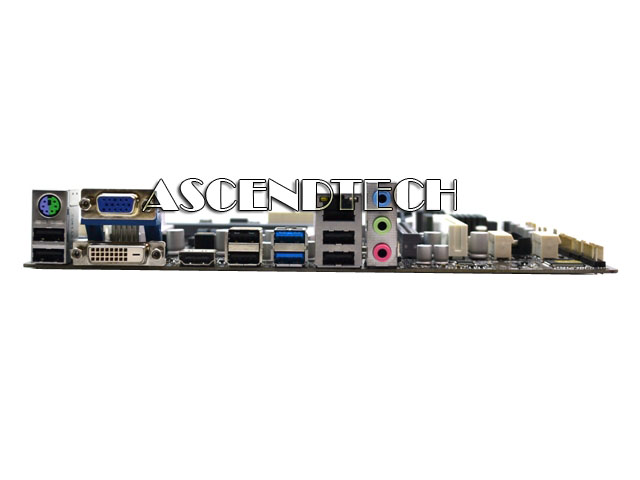

| REAR PANEL I/O | 1 X PS/2 Keyboard & PS/2 mouse connectors |
| 1 X Audio port (Line Out/Line In/Mic In) | |
| 1 X RJ-45 port | |
| 1 X HDMI port(s) | |
| 1 X DVI-D port(s) | |
| 1 X D-Sub (VGA) port(s) | |
| 1 X Display port | |
| 4 X USB3.1 Gen1 port(s) | |
| 2 X USB2.0 port(s) | |
| CONNECTORS & HEADERS | 1 X 24-pin ATX Power Supply connector |
| 1 X 4-pin Power Connector for Graphics | |
| 1 X 4-pin CPU_FAN connector | |
| 1 X 4-pin SYS_FAN connector | |
| 1 X Front Panel switch/LED header | |
| 1 X Front panel audio header | |
| 1 X Speaker header | |
| 1 X Onboard Buzzer | |
| 1 X USB 3.1 Gen1 header | |
| Support additional 2 USB ports | |
| 2 X USB 2.0 header | |
| Support additional 4 USB ports | |
| 4 X SATA III 6Gb/s connector(s) | |
| 1 X CLR_CMOS header | |
| 2 X Serial port header (COM) | |
| 1 X Parallel port header (LPT) | |
| 1 X TPM header | |
| 1 X Chassis intrusion header | |
| SYSTEM BOIS | AMI BIOS with 32 MB SPI Flash ROM |
| Supports M.I.B III Utility | |
| ACPI & DMI | |
| F7 hot key for boot up devices option | |
| Dual Display | |
| Support ECS EZ BIOS | |
| Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot | |
| Multi-Language BIOS | |
| Audio, LAN, can be disabled in BIOS | |
| Supports PgUp clear CMOS Hotkey | |
| FORM FACTOR | mATX Form Factor |
| 244mm(W)*244mm(H) |
| Socket | Family | Processor | P/N Number | Wattage | Frequency | L2 Cache | L3 Cache | Stepping | Since BIOS |
| Socket FM2+ | AMD A10-8800 Series | 8850B | AD885BXBI44JC | 95W | 3.90GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A10-7800 Series | 7850K | AD785KXBI44JA | 95W | 3.70GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2+ | AMD A10-7800 Series | 7860K | AD786KYBI44JC | 65W | 3.60GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A10-7800 Series | 7870K | AD787KXDI44JC | 95W | 3.90GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A10-7800 Series | 7890K | AD789KXDI44JC | 95W | 4.10GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A10-7800 Series | PRO-7800B | AD780BYBI44JA | 65W | 3.50GHz | 2MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A10-7800 Series | PRO-7850B | AD785BXBI44JA | 95W | 3.70GHz | 2MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A10-7700 Series | 7700K | AD770KXBI44JA | 95W | 3.40GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A10-5800K Series | 5800K | AD580KWOA44HJ | 100W | 3.80GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A10-5700 Series | 5700 | AD5700OKA44HJ | 65W | 3.40GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A10-6800 Series | 6800B | AD680BWOA44HL | 100W | 4.10GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A10-6800 Series | 6800K | AD680KWOA44HL | 100W | 4.10GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A10-6700 Series | 6700 | AD6700OKA44HL | 65W | 3.70GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A10-6700 Series | 6700T | AD670TYHA44HL | 45W | 2.50GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2+ | AMD A10-8700 Series | PRO-8750B | AD875BYBI44JC | 65W | 3.60GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A8-7600 Series | 7600B | AD760BYBI44JA | 65W | 3.10GHz | 4MB | N/A | A1 | 11/5/2014 |
| Socket FM2+ | AMD A8-7600 Series | 7670K | AD767KXBI44JC | 95W | 3.60GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A8-7600 Series | 7690K | AD769KXBI44JC | 95W | 3.70GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2 | AMD A8-6600 Series | 6600K | AD660KWOA44HL | 100W | 3.90GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A8-6500 Series | 6500 | AD6500OKA44HL | 65W | 3.50GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A8-6500 Series | 6500T | AD650TYHA44HL | 45W | 2.10GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A8-5600K Series | 5600K | AD560KWOA44HJ | 100W | 3.60GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A8-5500 Series | 5500 | AD5500OKA44HJ | 65W | 3.20GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2+ | AMD A6-7400 Series | 7400K | AD740KYBI23JA | 65W | 3.50GHz | 1MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A6-7400 Series | 7470K | AD747KYBI23JC | 65W | 3.70GHz | 1MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD A6-7400 Series | PRO-7400B | AD740BYBI23JA | 65W | 3.50GHz | 1MB | N/A | A1 | 4/26/2016 |
| Socket FM2 | AMD A6-6400 Series | 6400 | AD640KOKA23HL | 65W | 3.90GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A6-6400 Series | 6400B | AD640BOKA23HL | 65W | 3.90GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A6-5400K Series | 5400K | AD540KOKA23HJ | 65W | 3.60GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A4-6300 Series | 6300 | AD6300OKA23HL | 65W | 3.70GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A4-6300 Series | 6300B | AD630BOKA23HL | 65W | 3.70GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A4-5300 Series | 5300 | AD5300OKA23HJ | 65W | 3.40GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD A4-4000 Series | 4000 | AD4000OKA23HL | 65W | 3.00GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD Athlon X4 | 730X | AD730XOKA44HJ | 65W | 2.80GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD Athlon X4 | 740X | AD740XOKA44HJ | 65W | 3.20GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD Athlon X4 | 750K | AD750KWOA44HJ | 100W | 3.40Ghz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD Athlon X4 | 750X | AD750XOKA44HL | 65W | 3.40GHz | 4MB | N/A | A1 | 9/1/2014 |
| Socket FM2 | AMD Athlon X4 | 760K | AD760KWOA44HL | 100W | 3.80GHz | 1MB | N/A | A1 | 9/1/2014 |
| Socket FM2+ | AMD Athlon X4 | 870K | AD870KXBI44JC | 95W | 3.90GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2+ | AMD Athlon X4 | 880K | AD880KXBI44JC | 95W | 4.00GHz | 4MB | N/A | A1 | 4/26/2016 |
| Socket FM2 | AMD Athlon X2 | 370K | AD370KOKA23HL | 65W | 4.00GHz | 1MB | N/A | A1 | 9/1/2014 |
