ECS A880GM-M8 AMD 880G AM3 DDR3 Mboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

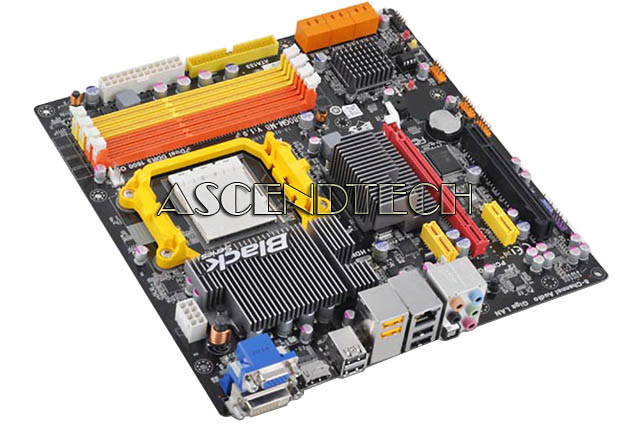

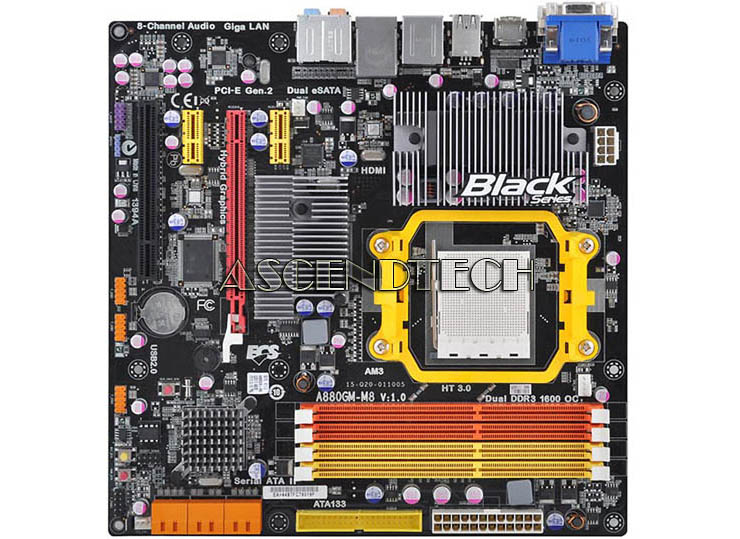

Ecs A880gm-M8 Amd 880G Am3 Ddr3 Mboard. Model: A880gm-M8 V1.0 Sb710
  Enlarge
Ecs A880gm-M8 Amd 880G Am3 Ddr3 Mboard. Model: A880gm-M8 V1.0 Sb710
Ecs A880gm-M8 Amd 880G Am3 Ddr3 Mboard. Model: A880gm-M8 V1.0 Sb710
Ecs A880gm-M8 Amd 880G Am3 Ddr3 Mboard. Model: A880gm-M8 V1.0 Sb710
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBAECSA880GMM8V
Brand Ecs - Elitegroup
Model A880GM-M8 V1.0 SB710
Category Amd Socket Am2+ Am3 Motherboards

Description

The A880GM-M8 Black series Motherboard based on the AMD880G and SB710 chipsets are features; including Realtek 8-HD audio with optical S/PDIF Out and four DDR3 DIMM slots carrying up to 16GB of DDR3 1600(OC) dual channel memory. The AMD 880G integrated Graphics Processing Unit (IGP) includes Hybrid GrossFire technology support, and DirextX 10.1 capabilities, as well as AMD UVD Technology for Blu-ray playback enhancements. The powerful onboard graphis bring quality graphics for a fraction of the price of dedicated GPU solutions. The A880GM-M8 Black Series from ECS is the ideal feature rich platform for the best value in gaming enthusiast rigs.







Specifications:

CPU º Support AM3 socket for AMD Phenom™ II processors
º Support 125W Phenom™ II X6 processors
º High-performance HyperTransport 3.0 CPU Interface
º Note: This board supports CPU up to 140W TDP ; you can refer to AMD website to check your CPU.
CHIPSETº AMD® 880G & AMD® SB710
º North Bridge: AMD® 880G
º South Bridge: AMD® SB710
GRAPHICSº On Chip(AMD 880G-based with ATI™ Radeon HD4250 graphics )
º Integrated DirectX10.1 graphics processor
º Share Memory: Maximum up to 512MB
MEMORYº Support DDR3 1600 (OC) SDRAM
º Support DDR3 up to 1600(OC)/1333/1066 DDR3 SDRAM
º 4 x 240-pin DDR3 DIMM socket support up to 16GB
º *(Due to AMD CPU spec limitation, please refer to Memory QVL for more information)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOTº 1 x PCI Express x16 Gen2.0 slot
º 2 x PCI Express x1 slots
º 1 x PCI slot
STORAGEº Support by AMD® SB710
    • 6 x Serial ATA 3.0Gb/s devices
    • RAID0, RAID1, RAID10 configuration
AUDIOº Realtek ALC 888S supports 8-channel HD audio
º Compliant with HD audio specification
LANº RealTek 8111DL Gigabit Fast Ethernet

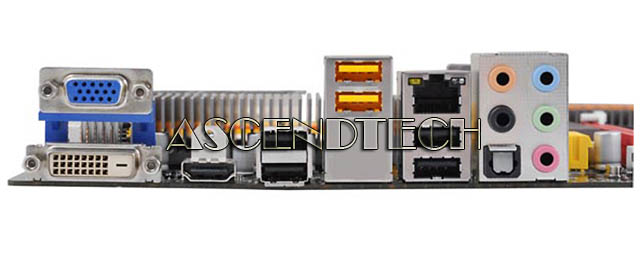

REAR PANEL I/Oº 1 x D-sub(VGA)
º 1 x HDMI Port
º 1 x optical S/PDIF Out connector
º 1 x DVI Port
º 6 x USB 2.0 ports
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERSº 1 x 24-pin ATX Power Supply connector
º 1 x 8-pin ATX 12V Power Connector
º 1 x 4-pin CPU_FAN connector
º 1 x 3-pin PWR_FAN connector
º 1 x 3-pin SYS_FAN connector
º 1 x Power on button
º 1 x Reset button
º 1 x IDE connector
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x Clear CMOS button
º 1X Power on LED (Green light)
º 1X Stand by LED (Red Light)
º 6 x Serial ATA 3Gb/s connectors
º 3 x USB 2.0 headers support additional 6 USB ports
º 1 x onboard Buzzer
SYSTEM BIOSº AMI BIOS with 8Mb SPI Flash ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Audio, LAN, can be disabled in BIOS
º F11 hot key for boot up devices option
º Support over-clocking
º Support eOC
º Supports eJIFFY
º Supports eDLU
º Supports eBLU
º Support ECS M.I.B II Utility
    • CPU voltage adjustable
    • Memory voltage adjustable
    • NB Chipset Voltage Adjustable
    • SB Chipset Voltage Adjustable
    • HT Voltage Adjustable
    • External Clock Adjustable
    • Multiple Frequency Adjustable by CPU
FORM FACTORº Micro-ATX Size, 244mm*244mm









CPU Support List:

Socket FamilyProcessorP/N NumberWattageFrequencyL2 CacheL3 CacheSteppingSince BIOS
Socket AM3AMD Phenom™ II X6 Six-Core1035THDT35TWFK6DGR95W2.60GHz512KB x66MBE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1035THDT35TWFK6DGR95W2.60GHz512KB x6N/AE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1045THDT45TWFK6DGR95W2.70GHz512KB x66MBE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1055THDT55TWFK6DGR95W2.80GHz512KB x66MBE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1055THDT55TWFK6DGR95W2.80GHz512KB x6N/AE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1055THDT55TFBK6DGR125W2.80GHz512KB x66MBE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1055THDT55TFBK6DGR125W2.80GHz512KB x6N/AE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1065THDT65TWFK6DGR95W2.90GHz512KB x6N/AE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1075THDT75TFBK6DGR125W3.00GHz512KB x66MBE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1090T (BE)HDT90ZFBK6DGR125W3.20GHz512KB x6N/AE009/06/2010
Socket AM3AMD Phenom™ II X6 Six-Core1100T (BE)HDE00ZFBK6DGR125W3.30GHz512KB x6N/AE009/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core805HDX805WFK4FGI95W2.50GHz512KB x44MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core810HDX810WFK4FGI95W2.60GHz512KB x44MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core820HDX820WFK4FGI95W2.80GHz512KB x44MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core840HDX840WFK42GM95W3.20GHz512KB x4N/AC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core840THD840TWFK4DGR95W2.90GHz512KB x46MBE009/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core850HDX850WFK42GM95W3.30GHz512KB x4N/AC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core900eHD900EOCK4DGI65W2.40GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core900eHD900EOCK4DGI65W2.40GHz512KB x4N/AC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core905eHD905EOCK4DGI65W2.50GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core905eHD905EOCK4DGM65W2.50GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core910HDX910WFK4DGI95W2.60GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core910eHD910EOCK4DGM65W2.60GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core925HDX925WFK4DGI95W2.80GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core925HDX925WFK4DGM95W2.80GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core945HDX945WFK4DGI95W3.00GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core945HDX945WFK4DGM95W3.00GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core945HDX945FBK4DGI125W3.00GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955HDX955WFK4DGM95W3.20GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955HDX955FBK4DGI125W3.20GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955HDX955FBK4DGM125W3.20GHz512KB x4N/AC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955 (BE)HDZ955FBK4DGI125W3.20GHz512KB x46MBC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955 (BE)HDZ955FBK4DGM125W3.20GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core960HDX960WFK4DGM95W3.30GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core960THD96ZTWFK4DGR95W3.00GHz512KB x4N/AE009/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core965 (BE)HDZ965FBK4DGI140W *3.40GHz512KB x4N/AC209/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core965 (BE)HDZ965FBK4DGM125W3.40GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X4 Quad-Core975 (BE)HDZ975FBK4DGM125W3.60GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II Quad-Core925HDX925WFK4DGM95W2.80GHz512KB x46MBC309/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core700eHD700EOCK3DGI65W2.40GHz512KB x36MBC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core700eHD700EOCK3DGI65W2.40GHz512KB x3N/AC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core705eHD705EOCK3DGI65W2.50GHz512KB x3N/AC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core710HDX710WFK3DGI95W2.60GHz512KB x36MBC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core710HDX710WFK3DGI95W2.60GHz512KB x3N/AC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core715 (BE)HDZ715WCJ3DGI95W2.70GHz512KB x36MBC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core720HDX720WFK3DGI95W2.80GHz512KB x3N/AC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core720 (BE)HDZ720WFK3DGI95W2.80GHz512KB x36MBC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core720 (BE)HDZ720WFK3DGI95W2.80GHz512KB x3N/AC209/06/2010
Socket AM3AMD Phenom™ II X3 Triple-Core740 (BE)HDZ740WFK3DGI95W3.00GHz512KB x3N/AC209/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core545HDX545WFK2DGI95W3.00GHz512KB x26MBC209/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core545HDX545WFK2DGM95W3.00GHz512KB x26MBC309/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core545HDX545WFK2DGI95W3.00GHz512KB x2N/AC209/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core550HDZ550WFK2DGI95W3.10GHz512KB x26MBC209/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core550HDX550WFK2DGM95W3.10GHz512KB x26MBC309/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core555HDZ555WFK2DGM95W3.20GHz512KB x26MBC309/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core560HDZ560WFK2DGM95W3.30GHz512KB x26MBC309/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core565HDZ565WFK2DGM95W3.40GHz512KB x26MBC309/06/2010
Socket AM3AMD Phenom™ II X2 Dual-Core570HDZ570WFK2DGM95W3.50GHz512KB x26MBC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core600eAD600EHDK42GI45W2.20GHz512KB x4N/AC209/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core605eAD605EHDK42GI45W2.30GHz512KB x4N/AC209/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core605eAD605EHDK42GM45W2.30GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core610eAD610EHDK42GM45W2.40GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core620ADX620WFK42GI95W2.60GHz512KB x4N/AC209/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core630ADX630WFK42GI95W2.80GHz512KB x4N/AC209/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core630ADX630WFK42GM95W2.80GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core635ADX635WFK42GI95W2.90GHz512KB x4N/AC209/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core635ADX635WFK42GM95W2.90GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core640ADX640WFK42GM95W3.00GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core645ADX645WFK42GM95W3.10GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core650ADX650WFK42GM95W3.20GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X4 Quad-Core655ADX655WFK42GM95W3.30GHz512KB x4N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core400eAD400EHDK42GI45W2.20GHz512KB x3N/AC209/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core400eAD400EHDK32GI45W2.20GHz512KB x3N/AC209/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core405eAD405EHDK32GI45W2.30GHz512KB x3N/AC209/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core405eAD405EHDK32GM45W2.30GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core415eAD415EHDK32GM45W2.50GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core425ADX425WFK32GI95W2.70GHz512KB x3N/AC209/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core435ADX435WFK32GI95W2.90GHz512KB x3N/AC209/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core435ADX435WFK32GM95W2.90GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core440ADX440WFK32GI95W3.00GHz512KB x3N/AC209/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core440ADX440WFK32GM95W3.00GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core445ADX445WFK32GM95W3.10GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core450ADX450WFK32GM95W3.20GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core455ADX455WFK32GM95W3.30GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X3 Triple-Core460ADX460WFK32GM95W3.40GHz512KB x3N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core215ADX215OCK22GQ65W2.70GHz512KB x2N/AC209/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core215ADX215OCK22GM65W2.70GHz512KB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core220ADX220OCK22GM65W2.80GHz512KB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core225ADX225OCK22GM65W2.90GHz512KB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core235eAD235EHDK23GQ45W2.70GHz1MB x2N/AC209/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core240ADX240OCK23GQ65W2.80GHz1MB x2N/AC209/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core240eAD240EHDK23GQ45W2.80GHz1MB x2N/AC209/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core240eAD240EHDK23GM45W2.80GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core245ADX245OCK23GQ65W2.90GHz1MB x2N/AC209/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core245ADX245OCK23GM65W2.90GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core245eAD245EHDK23GM45W2.90GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core250ADX250OCK23GQ65W3.00GHz1MB x2N/AC209/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core250ADX250OCK23GM65W3.00GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core250eAD250EHDK23GM45W3.00GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core255ADX255OCK23GQ65W3.10GHz1MB x2N/AC209/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core255ADX255OCK23GM65W3.10GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core260ADX260OCK23GM65W3.20GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core260uAD260USCK23GM25W1.80GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core265ADX265OCK23GM65W3.30GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core270ADX270OCK23GM65W3.40GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core275ADX275OCK23GM65W3.50GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II X2 Dual-Core280ADX280OCK23GM65W3.60GHz1MB x2N/AC309/06/2010
Socket AM3AMD Athlon™ II170uAD170UEAK13GM20W2.00GHz1MBN/AC309/06/2010
Socket AM3AMD Sempron™140SDX140HBK13GQ45W2.70GHz1MN/AC209/06/2010
Socket AM3AMD Sempron™140SDX140HBK13GQ45W2.70GHz1MBN/AC209/06/2010
Socket AM3AMD Sempron™145SDX145HBK13GM45W2.80GHz1MBN/AC309/06/2010
Socket AM3AMD Sempron™145SDX145HBK13GM45W2.80GHz1MN/AC309/06/2010
Socket AM3AMD Sempron™150SDX150HBK13GM45W2.90GHz1MBN/AC309/06/2010
