ECS A885GM-A2 AM3 DDR3 SATA3 ATI HD4250

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

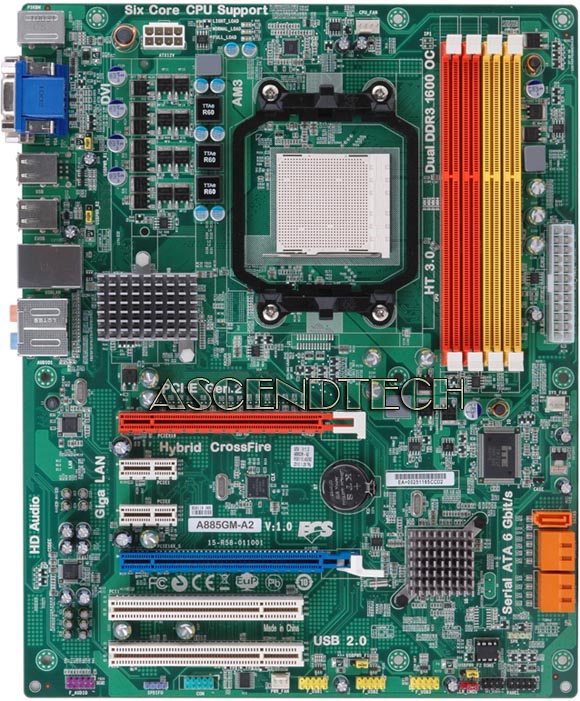

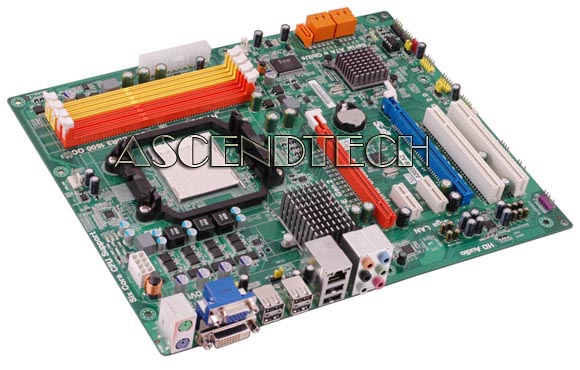

Ecs A885gm-A2 Am3 Ddr3 Sata3 Ati Hd4250. Model: A885gm-A2 V1.0 Amd 880G
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64ECSA885GMA2
Brand Ecs - Elitegroup
Model A885GM-A2 V1.0 AMD 880G
Category Amd Socket Am2+ Am3 Motherboards

Description

  ECS A885GM-A2 Socket AM3 for Phenom™ II Processor and Integrated SATA 6Gb/s Motherboard. ECS A885GM-A2 builds a perfect gaming center for users, providing the complete applications. ECS motherboards meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Specifications:

CPU
Socket AM3 socket for AMD Phenom™ II processors
High-performance HyperTransport 3.0 CPU Interface
Support transfer rate up to 5200 mega-transfers per second

CHIPSET
AMD® 880G & AMD® SB850
North Bridge: AMD® 880G
South Bridge: AMD® SB850

GRAPHICS
On Chip(AMD 880G-based with ATI™ Radeon HD4250 graphics )
Integrated DirectX10.1 graphics processor
Share Memory: Maximum up to 512MB

MEMORY
Dual-channel DDR3 memory architecture
4 x 240-pin DDR3 DIMM socket support up to 32GB*
Support DDR3 up to 1600(OC)/1333/1066 DDR3 SDRAM
(Due to the DRAM maximum size is 4GB at present, the memory maximum size we have tested is 16GB)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT
2 x PCI Express Gen 2.0 x16 slots
2 x PCI Express x1 slots
2 x PCI slots
The second PCIEX16 only support bandwidth x4

STORAGE
Support by AMD® SB850
5 x Serial ATA 6.0Gb/s devices
RAID0, RAID1, RAID5, RAID 10 configuration

AUDIO
Realtek ALC892 8-Ch High Definition audio CODEC
Compliant with HD audio specification

LAN
RealTek 8111DL Gigabit Fast Ethernet

REAR PANEL I/O
6 x USB 2.0 ports
1 x Gigabit Ethernet Port
1 x Audio port (Line-in, Line-out, Mic-in)
1 x DVI connector
1 x VGA port

INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 8-pin ATX 12V Power Connector
1 x 4-pin CPU_FAN connector
1 x 3-pin PWR_FAN connector
1 x 3-pin SYS_FAN connector
3 x USB 2.0 headers support additional 6 USB ports
5 x Serial ATA 6Gb/s connectors
1 x Speaker header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x Clear CMOS header
1 x Chassis intrusion header
1 x SPDIF out header
1 x COM header

SYSTEM BIOS
AMI BIOS with 8Mb SPI Flash ROM
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Supports ACPI revision 3.0 specification
Supports ACPI 3.0 revision
Support Page Up clear CMOS Hotkey
Support over-clocking
Support ECS M.I.B III Utility
CPU voltage adjustable
Memory voltage adjustable
NB Chipset Voltage Adjustable
HT Voltage Adjustable
External Clock Adjustable
Multiple Frequency Adjustable by CPU

FORM FACTOR
ATX Size, 305mm*244mm







CPU Support List:

SocketFamilyProcessorFrequencyCache
Socket AM3AMD Sempron150 (C3) (45W)2900MHz1MB
Socket AM3AMD Sempron140 (C2) (45W)2700 Mhz1MB
Socket AM3AMD Phenom™ II Triple-CoreBlack Edition 740 (C2) (95W)3000 MHz512KB X 3
Socket AM3AMD Phenom™ II Triple-CoreBlack Edition 720 (C2) (95W)2800 MHz512KB X 3
Socket AM3AMD Phenom™ II Triple-Core720 (C2)(95W)2800 MHz512KB X 3
Socket AM3AMD Phenom™ II Triple-Core710 (C2) (95W)2600 MHz512KB X 3
Socket AM3AMD Phenom™ II Triple-Core705e (C2) (65W)2500 MHz512KB X 3
Socket AM3AMD Phenom™ II Triple-Core700e (C2) (65W)2400 MHz512KB X 3
Socket AM3AMD Phenom™ II Six-CoreBlack Edition1090T (E0) (125W)3200 MHz512KB x6
Socket AM3AMD Phenom™ II Six-CoreBlack Edition 1100T (E0)(125W)3300MHz512KB x 6
Socket AM3AMD Phenom™ II Six-Core1075T (E0) (125W)3000MHz512KB X 6
Socket AM3AMD Phenom™ II Six-Core1065T (E0) (95W)2900MHz512KB x 6
Socket AM3AMD Phenom™ II Six-Core1055T (E0) (95W)2800 MHz512KB x6
Socket AM3AMD Phenom™ II Six-Core1055T (E0) (125W)2800 MHz512KB x6
Socket AM3AMD Phenom™ II Six-Core1045T (E0) (95W)2700MHz512KB X 6
Socket AM3AMD Phenom™ II Six-Core1035T (E0) (95W)2600 MHz512KB x6
Socket AM3AMD Phenom™ II Quad-CoreBlack Edition 975 (C3)(125W)3600MHz512KB x 4
Socket AM3AMD Phenom™ II Quad-CoreBlack Edition 965 (C3) (125W)3400 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-CoreBlack Edition 955 (C3) (125W)3200 MHz512KB x4
Socket AM3AMD Phenom™ II Quad-CoreBlack Edition 955 (C2) (125W)3200 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core965 (C3) (125W)3400 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core960T (E0) (95W)3000 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core960 (C3) (95W)3300MHz512KB x 4
Socket AM3AMD Phenom™ II Quad-Core955 (C3) (95W)3200 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core955 (C3) (125W)3200 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core955 (C3) (125W)3200 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core955 (C2) (125W)3200 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core945 (C3) (95W)3000 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core945 (C2) (95W)3000 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core945 (C2) (125W)3200 MHz512KB x4
Socket AM3AMD Phenom™ II Quad-Core925 (C3) (95W)2800 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core925 (C2) (95W)2800 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core910e (C3) (65W)2600 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core910 (C2) (95W)2600 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core905e (C3) (65W)2500MHz512KB x 4
Socket AM3AMD Phenom™ II Quad-Core905e (C2) (65W)2500Mhz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core900e (C2) (65W)2400 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core820 (C2) (95W)2800Mhz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core810 (C2) (95W)2600 MHz512KB X 4
Socket AM3AMD Phenom™ II Quad-Core805 (C2) (95W)2500 MHz512KB X 4
Socket AM3AMD Phenom™ II Dual-Core570 (C3) (80W)3500MHz512KB x 2
Socket AM3AMD Phenom™ II Dual-Core565 (C3) (80W)3400MHz512KB x 2
Socket AM3AMD Phenom™ II Dual-Core560 (C3) (80W)3300MHz512KB X 2
Socket AM3AMD Phenom™ II Dual-Core555 (C3) (80W)3200 MHz512KB X 2
Socket AM3AMD Phenom™ II Dual-Core550 (C3) (80W)3100MHz512KB X 2
Socket AM3AMD Phenom™ II Dual-Core550 (C2) (80W)3100MHz512KB X 2
Socket AM3AMD Phenom™ II Dual-Core545 (C3) (80W)3000 MHz512KB X 2
Socket AM3AMD Phenom™ II Dual-Core545 (C2) (80W)3000MHz512KB X 2
Socket AM3AMD Athlon™ II X4 Quad-Core Processor655 (C3) (95W)3300MHz512KB x 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor650 (C3) (95W)3200 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor645 (C3) (95W)3100 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor640 (C3) (95W)3000 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor635 (C3) (95W)2900 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor635 (C2) (95W)2900 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor630 (C3) (95W)2800 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor630 (C2) (95W)2800 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor620 (C2) (95W)2600 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor615 (C3) (45W)2500 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor610e (C3) (45W)2400 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor605e(C3)(45W)2300 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor605e (C2) (45W)2300 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core Processor600e (C2) (45W)2200 MHz512KB X 4
Socket AM3AMD Athlon™ II X3 Triple-Core Processor460 (C3) (95W)3400MHz512KB x 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor455 (C3) (95W)3300 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor450 (C3) (95W)3200 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor445 (C3) (95W)3100 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor440 (C3) (95W)3000 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor440 (C2) (95W)3000 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor435 (C3) (95W)2900 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor435 (C2) (95W)2900 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor425 (C2) (95W)2700Mhz512KB X 4
Socket AM3AMD Athlon™ II X3 Triple-Core Processor420 (C3) (45W)2600 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor415e(C3)(45W)2500 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor405e(C3)(45W)2300 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor405e (C2) (45W)2300 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core Processor400e (C2) (45W)2200 MHz512KB X 3
Socket AM3AMD Athlon™ II X2 Dual-Core Processor275 (C3) (65W)3500MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor270 (C3) (65W)3400 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor265 (C3) (65W)3300 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor260u (C3) (25W)1800 MHz512KB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor260u (C3) (25W)1800 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor260 (C3) (65W)3200 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor255 (C3) (65W)3100 MHz512KB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor255 (C3) (65W)3100 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor255 (C2) (65W)3100MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor250e (C3) (65W)3000 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor250 (C3) (65W)3000 MHz512KB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor250 (C3) (65W)3000 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor250 (C2) (65W)3000 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor245e (C3) (65W)2900 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor245e (C3) (45W)2900 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor245 (C3) (65W)2900 MHz512KB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor245 (C3) (65W)2900 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor245 (C2) (65W)2900 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor240e (C2) (45W)2800 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor240 (C2) (65W)2800 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor235e (C2) (45W)2700Mhz512KB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor225 (C3) (65W)2900 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor220 (C3) (65W)2800 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor215 (C3) (65W)2700 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor215 (C2) (65W)2700 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core Processor215 (C2) (65W)2700 MHz1MB X 2
