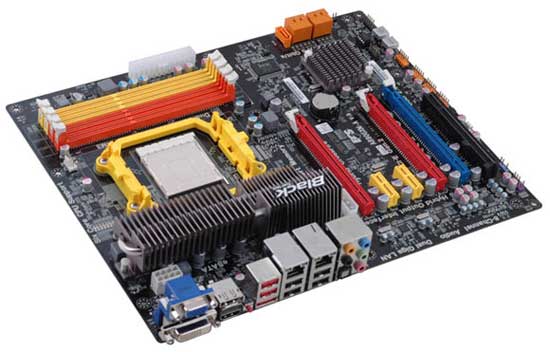

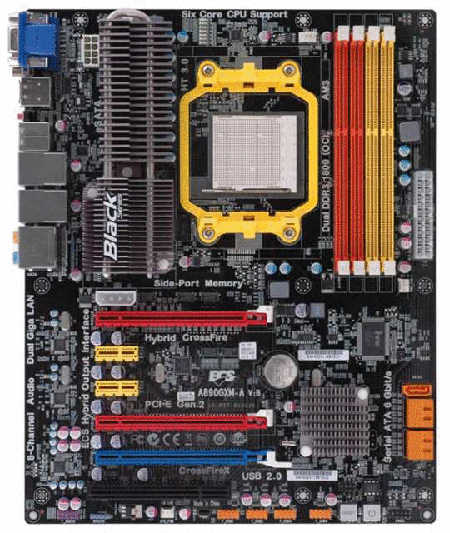

ECS A890GXM-A AM3 ATX Motherboard

  ECS A890GXM-A (V1.0) Socket AM3 ATX Motherboard. ECS motherboards meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Specifications:

CPU:
Socket AM3 Support AMD Phenom II Processors
Support 125W Phenom II X6 Processors
Supports CPU TDP up to 140W only
FSB up to 5200 MT/s

Chipset:
AMD 890GX & SB850

Memory:
4 x 240pin DDR3-1800(OC)/1600(OC)/1333/1066 DIMMs
Dual Channel
Max Capacity 32GB

Slots:
3 x PCI-Express 2.0 x16 Slots (Support ATI CrossFireX and Hybird CrossFireX Technology)
2 x PCI-Express x1 Slots
1 x PCI Slots

SATA:
5 x SATA3 Ports
Support RAID 0, 1, 5, 10
1 x eSATA

Audio:
Realtek ALC892 8-Channel High Definition Audio CODEC

Video:
ATI Radeon HD4290 Graphic Controller

LAN:
Dual Realtek 8111DL Gigabit Ethernet Controller

Ports:
14 x USB 2.0 Ports (6 rear, 8 by headers)
1 x eSATA Port
1 x VGA Port
1 x DVI Port
1 x HDMI Port
1 x Display Port
1 x optical S/PDIF Out connector
2 x RJ45 LAN Ports
Audio I/O Jacks

Power Connector:
1 x 24pin main power
1 x 8pin CPU power

Form Factor:
ATX 30.5 x 24.4 cm
