ECS A890GXM-A Hybird CrossFireX SATA3 MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

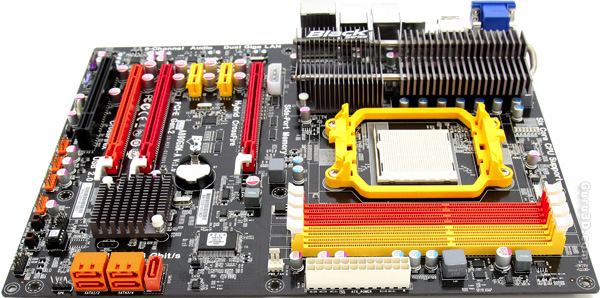

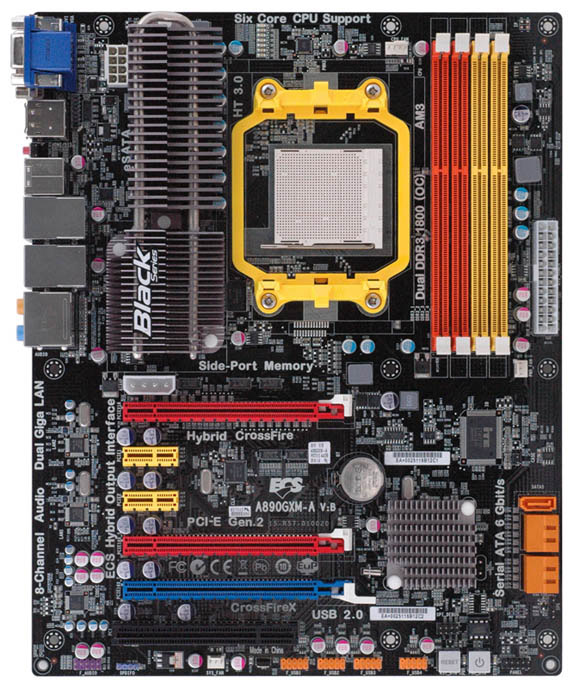

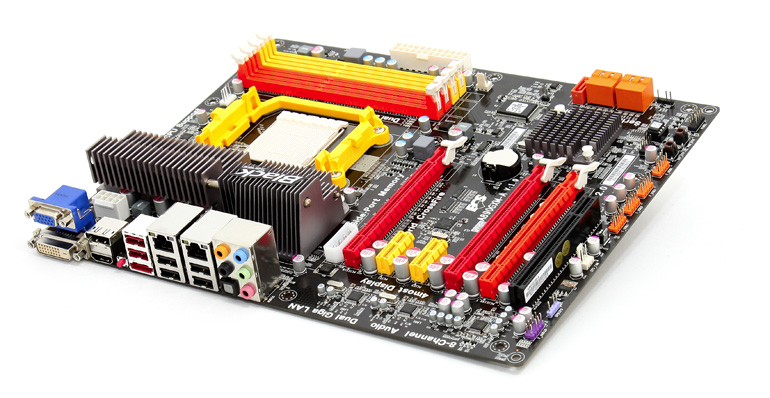

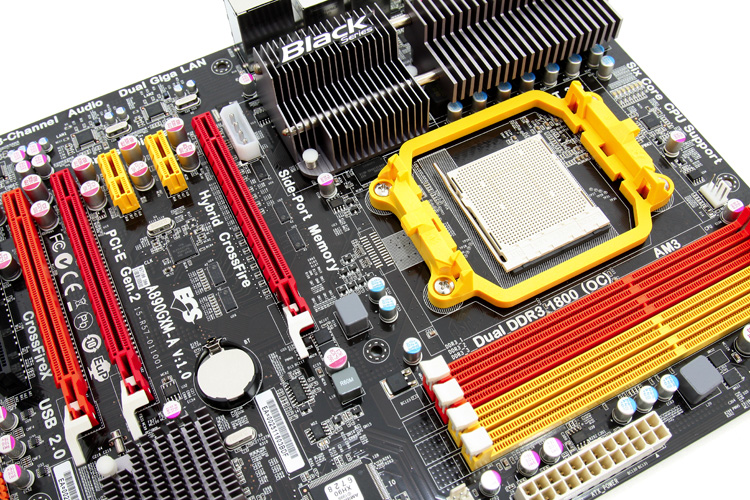

Ecs A890gxm-A Hybird Crossfirex Sata3 Mb. Model: A890gxm-A V1.0
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSA890GXMAV1
Brand Ecs - Elitegroup
Model A890GXM-A V1.0
Category Amd Socket Am2+ Am3 Motherboards

Description

The latest ECS Black Series A890GXM-A is based on the AMD 890GX chipset with 140W Phenom II processor (Socket AM3) support.The A890GXM-A has integrated with ATI™ Radeon HD 4290 graphics IGP, which includes AMD CrossFire ,Hybrid Crossfire technology and DirectX 10.1 capabilities.A890GXM-A features convenient 4most display output interfaces, and RealTek ALC892 7.1CH High Definition audio with Content Protection for Blu-Ray.A890GXM-A is covered with QoolTech III Heatpipe in MOS,NB and SB to focus on Silent Cooling.In addition the SB850 features 5x SATA 6G ports and 1x eSATA, with RAID 0,1, 5&10 configurations, and proprietary ECS BIOS tweaking through the M.I.B III Overclocking utility.

Specifications:

CPUº Support AM3 socket for AMD Phenom™ II processors
º Support 125W Phenom™ II X6 processors
º High-performance HyperTransport 3.0 CPU Interface
º Support transfer rate up to 5200 mega-transfers per second
º Note: This board supports CPU up to 140W TDP only; you can refer toAMD website to check your CPU.
CHIPSETº AMD® 890GX & AMD® SB850
º North Bridge: AMD® 890GX
º South Bridge: AMD® SB850
GRAPHICSº On Chip (AMD 890GX-based with ATI™ Radeon HD4290 graphics )
º Integrated DirectX10.1 graphics processor
º Share Memory: Maximum up to 512MB
º AMD SidePort Memory : DDR3-1333 (64Mx16=128MB)
MEMORYº Dual-channel DDR3 memory architecture
º 4 x 240-pin DDR3 DIMM socket support up to 32 GB
º Support DDR3 up to 1800(OC)/1600(OC)/1333/1066 DDR3 SDRAM

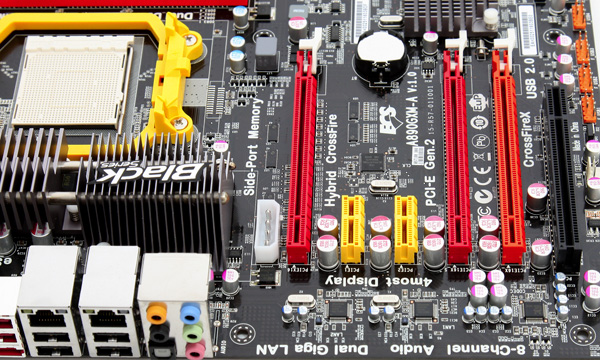

EXPANSION SLOTº 3 x PCI Express Gen 2.0 x16 slots
º 2 x PCI Express x1 slots
º 1 x PCI slot
º *The third PCIEX16 only support bandwidth x4
STORAGEº Support by AMD® SB850
    • 5 x Serial ATA 6.0Gb/s devices
    • RAID0, RAID1, RAID5, RAID 10 configuration
    • 1 x eSATA 3Gb/s port
AUDIOº Realtek ALC892 8-Ch High Definition audio CODEC
º Compliant with HD audio specification
LANº Dual Realtek 8111DL 10/100/1000 Fast Ethernet Controller

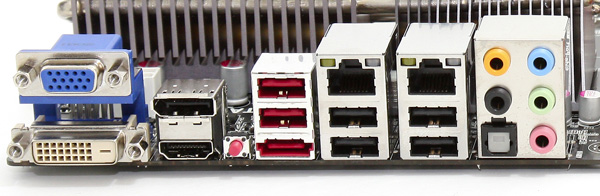

REAR PANEL I/Oº 1 x D-sub(VGA)
º 1 x HDMI Port
º 1 x DVI Port
º 1 x Display port
º 2 x RJ45 LAN connectors
º 1 x Audio port (Line-in, Line-out, Mic-in)
º 1 x optical S/PDIF Out connector
º 1 x Clear_CMOS button
º 1 x eSATA 3Gb/s port
º 6 x USB 2.0 ports
INTERNAL I/O CONNECTORS & HEADERSº 1 x 24-pin ATX Power Supply connector
º 1 x 8-pin ATX 12V Power Connector
º 1 x 4pin CPU_FAN connectors
º 1 x 3-pin PWR_FAN connector
º 1 x 3-pin SYS_FAN connector
º 1 x Power on button
º 1 x Reset button
º 1 x Speaker header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x 4-pin power connector for VGA card
º 1 x Clear CMOS header
º 5 x Serial ATA 6Gb/s connectors
º 4 x USB 2.0 headers support additional 8 USB ports
º 1X Stand by LED (Red Light)
º 1X Power on LED (Green light)
º 1 x Chassis intrusion header
SYSTEM BIOSº AMI BIOS with 8Mb SPI Flash ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Audio, LAN, can be disabled in BIOS
º F11 hot key for boot up devices option
º Support over-clocking
º Support eJIFFY
º Support Page Up clear CMOS Hotkey
º Support ECS M.I.B III Utility
º CPU voltage adjustable
º Memory voltage adjustable
    • NB Chipset Voltage Adjustable
    • HT Voltage Adjustable
    • External Clock Adjustable
    • Multiple Frequency Adjustable
FORM FACTORº ATX Size 305mm*244mm





















 CPU Support List:

Socket Family Processor Frequency Cache
Socket AM3 AMD Phenom™ II Six-Core Black Edition1090T (E0) (125W) 3200 MHz 512KB x6
Socket AM3 AMD Phenom™ II Quad-Core Black Edition 975 (C3)(125W) 3600MHz 512KB x 4
Socket AM3 AMD Phenom™ II Quad-Core Black Edition 955 (C3) (125W) 3200 MHz 512KB x4
Socket AM3 AMD Phenom™ II Quad-Core Black Edition 955 (C2) (125W) 3200 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Six-Core Black Edition 1100T (E0)(125W) 3300MHz 512KB x 6
Socket AM3 AMD Phenom™ II Quad-Core 965 (C3) (125W) 3400 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 960T (E0) (95W) 3000 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 960 (C3) (95W) 3300MHz 512KB x 4
Socket AM3 AMD Phenom™ II Quad-Core 955 (C3) (125W) 3200 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 955 (C2) (125W) 3200 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 945 (C3) (95W) 3000 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 945 (C2) (95W) 3000 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 945 (C2) (125W) 3200 MHz 512KB x4
Socket AM3 AMD Phenom™ II Quad-Core 925 (C3) (95W) 2800 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 925 (C2) (95W) 2800 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 910e (C3) (65W) 2600 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 910 (C2) (95W) 2600 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 905e (C3) (65W) 2500MHz 512KB x 4
Socket AM3 AMD Phenom™ II Quad-Core 905e (C2) (65W) 2500Mhz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 900e (C2) (65W) 2400 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 840T (E0) (95W) 2900MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 820 (C2) (95W) 2800Mhz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 810 (C2) (95W) 2600 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Quad-Core 805 (C2) (95W) 2500 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 655 (C3) (95W) 3300MHz 512KB x 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 650 (C3) (95W) 3200 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 645 (C3) (95W) 3100 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 640 (C3) (95W) 3000 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 635 (C3) (95W) 2900 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 635 (C2) (95W) 2900 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 630 (C3) (95W) 2800 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 630 (C2) (95W) 2800 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 620 (C2) (95W) 2600 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 615 (C3) (45W) 2500 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 610e (C3) (45W) 2400 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 605e(C3)(45W) 2300 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 605e (C2) (45W) 2300 MHz 512KB X 4
Socket AM3 AMD Athlon™ II X4 Quad-Core Processor 600e (C2) (45W) 2200 MHz 512KB X 4
Socket AM3 AMD Phenom™ II Six-Core 1075T (E0) (125W) 3000MHz 512KB X 6
Socket AM3 AMD Phenom™ II Six-Core 1065T (E0) (95W) 2900MHz 512KB x 6
Socket AM3 AMD Phenom™ II Six-Core 1055T (E0) (95W) 2800 MHz 512KB x6
Socket AM3 AMD Phenom™ II Six-Core 1055T (E0) (125W) 2800 MHz 512KB x6
Socket AM3 AMD Phenom™ II Six-Core 1045T (E0) (95W) 2700MHz 512KB X 6
Socket AM3 AMD Phenom™ II Six-Core 1035T (E0) (95W) 2600 MHz 512KB x6
Socket AM3 AMD Phenom™ II Triple-Core Black Edition 740 (C2) (95W) 3000 MHz 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core Black Edition 720 (C2) (95W) 2800 MHz 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 720 (C2)(95W) 2800 MHz 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 715 (C2) (95W) 2700 MHz 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 710 (C2) (95W) 2600 MHz 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 705e (C2) (65W) 2500 MHz 512KB X 3
Socket AM3 AMD Phenom™ II Triple-Core 700e (C2) (65W) 2400 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 460 (C3) (95W) 3400MHz 512KB x 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 455 (C3) (95W) 3300 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 450 (C3) (95W) 3200 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 445 (C3) (95W) 3100 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 440 (C3) (95W) 3000 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 440 (C2) (95W) 3000 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 435 (C3) (95W) 2900 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 435 (C2) (95W) 2900 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 425 (C2) (95W) 2700Mhz 512KB X 4
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 420 (C3) (45W) 2600 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 415e(C3)(45W) 2500 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 405e(C3)(45W) 2300 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 405e (C2) (45W) 2300 MHz 512KB X 3
Socket AM3 AMD Athlon™ II X3 Triple-Core Processor 400e (C2) (45W) 2200 MHz 512KB X 3
Socket AM3 AMD Phenom™ II Dual-Core 570 (C3) (80W) 3500MHz 512KB x 2
Socket AM3 AMD Phenom™ II Dual-Core 565 (C3) (80W) 3400MHz 512KB x 2
Socket AM3 AMD Phenom™ II Dual-Core 560 (C3) (80W) 3300MHz 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 555 (C3) (80W) 3200 MHz 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 550 (C3) (80W) 3100MHz 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 550 (C2) (80W) 3100MHz 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 545 (C3) (80W) 3000 MHz 512KB X 2
Socket AM3 AMD Phenom™ II Dual-Core 545 (C2) (80W) 3000MHz 512KB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 275 (C3) (65W) 3500MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 270 (C3) (65W) 3400 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 260u (C3) (25W) 1800 MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 260 (C3) (65W) 3200 MHz 1MB
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 260 (C3) (65W) 3200 MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 255 (C3) (65W) 3100 MHz 512KB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 255 (C3) (65W) 3100 MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 255 (C2) (65W) 3100MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 250e (C3) (65W) 3000 MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 250 (C3) (65W) 3000 MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 250 (C2) (65W) 3000 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 245e (C3) (45W) 2900 MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 245 (C3) (65W) 2900 MHz 1MB x 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 245 (C2) (65W) 2900 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 240e (C3) (45W) 2800 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 240e (C2) (45W) 2800 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 240 (C2) (65W) 2800 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 235e (C2) (45W) 2700Mhz 512KB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 225 (C3) (65W) 2900 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 220 (C3) (65W) 2800 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 215 (C3) (65W) 2700 MHz 1MB X 2
Socket AM3 AMD Athlon™ II X2 Dual-Core Processor 215 (C2) (65W) 2700 MHz 1MB X 2
Socket AM3 AMD Sempron 150 (C3) (45W) 2900MHz 1MB
Socket AM3 AMD Sempron 145 (C3) (45W) 2800 MHz 1MB
Socket AM3 AMD Sempron 140 (C2) (45W) 2700 Mhz 1MB
