ECS AMD A750GM-M (V1.0) DDR3 AM3

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

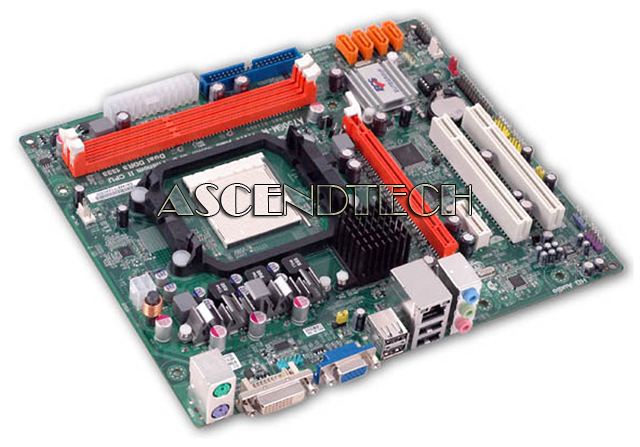

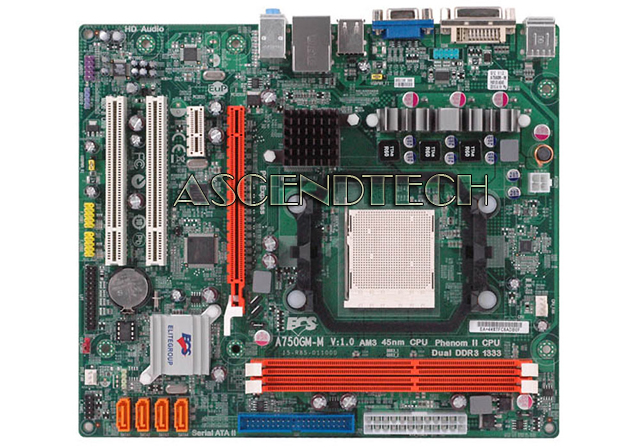

Ecs Amd A750gm-M (V1.0) Ddr3 Am3 . Model: A750gm-M V1.0 Hdmi
  Enlarge
Ecs Amd A750gm-M (V1.0) Ddr3 Am3 . Model: A750gm-M V1.0 Hdmi
Ecs Amd A750gm-M (V1.0) Ddr3 Am3 . Model: A750gm-M V1.0 Hdmi
Ecs Amd A750gm-M (V1.0) Ddr3 Am3 . Model: A750gm-M V1.0 Hdmi
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSEA750GMMV1
Brand Ecs - Elitegroup
Model A750GM-M V1.0 HDMI
Category Amd Socket Am2+ Am3 Motherboards

Description

The A750GM-M motherboard supports the new AMD Phenom™ II, Athlon II™ II and Sempron processors(AM3). It is based on AMD740G Chipset with SB710, supporting dual-channel DDR3 memory up to DDR3 1066/1333. A750GM-M motherboard is an ideal choice that brings the outstanding performance with very competitive price to you.









Specifications:

CPU º Support AM3 socket for AMD Phenom™ II /Athlon™/ Sempron processors
º High-performance HyperTransport 1.0 CPU Interface
º Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.

CHIPSETº AMD® 740G & AMD® SB710
º North Bridge: AMD® 740G
º South Bridge: AMD® SB710

GRAPHICSº On Chip (AMD 740G-based with ATI™ Radeon HD2100 graphics )
º Integrated DirectX 9 graphics processor
º Share Memory: Maximum up to 512MB

MEMORYº Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 8 GB
º Support DDR3 1333/1066 SDRAM
º *(Due to AMD CPU spec limitation, please refer to Memory QVL for more information)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOTº 1 x PCI Express x16 slot
º 1 x PCI Express x1 slot
º 2 x PCI slots

STORAGEº Support by AMD® SB710
    • 4 x Serial ATA 3.0Gb/s devices
    • RAID0, RAID1, RAID10 configuration

AUDIOº VIA® VT1705 6-channel audio CODEC
º Compliant with HD audio specification

LANº Realtek RTL8103EL 10/100 LAN (RTL8111DL Gigabit LAN Optional)

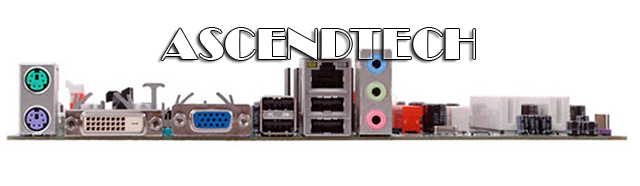

REAR PANEL I/Oº 1 x PS/2 keyboard & PS/2 mouse connectors
º 1 x D-sub(VGA)
º 1 x DVI connector(optional)
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
º 4 x USB 2.0 Ports

INTERNAL I/O CONNECTORS & HEADERSº 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin 12V Connector
º 1 x 4-pin CPU_FAN connector
º 1 x 3-pin SYS_FAN connector
º 1 x IDE connector
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x Clear CMOS header
º 1 x Serial port header
º 1 x Parallel Header
º 4 x SATA 3Gb/s connectors
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Chassis intrusion header

SYSTEM BIOSº AMI BIOS with 8Mb SPI Flash ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Audio, LAN, can be disabled in BIOS
º Supports eJIFFY

FORM FACTORº Micro-ATX Size, 244mm*210mm









CPU Support List:

Socket FamilyProcessorP/N NumberWattageFrequencyL2 CacheL3 CacheSteppingSince BIOS
Socket AM3AMD Phenom™ II X6 Six-Core1035THDT35TWFK6DGR95W2.60GHz512KB x66MBE007/28/2010
Socket AM3AMD Phenom™ II X6 Six-Core1035THDT35TWFK6DGR95W2.60GHz512KB x6N/AE007/28/2010
Socket AM3AMD Phenom™ II X6 Six-Core1045THDT45TWFK6DGR95W2.70GHz512KB x66MBE007/28/2010
Socket AM3AMD Phenom™ II X6 Six-Core1055THDT55TWFK6DGR95W2.80GHz512KB x66MBE007/28/2010
Socket AM3AMD Phenom™ II X6 Six-Core1055THDT55TFBK6DGR95W2.80GHz512KB x6N/AE007/28/2010
Socket AM3AMD Phenom™ II X6 Six-Core1065THDT65TWFK6DGR95W2.90GHz512KB x6N/AE007/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core700eHD700EOCK3DGI65W2.40GHz512KB x4N/AC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core805HDX805WFK4FGI95W2.50GHz512KB x44MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core810HDX810WFK4FGI95W2.60GHz512KB x44MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core820HDX820WFK4FGI95W2.80GHz512KB x44MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core840HDX840WFK42GM95W3.20GHz512KB x4N/AC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core840HD840TWFK4DGR95W3.20GHz512KB x4N/AE007/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core850HDX850WFK42GM95W3.30GHz512KB x4N/AC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core900eHD900EOCK4DGI65W2.40GHz512KB x46MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core900eHD900EOCK4DGI65W2.40GHz512KB x4N/AC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core905eHD905EOCK4DGI65W2.50GHz512KB x46MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core905eHD905EOCK4DGM65W2.50GHz512KB x46MBC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core910HDX910WFK4DGI95W2.60GHz512KB x46MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core910eHD910EOCK4DGM65W2.60GHz512KB x46MBC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core925HDX925WFK4DGI95W2.80GHz512KB x46MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core925HDX925WFK4DGM95W2.80GHz512KB x46MBC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core945HDX945WFK4DGI95W3.00GHz512KB x46MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core945HDX945WFK4DGM95W3.00GHz512KB x46MBC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core945HDX945FBK4DGI125W *3.00GHz512KB x46MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955HDX955WFK4DGM95W3.20GHz512KB x46MBC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955HDX955FBK4DGI125W *3.20GHz512KB x46MBC207/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core955HDX955FBK4DGM125W *3.20GHz512KB x4N/AC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core960HDX960WFK4DGM95W3.30GHz512KB x46MBC307/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core960HD96ZTWFK4DGR95W3.30GHz512KB x4N/AE007/28/2010
Socket AM3AMD Phenom™ II X4 Quad-Core965HDZ965FBK4DGM125W *3.40GHz512KB x4N/AC307/28/2010
Socket AM3AMD Phenom™ II Quad-Core925HDX925WFK4DGM95W2.80GHz512KB x46MBC307/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core700eHD700EOCK3DGI65W2.40GHz512KB x36MBC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core705eHD705EOCK3DGI65W2.50GHz512KB x3N/AC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core710HDX710WFK3DGI95W2.60GHz512KB x36MBC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core710HDX710WFK3DGI95W2.60GHz512KB x3N/AC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core715 (BE)HDZ715WCJ3DGI95W2.70GHz512KB x36MBC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core720HDX720WFK3DGI95W2.80GHz512KB x3N/AC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core720 (BE)HDZ720WFK3DGI95W2.80GHz512KB x36MBC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core720 (BE)HDZ720WFK3DGI95W2.80GHz512KB x3N/AC207/28/2010
Socket AM3AMD Phenom™ II X3 Triple-Core740 (BE)HDZ740WFK3DGI95W3.00GHz512KB x3N/AC207/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core545HDX545WFK2DGI95W3.00GHz512KB x26MBC207/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core545HDX545WFK2DGM95W3.00GHz512KB x26MBC307/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core545HDX545WFK2DGI95W3.00GHz512KB x2N/AC207/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core550HDZ550WFK2DGI95W3.10GHz512KB x26MBC207/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core550HDX550WFK2DGM95W3.10GHz512KB x26MBC307/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core555HDZ555WFK2DGM95W3.20GHz512KB x26MBC307/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core560HDZ560WFK2DGM95W3.30GHz512KB x26MBC307/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core560HDX550WFK2DGM95W3.30GHz512KB x2N/AC307/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core565HDZ565WFK2DGM95W3.40GHz512KB x26MBC307/28/2010
Socket AM3AMD Phenom™ II X2 Dual-Core570HDZ570WFK2DGM95W3.50GHz512KB x26MBC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core600eAD600EHDK42GI45W2.20GHz512KB x4N/AC207/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core605eAD605EHDK42GI45W2.30GHz512KB x4N/AC207/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core605eAD605EHDK42GM45W2.30GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core610eAD610EHDK42GM45W2.40GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core615eAD615EHDK42GM45W2.50GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core620ADX620WFK42GI95W2.60GHz512KB x4N/AC207/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core630ADX630WFK42GI95W2.80GHz512KB x4N/AC207/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core630ADX630WFK42GM95W2.80GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core635ADX635WFK42GI95W2.90GHz512KB x4N/AC207/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core635ADX635WFK42GM95W2.90GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core640ADX640WFK42GM95W3.00GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core645ADX645WFK42GM95W3.10GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core650ADX650WFK42GM95W3.20GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X4 Quad-Core655ADX655WFK42GM95W3.30GHz512KB x4N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core400eAD400EHDK42GI45W2.20GHz512KB x3N/AC207/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core400eAD400EHDK32GI45W2.20GHz512KB x3N/AC207/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core405eAD405EHDK32GI45W2.30GHz512KB x3N/AC207/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core405eAD405EHDK32GM45W2.30GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core415eAD415EHDK32GM45W2.50GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core425ADX425WFK32GI95W2.70GHz512KB x3N/AC207/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core435ADX435WFK32GI95W2.90GHz512KB x3N/AC207/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core435ADX435WFK32GM95W2.90GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core440ADX440WFK32GI95W3.00GHz512KB x3N/AC207/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core440ADX440WFK32GM95W3.00GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core445ADX445WFK32GM95W3.10GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core450ADX450WFK32GM95W3.20GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core455ADX455WFK32GM95W3.30GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X3 Triple-Core460ADX460WFK32GM95W3.40GHz512KB x3N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core215ADX215OCK22GQ65W2.70GHz512KB x2N/AC207/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core215ADX215OCK22GM65W2.70GHz512KB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core220ADX220OCK22GM65W2.80GHz512KB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core225ADX225OCK22GM65W2.90GHz512KB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core235eAD235EHDK23GQ45W2.70GHz1MB x2N/AC207/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core240ADX240OCK23GQ65W2.80GHz1MB x2N/AC207/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core240eAD240EHDK23GQ45W2.80GHz1MB x2N/AC207/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core240eAD240EHDK23GM45W2.80GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core245ADX245OCK23GQ65W2.90GHz1MB x2N/AC207/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core245ADX245OCK23GM65W2.90GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core245eAD245EHDK23GM45W2.90GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core250ADX250OCK23GQ65W3.00GHz1MB x2N/AC207/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core250ADX250OCK23GM65W3.00GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core250eAD250EHDK23GM45W3.00GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core255ADX255OCK23GQ65W3.10GHz1MB x2N/AC207/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core255ADX255OCK23GM65W3.10GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core260ADX260OCK23GM65W3.20GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core260uAD260USCK23GM25W1.80GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core265ADX265OCK23GM65W3.30GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core270ADX270OCK23GM65W3.40GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core275ADX275OCK23GM65W3.50GHz1MB x2N/AC307/28/2010
Socket AM3AMD Athlon™ II X2 Dual-Core280ADX280OCK23GM65W3.60GHz1MB x2N/AC307/28/2010
Socket AM3AMD Sempron™140SDX140HBK13GQ45W2.70GHz1MN/AC207/28/2010
Socket AM3AMD Sempron™140SDX140HBK13GQ45W2.70GHz1MBN/AC207/28/2010
Socket AM3AMD Sempron™145SDX145HBK13GM45W2.80GHz1MBN/AC307/28/2010
Socket AM3AMD Sempron™145SDX145HBK13GM45W2.80GHz1MN/AC307/28/2010
Socket AM3AMD Sempron™150SDX150HBK13GM45W2.90GHz1MBN/AC307/28/2010
