ECS APLD-I-J3355 Mini ITX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs Apld-I-J3355 Mini Itx Motherboard
  Enlarge
Ecs Apld-I-J3355 Mini Itx Motherboard
Ecs Apld-I-J3355 Mini Itx Motherboard
Ecs Apld-I-J3355 Mini Itx Motherboard
Ecs Apld-I-J3355 Mini Itx Motherboard

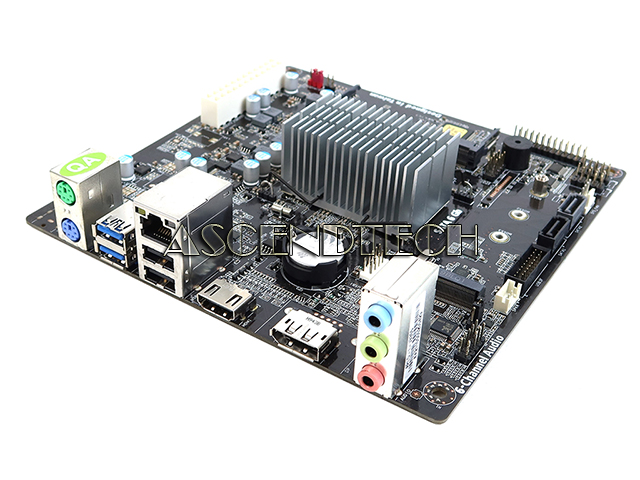

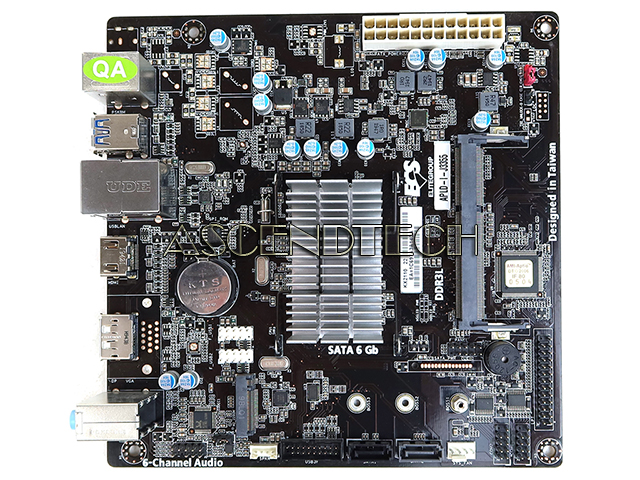

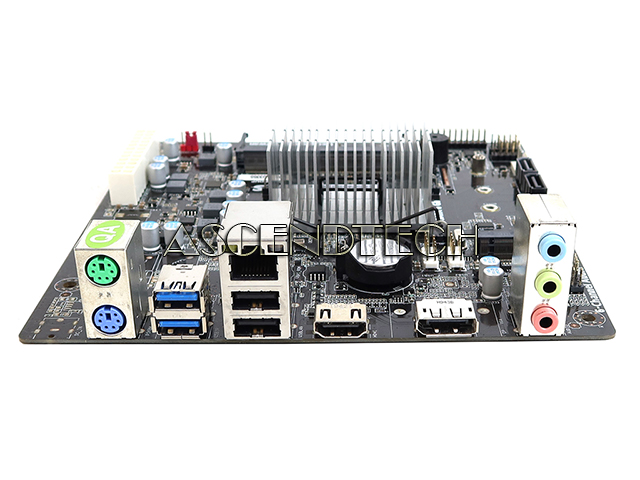

*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKAPLDIJ335N
Brand Ecs - Elitegroup
Model APLD-I-J3355
Compatible Part Numbers APLD-I
Category All-In-One Desktop Motherboards
Condition Brand New

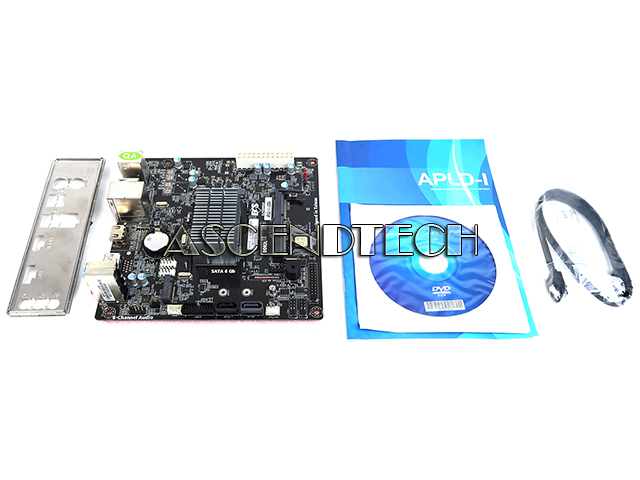

Condition Description Please note, this item comes with I/O Shield Backplate, SATA Cable, System Utility DVD, and User Guide.

Description

ECS Elitegroup APLD-I-J3355 Intel Celeron Apollo Lake J3355 2GHz Processor DDR3 SO-DIMM Display Port HDMI USB SATA 6Gb/s Mini ITX Desktop Motherboard.

Processor/CPU: Intel Celeron Apollo Lake J3355
Processor/CPU Speed: 2.00GHz (2.50GHz Max Turbo)
Number of Cores: 2
L2/L3 Cache: 2MB
Max Supported Memory: 8GB
Number of Memory Slots: 1
Memory Type: DDR3 SDRAM
Storage Interface: 2x SATA III 6Gb/s
Connectors: 1x 24-pin ATX Power Supply connector; 1x SATA Power Connector; 1x 4-pin SYS FAN connector; 1x Front Panel switch/LED header; 1x Front panel audio header; 1x Speaker header; 1x USB 3.2 Gen 1x1 header (Support additional 2 USB ports); 2x USB 2.0 header (Support additional 4 USB ports); 1x CLR CMOS header; 2x Serial port header (COM); 1x Parallel port header (LPT); 1x ME UNLOCK header; 1x Chassis intrusion header
Input/Output Ports: 1x PS/2 Keyboard Connectors; 1x PS/2 Mouse Connectors; 3x Audio port (Line Out, Line In, Mic In); 1x LAN RJ-45 port; 1x HDMI; 1x Display Port; 2x USB 3.2 Gen 1x1; 2x USB 2.0
Expansion Slots: 1x M.2 slot for SSD (2242/2260/2280)
Width: 170 mm
Length: 170 mm
Form Factor: Mini ITX
Supported Operating System: Windows 10 64-bit

Additional Specifications:

System Bios:

- AMI BIOS with 64 MB SPI Flash ROM
- F7 hot key for boot up devices option
- Dual Display
- Support GUI UEFI BIOS
- Multi-Language BIOS

Certifications:

- CE/FCC Certification
- ErP/EuP Certification
- WHQL Certification

Additional Features:

- Applied 100% Solid capacitor design to maximize component reliability
- ECS Durathon Technology ensure the stability, reliability and performance of system.
- ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
- ECS MIB III - A friendly interface for overclocking
- Supports DirectX 12 to enhance graphical performance
- Supports Intel HD Graphics
- Supports HDMI 1.4a Technology (resolution up to 1920X1200) and HDCP function
