ECS B150M4-C43 V1.0 DDR4 ATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs B150m4-C43 V1.0 Ddr4 Atx Motherboard
  Enlarge
Ecs B150m4-C43 V1.0 Ddr4 Atx Motherboard
Ecs B150m4-C43 V1.0 Ddr4 Atx Motherboard
Ecs B150m4-C43 V1.0 Ddr4 Atx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDB150M4C43V10
Brand Ecs - Elitegroup
Model B150M4-C43 V1.0
Category Intel Lga1151 Motherboard
Condition New Open Box

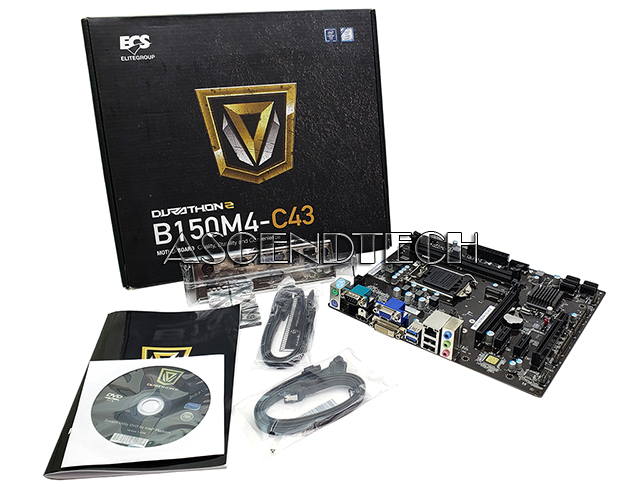

Condition Description Please Note Motherboard comes with I/O Shield, 2 SATA Cables, Manual, and System Utility DVD

Description

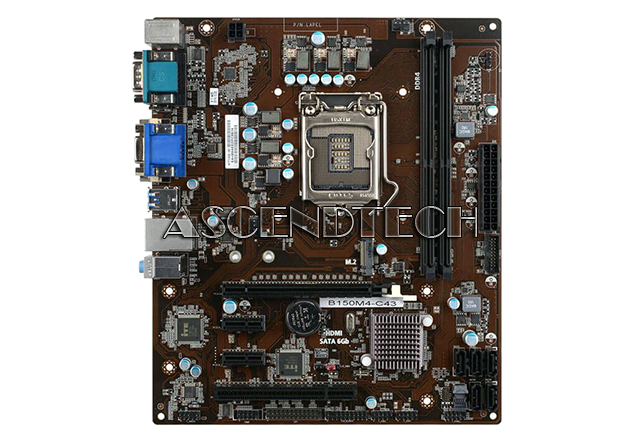

ECS B150M4-C43 V1.0 Intel B150 Express Chipset LGA 1151 Socket Dual DDR4 SATA 6GB/S ATX Motherboard.

ECS Model Number: B150M4-C43 V1.0
Includes: I/O Shield, 2 SATA Cables, Manual, and System Utility DVD







Features:

Windows 10 Workable support
5 Phase Power Design
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhanceits durability and lifespan
1 COM designed for various IPC applications
Intel 14nm 6th generation Multi-Core CPU support
Intel 14nm 7th generation Multi-Core CPU support
Supports DirectX 12 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Intelligent EZ Utility : eBLU, eDLU, eSF







Specifications:

CPU

Supports 6th gen Intel Core family/ Pentium / Celeron series processors for LGA 1151 socket
Supports 7th gen Intel Core family/ Pentium / Celeron series processors for LGA 1151 socket
5 Phase Thermal Design Power
100% Solid capacitor design

Chipset

Intel B150 Express Chipset

Graphics

Supports DirectX 12
Supports HDMI 1.4a & Premium Audio
Supports Full HD 1080P Blu-ray / HD-DVD Playback

Memory

Dual-channelDDR4 Memory architecture
Supports DDR4 2400 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
Support up to 32 GB*

Expansion Slot

1 X PCI Express X16 Gen 3.0 slot(s)
2 X PCI Express X 1 Gen 3.0slot(s)
1 X M.2 slot for SSD
For 2260/2280 SSD
1 X PCI slot(s)

Storage

Support by B150 Express Chipset
5 X Serial ATAIII 6Gb/s

Audio

6-Channel HD audio CODEC
VIA ALC662 6-channel High Definition audio CODEC
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D, A3D, I3DL2

LAN

Realtek 8111GN Gigabit Fast Ethernet Controller
Wake-On-LAN

USB

Support by B150 Express Chipset
4 X USB3.1 Gen1 port(s) up to 5Gb/s
Back Panel 2 port(s)
Onboard 2 port(s)
6 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
Onboard 4 port(s)

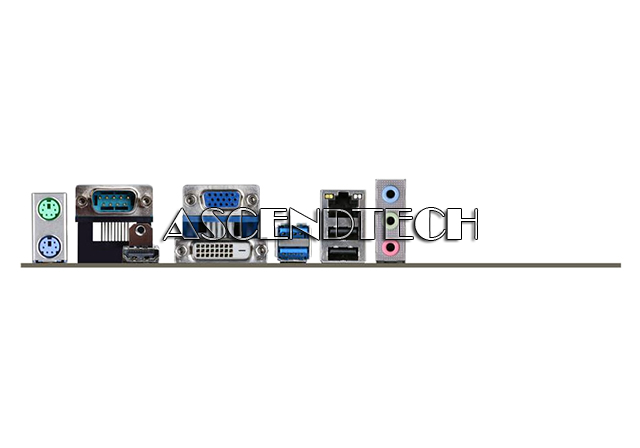

Rear Panel I/O

1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Serial port (COM)
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X DVI-I port(s)
1 X D-Sub (VGA) port(s)
2 X USB3.1 Gen1 port(s)
2 X USB2.0 port(s)

Connectors and Headers

1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X Front Panel MIC/Speaker out header
1 X Front Panel switch/LED header
1 X USB 3.1 Gen1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 4 USB ports
5 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
1 X Parallel port header (LPT)
1 X TPM header
1 X Chassis intrusion header

System BIOS

AMI BIOS with 128 MB SPI Flash ROM
Supports M.I.B III Utility
F7 hot key for boot up devices option
Dual Display
Support GUI UEFI BIOS
Multi-Language BIOS

Form Factor

mATX Form Factor
244*210








CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.


SocketFamilyProcessorWattageFrequencyCacheSteppingSince BIOS
LGA1151Intel Core i7670065W3.40GHz8MBR01/9/2017
LGA1151Intel Core i76700K91W4.00GHz8MBR01/9/2017
LGA1151Intel Core i76700T35W2.80GHz8MBR01/9/2017
LGA1151Intel Core i7770065W3.60GHz8MB01/9/2017
LGA1151Intel Core i77700K91W4.20GHz8MB01/9/2017
LGA1151Intel Core i77700T35W2.90GHz8MB01/9/2017
LGA1151Intel Core i5640065W2.70GHz6MBR01/9/2017
LGA1151Intel Core i56400T35W2.20GHz6MBR01/9/2017
LGA1151Intel Core i5650065W3.20GHz6MBR01/9/2017
LGA1151Intel Core i56500T35W2.50GHz6MBR01/9/2017
LGA1151Intel Core i5660065W3.30GHz6MBR01/9/2017
LGA1151Intel Core i56600K91W3.50GHz6MBR01/9/2017
LGA1151Intel Core i56600T35W2.70GHz6MBR01/9/2017
LGA1151Intel Core i5740065W3.00GHz6MB01/9/2017
LGA1151Intel Core i57400T35W2.40GHz6MB01/9/2017
LGA1151Intel Core i5750065W3.4GHZ6MB01/9/2017
LGA1151Intel Core i57500T35W2.70GHz6MB01/9/2017
LGA1151Intel Core i5760065W3.50GHz6MB01/9/2017
LGA1151Intel Core i57600K91W3.8GHz6MB01/9/2017
LGA1151Intel Core i57600T35W2.80GHz6MB01/9/2017
LGA1151Intel Core i3610047W3.70GHz3MBS01/9/2017
LGA1151Intel Core i36100T35W3.20GHz3MBS01/9/2017
LGA1151Intel Core i3630047W3.80GHz4MBS01/9/2017
LGA1151Intel Core i3632047W3.90GHz4MBS01/9/2017
LGA1151Intel Core i3710051W3.9GHz3MS01/9/2017
LGA1151Intel Core i3730051W4.0GHz4MS01/9/2017
LGA1151Intel Core i3732051W4.1GHz4MS01/9/2017
LGA1151Intel PentiumG390047W2.80GHz2MBS01/9/2017
LGA1151Intel PentiumG3900T35W2.60GHz2MBS01/9/2017
LGA1151Intel PentiumG392047W2.90GHz2MBS01/9/2017
LGA1151Intel PentiumG393051W2.9GHz2MS01/9/2017
LGA1151Intel PentiumG395051W3.0GHz2MS01/9/2017
LGA1151Intel PentiumG440047W3.30GHz3MBS01/9/2017
LGA1151Intel PentiumG4400T35W2.90GHz3MBS01/9/2017
LGA1151Intel PentiumG450047W3.50GHz3MBS01/9/2017
LGA1151Intel PentiumG4500T35W3.00GHz3MBS01/9/2017
LGA1151Intel PentiumG452047W3.60GHz3MBS01/9/2017
LGA1151Intel PentiumG456054W3.5GHz3MB01/9/2017
LGA1151Intel PentiumG460051W3.6GHz3MS01/9/2017
LGA1151Intel PentiumG462051W3.7GHz3MS01/9/2017
