ECS B350AM4-M2 V1.0A AMD AM4 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs B350am4-M2 V1.0A Amd Am4 Motherboard
  Enlarge
Ecs B350am4-M2 V1.0A Amd Am4 Motherboard
Ecs B350am4-M2 V1.0A Amd Am4 Motherboard
Ecs B350am4-M2 V1.0A Amd Am4 Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBB350AM4M2V10A
Brand Ecs - Elitegroup
Model B350AM4-M2 V1.0A
Category Amd Socket Am4 Motherboard
Condition New Open Box

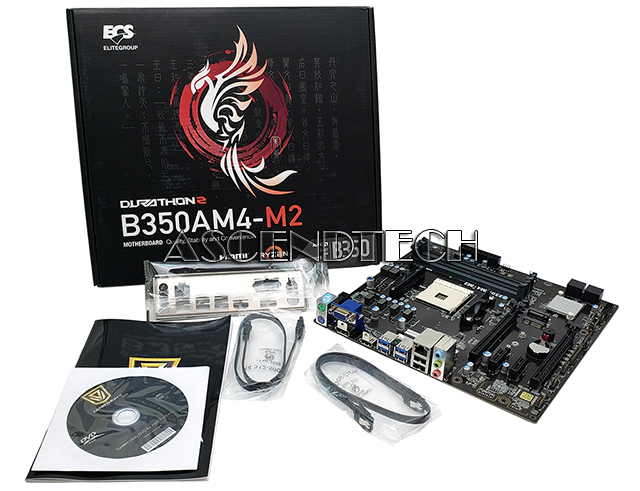

Condition Description Please Note, Motherboard comes with I/O Panel, 2x SATA Cables, Manuals, and System Utility DVD.

Description

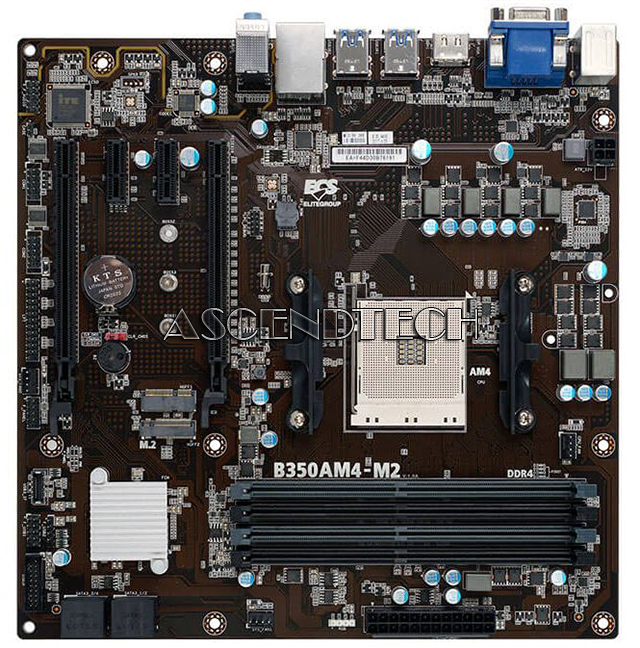

ECS B350AM4-M2 V1.0A AMD Chipset B350 Socket AM4 DDR4 SATA3 6GB/S Micro ATX Motherboard.

ECS Model Number: B350AM4-M2 V1.0A
Includes: I/O Panel, 2 SATA Cables, and System Utility DVD.







Features:

Windows 10 Workable support
2-Way multi-graphics solution
Supports 3 independent displays
6 Phase Power Design
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
Dual Display design for multiple output support
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Supports Display Port 1.2 Technology
Supports AMD Dual Graphics Technology
ECS Intelligent EZ Utility : eBLU, eDLU, eSF







CPUSupports AMD AM4 socket for AMD Ryzen processors and 7th Gen A-series / Athlon Processors
4+2 Phase Thermal Design Power
100% Solid capacitor design
Please refer to CPU support list for details
CHIPSETAMD B350
GRAPHICSSupports DirectX 12
Supports HDMI 1.4a & Premium Audio
Supports DP 1.2
Supports AMD Dual Graphics
MEMORYDual-channel DDR4 Memory architecture
Supports DDR4 2667/2400 non-ECC, Un-buffered SDRAM Memory
4 X 288-pin DDR4 DIMM socket
Support up to 64 GB*
* Due to AMD CPU spec limitation, please refer to Memory QVL for more information.
EXPANSION SLOT1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X16 Gen 2.0 slot(s)
runs at x2
2 X PCI Express X 1 Gen 2.0 slot(s)
Supports AMD CrossFire Technology
1 X M.2 slot for SSD
For 2260/2280 SATA/PCIE X2 SSD
1 X M.2 slot for WiFi/BT PCIe Gen 2
STORAGESupport by AMD B350 Express Chipset
4 X Serial ATAIII 6Gb/s
RAID0, RAID1,RAID10 configuration
AUDIO6-Channel HD audio CODEC
Compliant with HD audio specification
Realtek ALC662
Realtek ALC662 6-channel High Definition audio CODEC
Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
Emulation of 26 sound environments to enhance gaming experience
Voice Cancellation and Key Shifting in Karaoke mode
Compatible with Direct Sound 3D, A3D, I3DL2
LANRTL 8111GN Gigabit Fast Ethernet Controller
Wake-On-LAN
USBSupport by B350 Express Chipset
6 X USB3.1 Gen1 port(s) up to 5Gb/s
Back Panel 4 port(s)
Onboard 2 port(s)
5 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
Onboard 3 port(s)

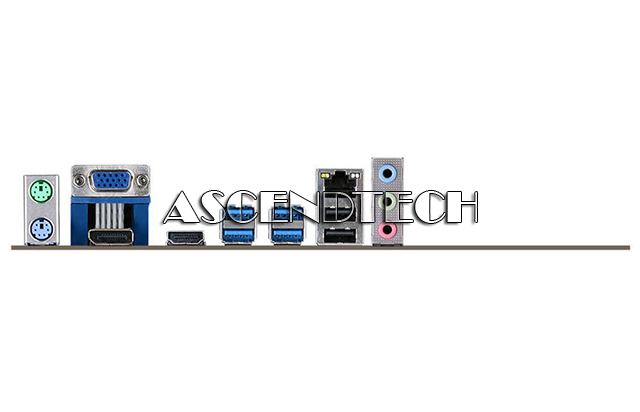

REAR PANEL I/O1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
1 X Display port
4 X USB3.1 Gen1 port(s)
2 X USB2.0 port(s)
CONNECTORS AND HEADERS1 X 24-pin ATX Power Supply connector
1 X 4-pin Power Connector for Graphics
1 X 4-pin CPU_FAN connector
1 X 4-pin SYS_FAN connector
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Onboard Buzzer
1 X USB3.1 Gen2 port(s) up to 10Gb/s
Support additional 2 USB ports
1 X USB 3.1 Gen1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 3 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
2 X Serial port header (COM)
1 X Parallel port header (LPT)
SYSTEM BIOSAMI BIOS with 128 MB SPI Flash ROM
F7 hot key for boot up devices option
Dual Display
Support ECS EZ BIOS
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey
FORM FACTORmATX Form Factor
244mm(W) x 244mm(H)








SocketFamilyProcessorWattageFrequencyCacheSteppingSince BIOS
Socket AM4MatisseRyzen 5 360065W3.60GHz32MB\6/21/2019
Socket AM4MatisseRyzen 5 360065W3.60GHz32MB\6/21/2019
Socket AM4MatisseRyzen 5 3600X95W3.80GHz32MB\6/21/2019
Socket AM4MatisseRyzen 7 3700X95W3.60GHz32MB\6/21/2019
Socket AM4PicassoAthlon 300GE35W3.40GHz4MBB16/21/2019
Socket AM4PicassoAthlon 300GE35W3.40GHz4MBB16/21/2019
Socket AM4PicassoAthlon 320GE35W3.50GHz4MBB16/21/2019
Socket AM4PicassoRyzen 3 3200G65W3.60GHz4MBB16/21/2019
Socket AM4PicassoRyzen 3 3200G65W3.60GHz4MBB16/21/2019
Socket AM4PicassoRyzen 3 3200GE35W3.30GHz4MBB16/21/2019
Socket AM4PicassoRyzen 3 3200GE35W3.30GHz4MBB16/21/2019
Socket AM4PicassoRyzen 5 3400G65W3.70GHz4MBB16/21/2019
Socket AM4PicassoRyzen 5 3400G65W3.70GHz4MBB16/21/2019
Socket AM4PicassoRyzen 5 3400GE35W3.30GHz4MBB16/21/2019
Socket AM4PicassoRyzen 5 3400GE35W3.30GHz4MBB16/21/2019
Socket AM4Pinnacle RidgeRyzen 3 2300X65W3.50GHz8MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 5 2500X65W3.60GHz8MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 5 260065W3.40GHz16MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 5 2600E45W3.10GHz16MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 5 2600X95W3.60GHz16MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 5 PRO 260065W3.40GHz16MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 7 270065W3.20GHz16MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 7 2700E45W2.80GHz16MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 7 PRO 270065W3.20GHz16MBB26/21/2019
Socket AM4Pinnacle RidgeRyzen 7 PRO 2700X95W3.60GHz16MBB26/21/2019
Socket AM4Raven RidgeAthlon 200GE35W3.20GHz4MBB06/21/2019
Socket AM4Raven RidgeAthlon 200GE35W3.20GHz4MBB06/21/2019
Socket AM4Raven RidgeAthlon 200GE35W3.20GHz4MBB06/21/2019
Socket AM4Raven RidgeAthlon 220GE35W3.40GHz4MBB06/21/2019
Socket AM4Raven RidgeAthlon 220GE35W3.40GHz4MBB06/21/2019
Socket AM4Raven RidgeAthlon 240GE35W3.50GHz4MBB06/21/2019
Socket AM4Raven RidgeAthlon 240GE35W3.50GHz4MBB06/21/2019
Socket AM4Raven RidgeAthlon PRO 200GE35W3.20GHz4MBB06/21/2019
Socket AM4Raven RidgeRyzen 3 2200G65W3.50GHz4MBB06/21/2019
Socket AM4Raven RidgeRyzen 3 2200GE35W3.20GHz4MBB06/21/2019
Socket AM4Raven RidgeRyzen 3 PRO 2200G65W3.50GHz4MBB06/21/2019
Socket AM4Raven RidgeRyzen 5 2400G65W3.60GHz4MBB06/21/2019
Socket AM4Raven RidgeRyzen 5 2400GE35W3.20GHz4MBB06/21/2019
Socket AM4Raven RidgeRyzen 5 PRO 2400G65W3.60GHz4MBB06/21/2019
Socket AM4Raven RidgeRyzen 5 PRO 2400GE35W3.20GHz4MBB06/21/2019
Socket AM4Summit RidgeRYZEN 365W3.40GHz8MBB15/11/2017
Socket AM4Summit RidgeRYZEN 3 120065W3.10GHz8MBB15/11/2017
Socket AM4Summit RidgeRYZEN 3 PRO65W3.40GHz8MBB15/11/2017
Socket AM4Summit RidgeRYZEN 3PRO 120065W3.10GHz8MBB15/11/2017
Socket AM4Summit RidgeRYZEN 5 140065W3.20GHz8MBB15/11/2017
Socket AM4Summit RidgeRYZEN 5 1500X65W3.50GHz16MBB15/11/2017
Socket AM4Summit RidgeRYZEN 5 160065W3.20GHz16MBB15/11/2017
Socket AM4Summit RidgeRYZEN 7 170065W3.00GHz16MBB15/11/2017
Socket AM4Summit RidgeRYZEN 7 1700X95W3.40GHz16MBB15/11/2017
Socket AM4Summit RidgeRYZEN 7 1800X95W3.60GHz16MBB15/11/2017
Socket AM4Summit RidgeRYZEN 7PRO 170065W3.00GHz16MBB15/11/2017
Socket AM4Summit RidgeRyzen 3 1300X65W3.50GHz8MBB16/21/2019
Socket AM4Summit RidgeRyzen 3 PRO 130065W3.50GHz8MBB16/21/2019
Socket AM4Summit RidgeRyzen 5 PRO 150065W3.50GHz16MBB16/21/2019
Socket AM4Summit RidgeRyzen 5 PRO 160065W3.20GHz16MBB16/21/2019
Socket AM4Bristol RidgeA10 970065W3.50GHz2MBA15/11/2017
Socket AM4Bristol RidgeA10 9700E35W3.00GHz2MBA15/11/2017
Socket AM4Bristol RidgeA12 980065W3.80GHz2MBA15/11/2017
Socket AM4Bristol RidgeA12 9800E35W3.10GHz2MBA15/11/2017
Socket AM4Bristol RidgeA6 950065W3.50GHz1MBA15/11/2017
Socket AM4Bristol RidgeA6 9500E35W3.00GHz1MBA15/11/2017
Socket AM4Bristol RidgeA8 960065W3.10GHz2MBA15/11/2017
Socket AM4Bristol RidgeAthlon X4 95065W3.5GHz2MBA18/16/2017
